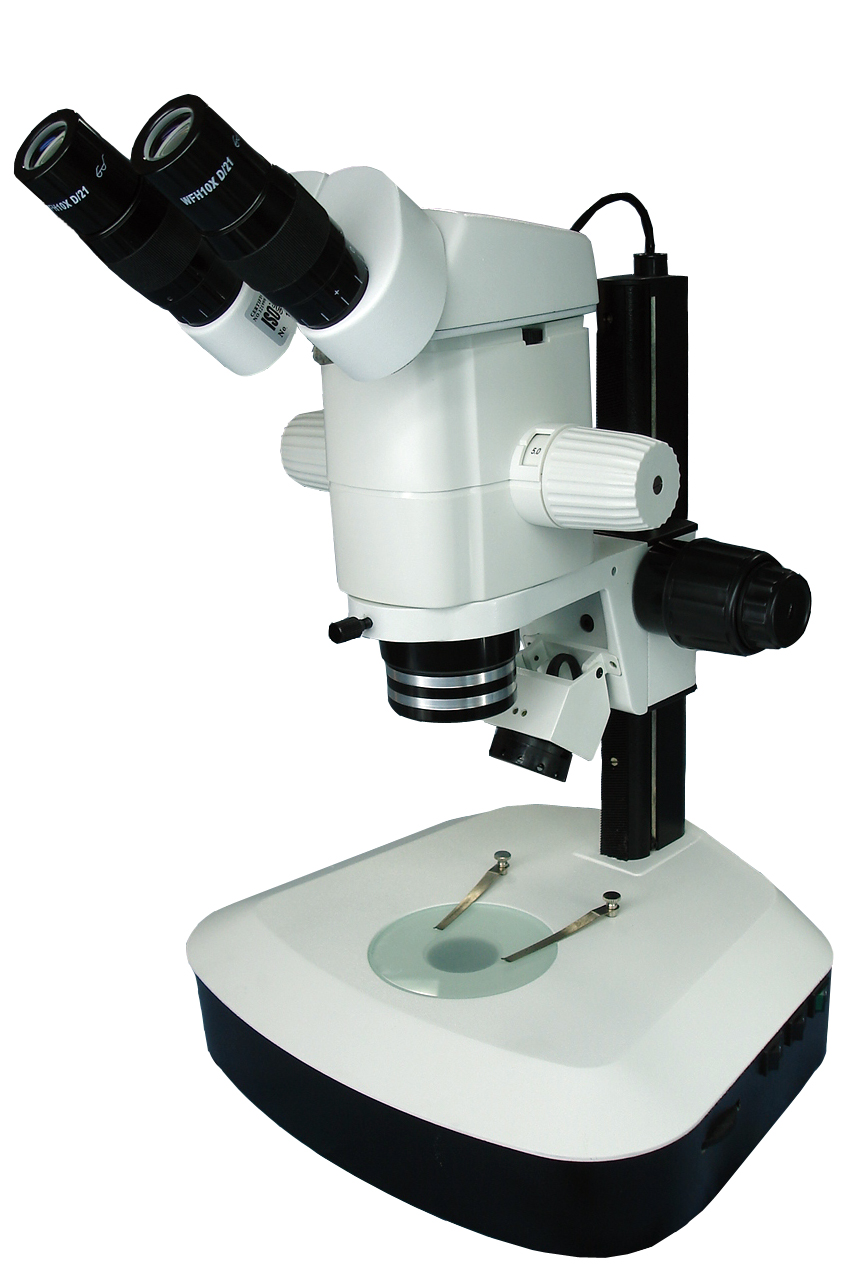

Stereo Zoom Microscope SM-3241
The SM-3241 stereo zoom microscope features two parallel beam paths and a high quality optic system to offer high resolution and distortion-free contrast images throughout its entire zoom range. Its modular design allows for various packages with high resolution and valuable microscopy.
Technical Specifications
Overview
Professional Stereo Zoom Microscopy
The SM-3241 is a high-precision stereo zoom microscope utilizing a parallel beam path optical system. Designed for versatility, it features a generous zoom ratio and robust modular construction suitable for laboratory research, electronics inspection, and material science. With integrated dual-illumination and precise focusing capabilities, this instrument delivers clear, distortion-free images for demanding professional tasks.
Optical Performance
Key Optical Metrics
6.2 x
Min Magnification
50 x
Max Magnification
8 :1
Zoom Ratio
80 mm
Working Distance
- Zoom Objective Range
- 0.62x - 5x
- Eyepiece Specifications
- WFH10X-D/21High eye pointWide-fieldDistortion-free
Technical Specs
Illumination System
| Type | Specification |
|---|---|
| Top Light | Halogen 6V/15W |
| Bottom Light | Fluorescent 5W |
- Dioptric Correction
- +5 to -5
- Interpupillary Distance
- 50mm - 75mm
Mechanical Design
Optional Accessories
- 0.5x Planachromatic objective
- WF20x Eyepieces
- WF25x Eyepieces
- Trinocular head for camera connection
- Base Dimensions
- 335mm x 305mm x 21mm
