Stepper Motor - 24V, 3.75° Step Angle
This stepper motor is designed for precise motion control applications. It features a metal housing, mounting flange, and a PCB with a connector for easy integration.

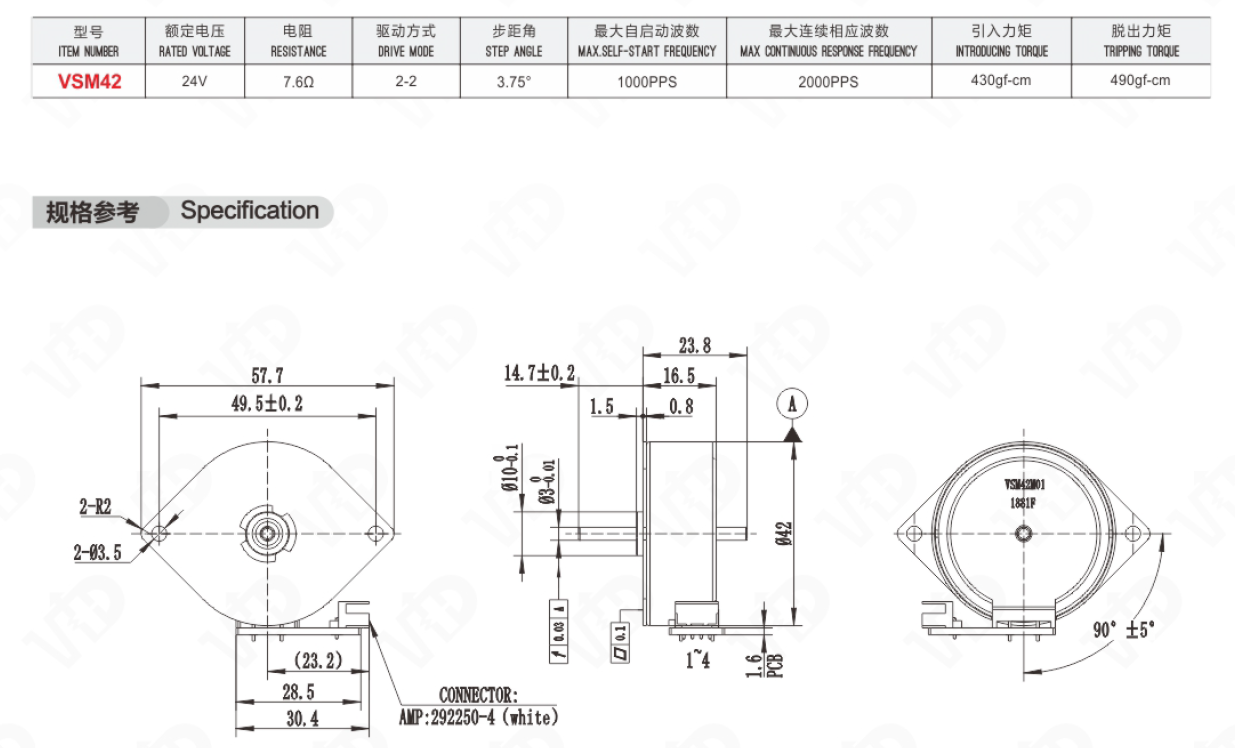

Technical Specifications
Overview
VSM42 Stepper Motor
The VSM42 is a high-precision stepper motor engineered for reliable motion control in diverse automation and robotics environments. Operating at a rated voltage of 24V, it features a 3.75° step angle and a robust metallic construction for consistent performance. The unit is designed for seamless integration with an integrated PCB and a quick-connect AMP:292250-4 connector.
Electrical Specifications
- Rated Voltage
- 24 V
- Resistance
- 7.6 Ω
- Drive Mode
- 2-2
Performance Metrics
Operational Performance
3.75 °
Step Angle
1,000 PPS
Max Self-Start Frequency
2,000 PPS
Max Continuous Response Frequency
Torque Specifications
| Type | Force |
|---|---|
| Introducing Torque | 430 gf-cm |
| Tripping Torque | 490 gf-cm |
Physical and Integration
- Connector Type
- AMP:292250-4 (White)
- Design Features
- Metal HousingMounting FlangePCB IntegratedCompact Design
