Compact Stepper Motor for Precision Motion Control
This compact stepper motor is designed for precision motion control applications. Its small size and efficient design make it suitable for use in robotics, automation, and other precision engineering projects.

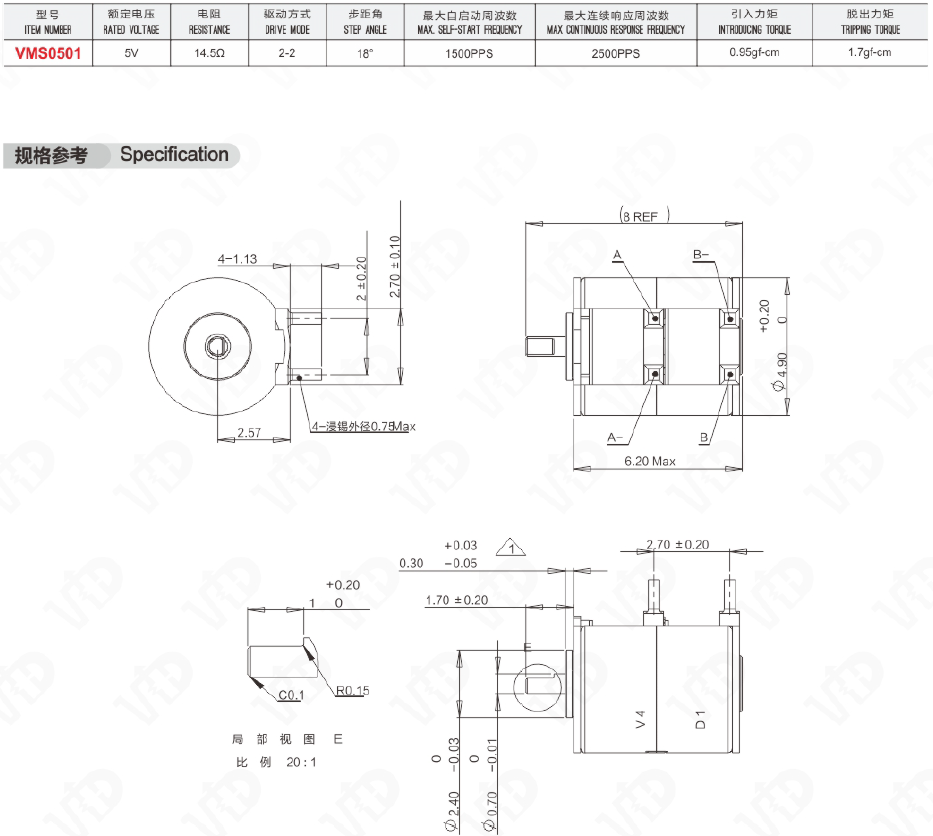

Technical Specifications
Overview
Compact Precision Motion Control
The VSM05 stepper motor is engineered for high-precision motion control applications where space is a critical constraint. Featuring an 18-degree step angle and a robust design, it is ideally suited for robotics, automated systems, and intricate engineering projects. This unit delivers consistent torque output and efficient frequency response, ensuring reliable operation across demanding industrial or research environments.
Electrical Specifications
- Rated Voltage
- 5 V
- Resistance
- 14.5 Ω
Performance Metrics
Operational Frequencies
1,500 PPS
Max Self-Start Frequency
2,500 PPS
Max Continuous Response Frequency
- Step Angle
- 18 °
- Drive Mode
- 2-2
Torque Characteristics
Torque Output
| Metric | Value |
|---|---|
| Introducing Torque | 0.95 gf-cm |
| Tripping Torque | 1.7 gf-cm |
