Technical Specifications
Overview

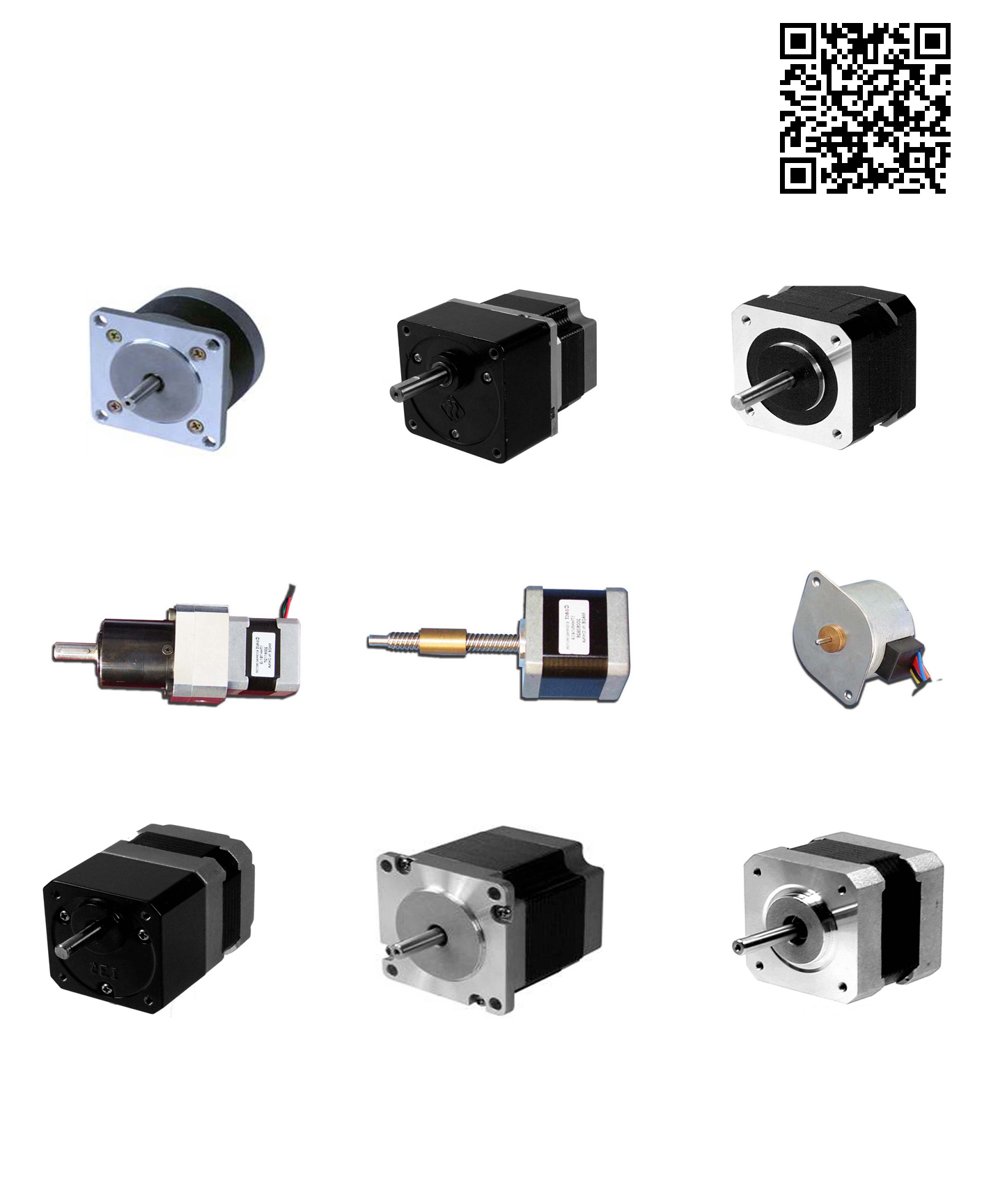

High-Precision Stepper Motors
These hybrid stepping motors are engineered for applications requiring precise angular movement and accurate positioning, such as robotics, CNC machines, and 3D printers. Featuring a robust design, they offer consistent performance across various industrial automation environments. Available in multiple configurations including standard and lead-screw options, these motors are highly adaptable to specific mechanical requirements.
Technical Specifications
- Step Angle Accuracy
- ± 5% (full step, no load)
- Resistance Accuracy
- ± 10%
- Inductance Accuracy
- ± 20%
- Insulation Class
- B
Environmental Performance
- Temperature Rise
- 80 °C
- Ambient Temperature Range
- -10°C to +50°C
Mechanical Characteristics
- Shaft Radial Play (450g load)
- 0.06 mm
- Shaft Axial Play (450g load)
- 0.08 mm
Customization
- Modification Options
- Special LengthCustom WindingsCustom Bearings & ThreadsFlat ShaftPinion ShaftKeyway ShaftCustom Lead Wire Length/Color/Type
