Miniature Stepper Motor with Lead Screw
This miniature linear actuator is driven by a stepper motor. It incorporates a lead screw mechanism to achieve precise linear motion.
Technical Specifications
General Overview
VSM08 Precision Linear Actuator
The VSM08 is a high-precision miniature stepper motor equipped with a specialized lead screw mechanism for accurate linear positioning. Designed with a compact form factor, it features stable guide rods and a robust mounting plate for reliable operation in space-constrained applications. It supports multiple voltage configurations and provides consistent performance with a defined 18-degree step angle and clockwise rotation.
Performance Metrics
Key Operating Metrics
18 deg
Step Angle
2,000 PPS
Max Response Freq
0.4 mm
Lead Screw Pitch
Technical Specifications
Model Configuration Table

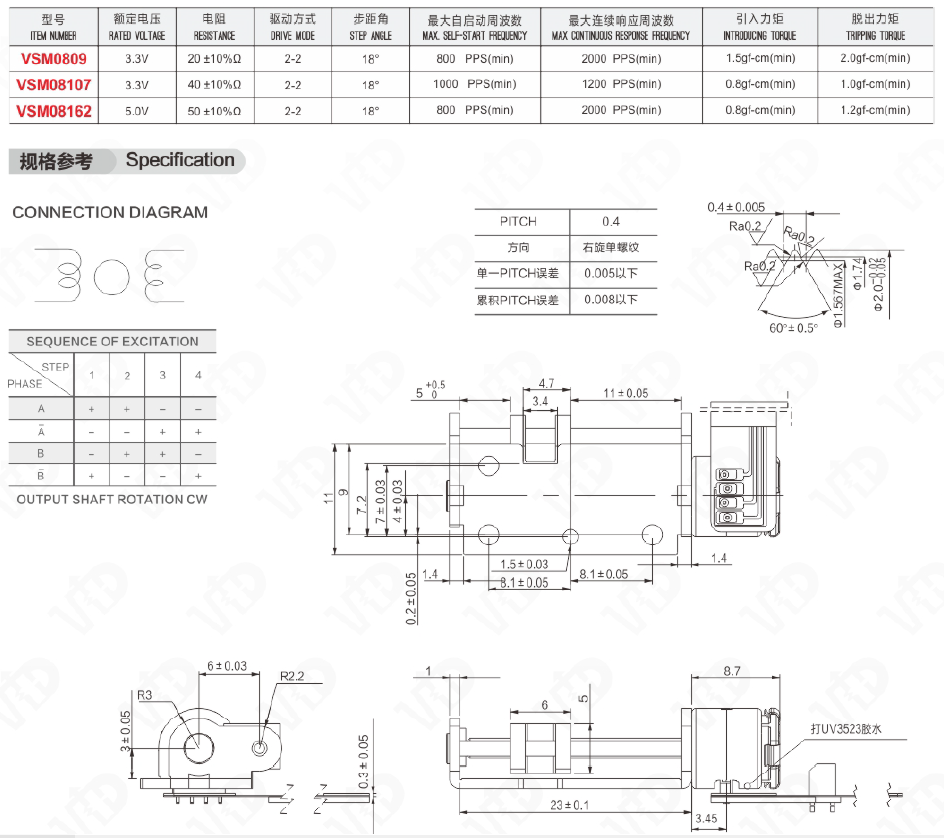

| Model | Voltage | Resistance | Self-Start Freq |
|---|---|---|---|
| VSM0809 | 3.3V | 20 ±10%Ω | 800 PPS |
| VSM08107 | 3.3V | 40 ±10%Ω | 1000 PPS |
| VSM08162 | 5.0V | 50 ±10%Ω | 800 PPS |
Mechanical Design
- Precision Features
- Clockwise RotationSingle Lead ScrewHigh PrecisionCompact Design
