Technical Specifications
Overview
Versatile Steel Drum Manufacturing Solutions

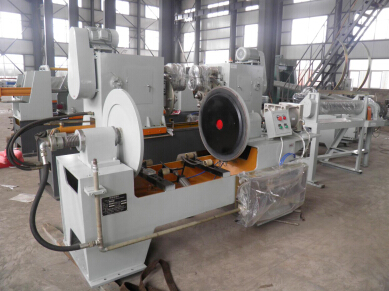

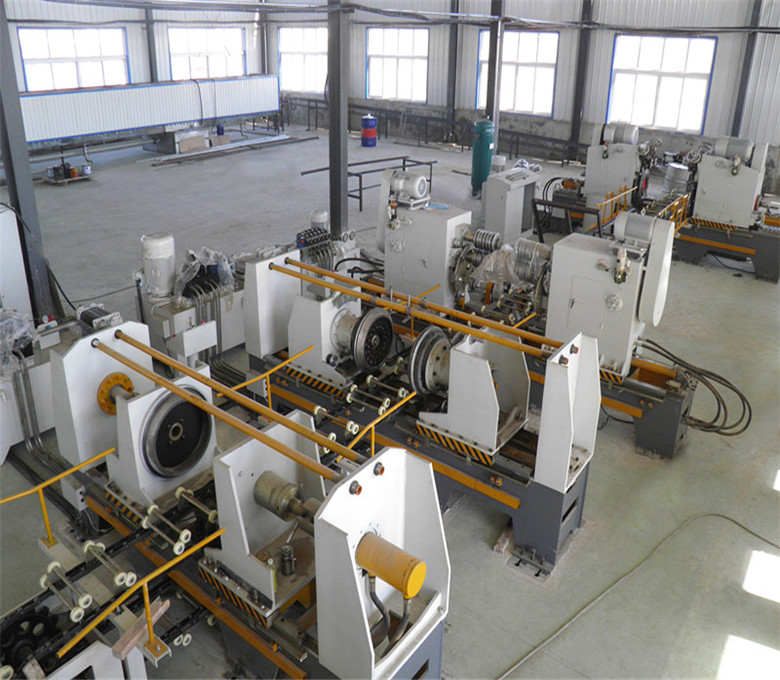

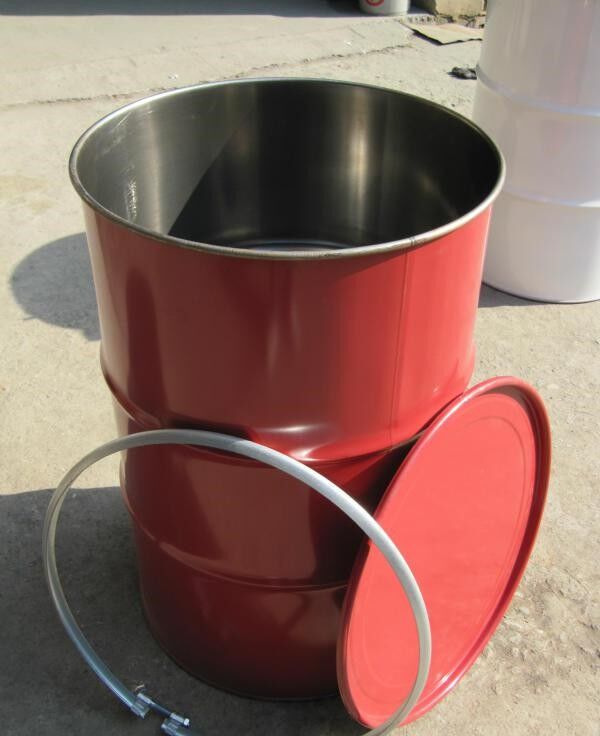

Our steel drum production lines are engineered for high-efficiency manufacturing of 100L to 220L drums, catering to the oil, chemical, food, and beverage industries. We offer scalable solutions ranging from low-speed (1-2 pcs/min) to high-speed (7-8 pcs/min) configurations to meet diverse production requirements. The system is capable of producing various drum types, including closed, open, conical, and bituminous drums, ensuring maximum operational flexibility.
- Target Industries
- Petroleum/OilChemicalFood & BeverageIndustrial Liquids
Production Capacity
Available Line Speeds
2 pcs/min
Low Speed Max
6 pcs/min
Medium Speed Max
8 pcs/min
High Speed Max
Material Consumption Guide
| Plate Thickness (mm) | Finished Drums (pcs/T) | Unit Weight (kg/pc) |
|---|---|---|
| 1.2 | 41 | 21.5 |
| 1 | 50 | 18 |
Drum Specifications

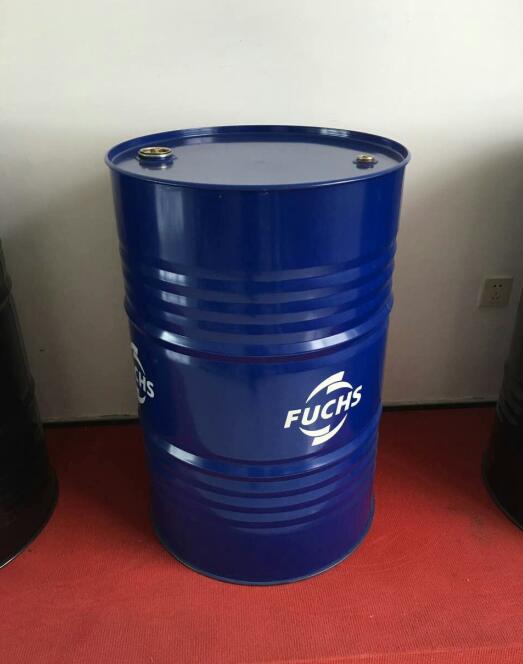

Standard 216.5L Drum Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter | 571.5 mm |
| Outside Diameter | 585 mm |
| Total Height | 897 mm |
| Material Thickness | 0.8 - 1.2 mm |
| Weight | 16 - 18 kg |
| Corrugations | 6 - 10 |
Material & Coating
Finishing Specifications
- Outside painting: Nitro bake paint
- Minimum paint thickness: 18 micron
- Color options: Single or multicolor
- Compatible Materials
- SPCC Steel PlateCold-rolled Sheet
Technical Features
Drum Components & Openings
- Dual closures
- One 3/4 inch top hole
- One 2 inch top hole
Compliance
Quality & Safety Standards
ISO 9001:2008CEMachinery Directive 2006/42/ECSGS Certified
