Technical Specifications

Product Overview

High-Performance Washdown Solution

This stainless steel electric motor is engineered for reliability in highly corrosive and hygienic environments. Featuring an IP69-rated smooth exterior, it is perfectly suited for food processing and packaging applications where frequent, high-pressure washdowns are required. The design supports both NEMA and IEC dimension standards, providing versatile integration for global industrial systems.

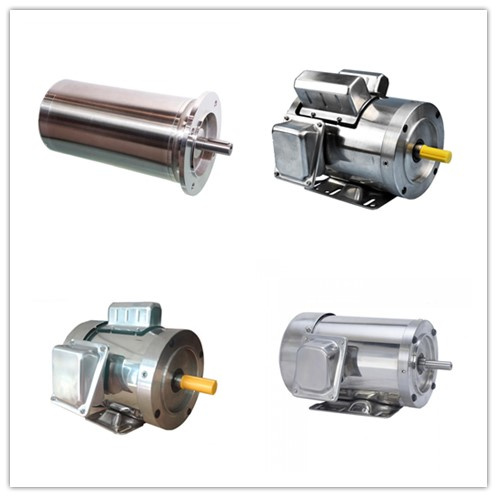

Stainless steel washdown motor in a clean environment

Technical Specifications

Available Poles

2
4
6
8

Power Range: 1/4HP to 30HP
Frame Standards: IEC 63-90NEMA 56NEMA 140T-280
Phase Configuration: Single or Three phase
Voltage Rating: (208-230) 230/460V

Environmental & Protection

Protection Rating

IP69

Cooling Method: TENV or TEFC
Ambient Temperature Range: -15 to +40 °C
Housing Material: Stainless Steel 304
Mounting Configurations: B3B5B14B34B35

Compliance

Certifications: ULCE

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

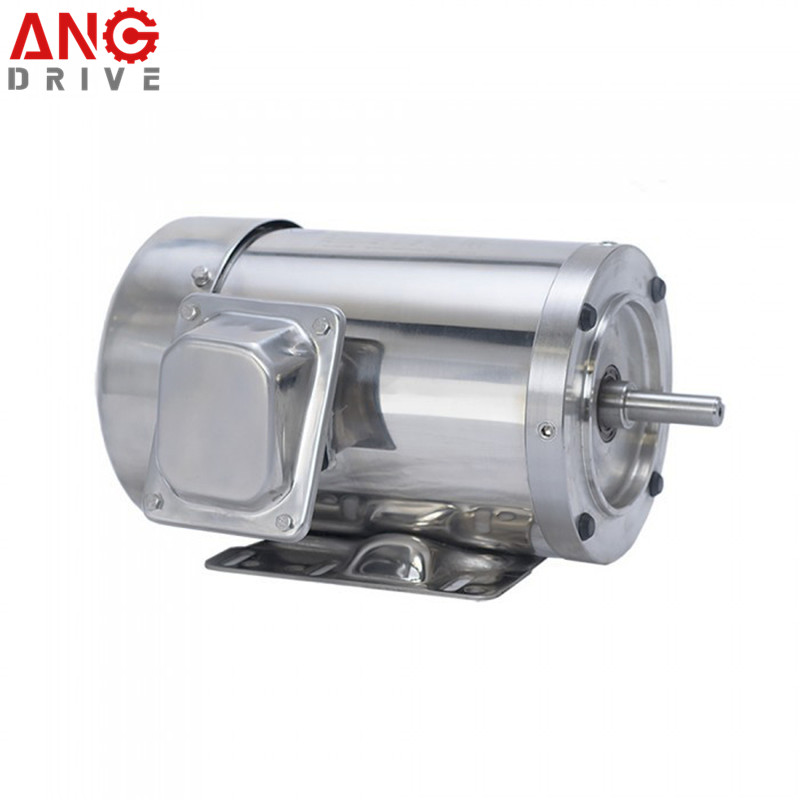

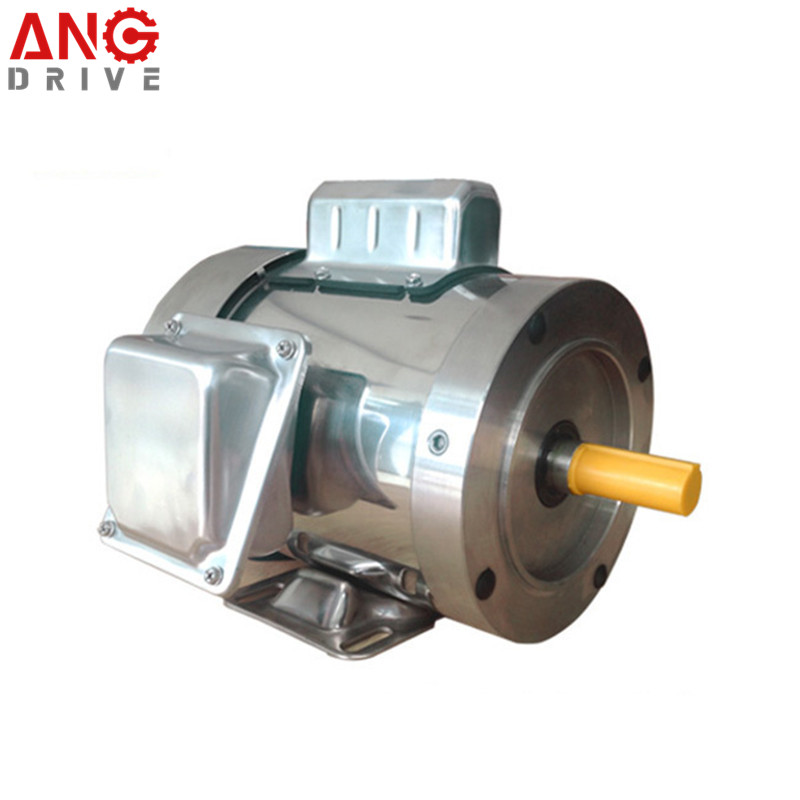

Stainless Steel Washdown Electric Motor

This AC electric motor is constructed from stainless steel for durability in demanding washdown environments. It is UL approved and NEMA compliant, offering reliable performance with IP69-rated waterproof protection.

Request a Quote Download PDFPDF

Stainless Steel Washdown Electric Motor - Image 1
