Single-Phase Heavy-Duty Electric Motor
This single-phase electric motor is designed for heavy-duty use in small machine tools and water pumps. Meeting IEC standards, it features robust construction for reliable performance.
Technical Specifications
Product Overview
Robust Single-Phase Performance

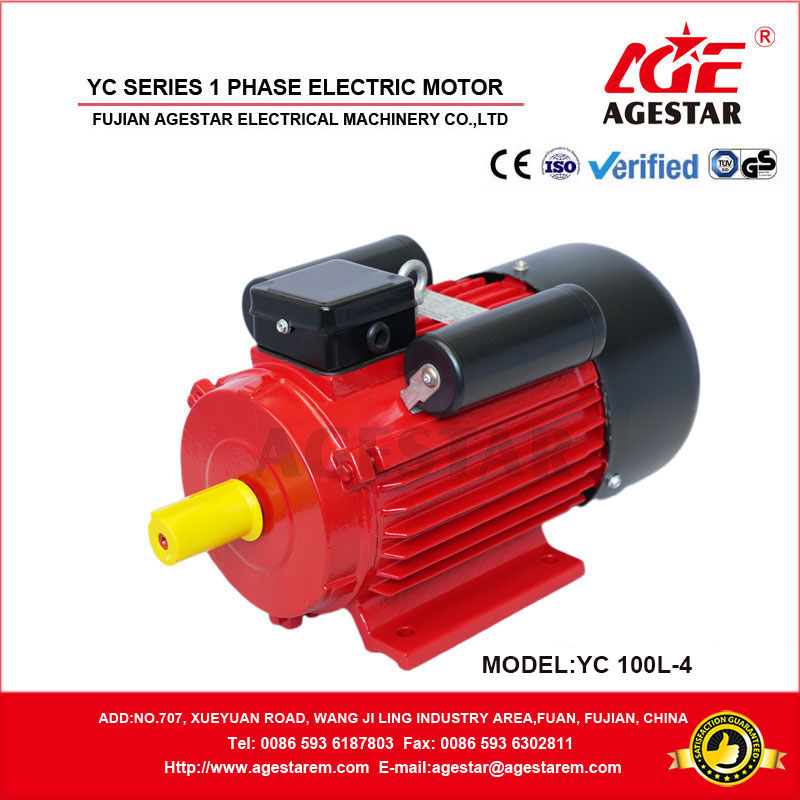

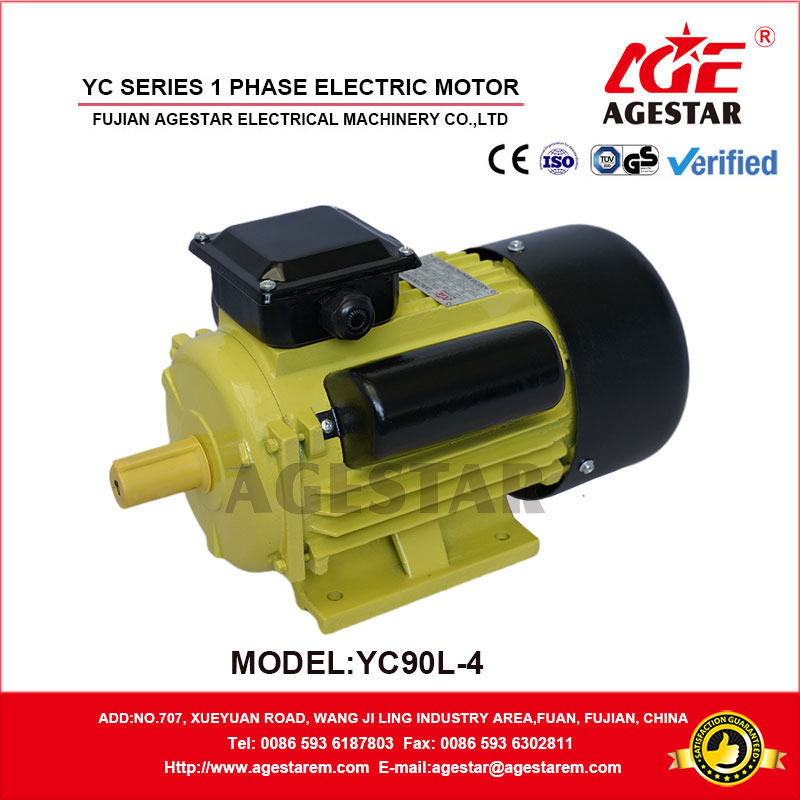

The YC series heavy-duty single-phase motor is engineered for reliable operation in small machine tools and water pumps. Featuring a totally enclosed fan-cooled (TEFC) design, it delivers excellent performance with high starting torque and efficient, smooth operation. Built to meet stringent international standards, it is an ideal power solution for workshops requiring high-quality single-phase power integration.
Technical Specifications
- Protection Class
- IP44 Totally Enclosed Fan-Cooled (TEFC)
- Certifications
- CEISOGS Verified
Operating Conditions
- Ambient Temperature
- -15°C to 40°C
- Maximum Operating Altitude
- 1000 m
Performance Data
Starting Torque Ratio
3 x Rated
50Hz Starting Torque
2.75 x Rated
60Hz Starting Torque
Standard Models Overview
| Model | Power (HP) | Power (kW) | Speed (RPM) | Efficiency (%) | Weight (kg) |
|---|---|---|---|---|---|
| YC80A-2 | 0.5 | 0.37 | 2,880 | 62 | 10 |
| YC80B-2 | 0.75 | 0.55 | 2,880 | 65 | 11 |
| YC80C-2 | 1 | 0.75 | 2,880 | 68 | 13 |
| YC90S-2 | 1.5 | 1.1 | 2,880 | 71 | 17 |
| YC90L-2 | 2 | 1.5 | 2,900 | 72 | 22 |
| YC100L-2 | 3 | 2.2 | 2,900 | 74 | 29 |
