Converter-Fed Three-Phase Asynchronous Motor
This converter-fed motor is designed for inverter power supplies. It features IP44 or IP54 protection, IC616 or IC666 cooling, class F insulation, and IMB3 mounting.
Technical Specifications
Product Overview
Professional Converter-Fed Motor Solution

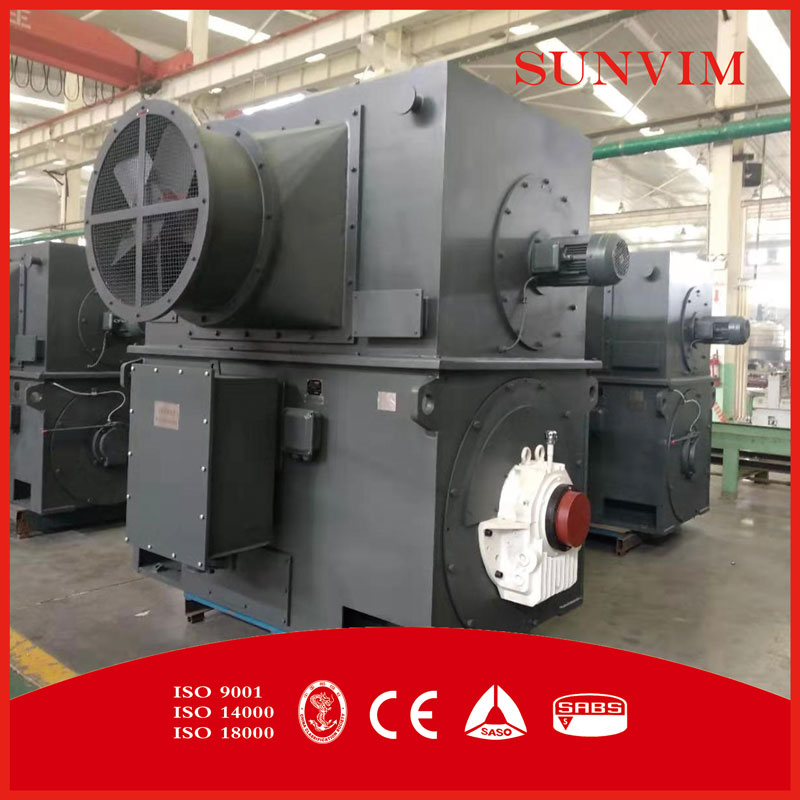

The YPKK series is a high-performance three-phase asynchronous motor specifically engineered for inverter-fed power supply applications. Featuring a robust box-type construction, it provides exceptional rigidity, high efficiency, and reliable operation in demanding industrial environments. These motors are optimized for low noise and vibration, offering versatility across power plants, metallurgy, petrochemical, and mining sectors.
Technical Specifications
Rated Voltage Options
- 380V
- 660V
- 3 kV
- 6 kV
- 10 kV
- Protection Class
- IP44 or IP54
- Cooling Method
- IC616 or IC666
- Insulation Class
- F
- Mounting Arrangement
- IMB3
- Certifications & Standards
- ISO 9001ISO 14000ISO 18000CESASOSABS

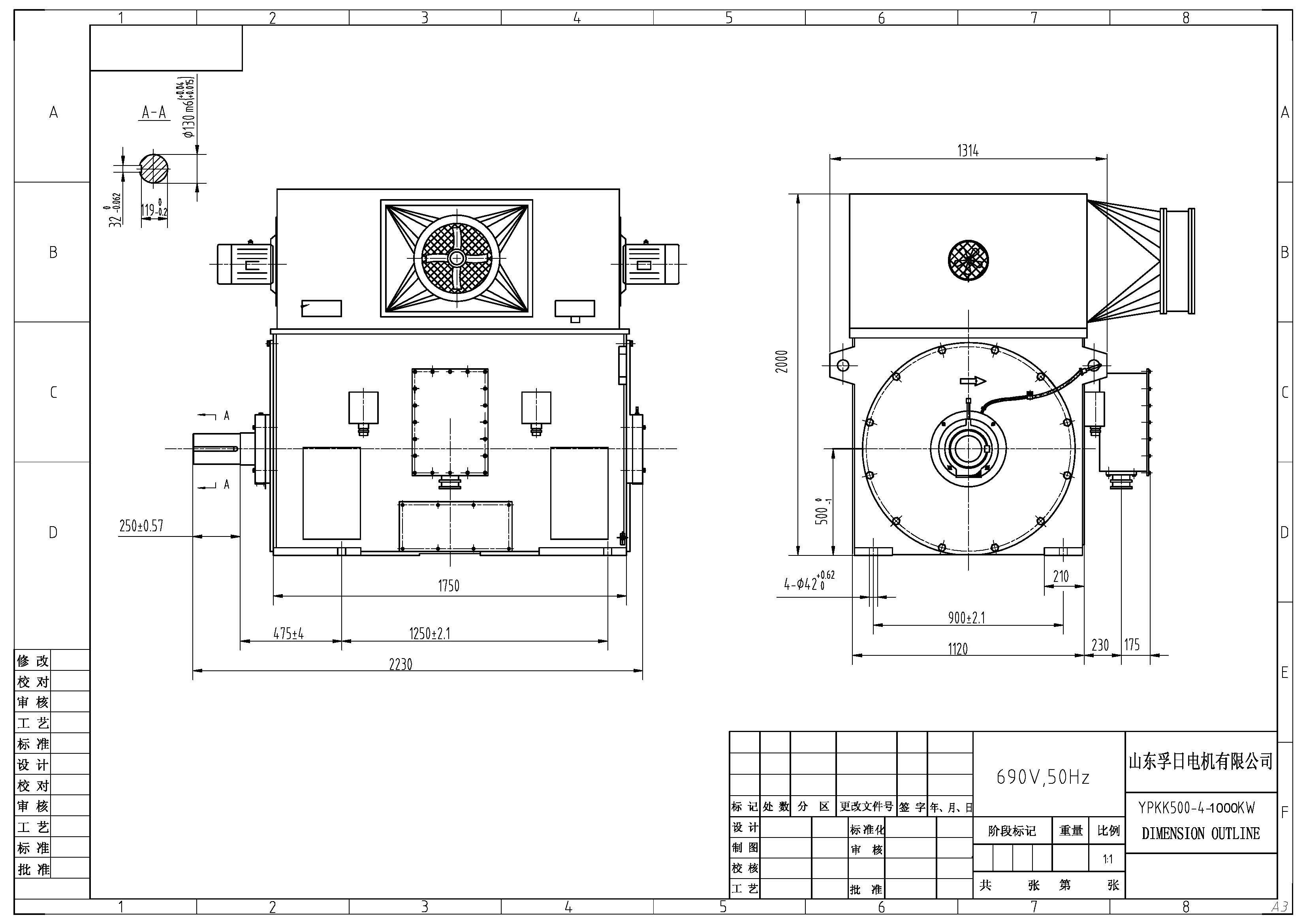

Dimensions & Mechanical
Primary Dimensions
| Attribute | Value |
|---|---|
| Overall Height | 2000mm |
| Width | 2230mm |
| Length | 1314mm |
| Shaft Diameter | 130mm |
| Shaft Length | 119mm |
