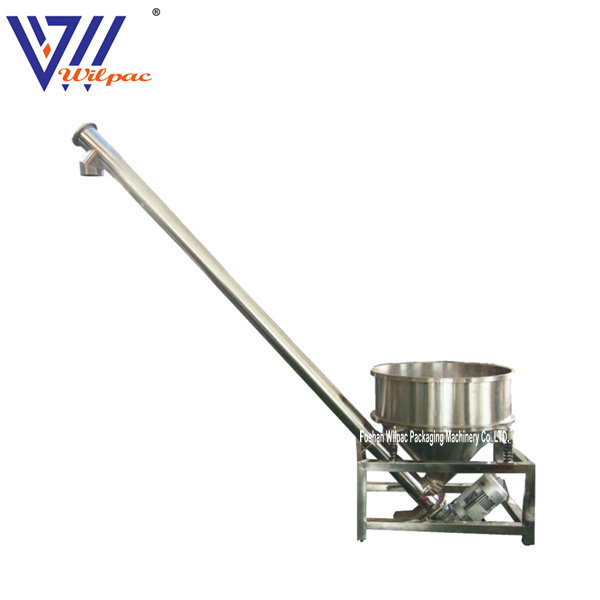

Stainless Steel Vertical Screw Conveyor
This stainless steel screw elevator is designed for vertical conveying of powders, granules, and other bulk materials. It features a tubular screw conveyor, feed hopper, and support frame.
Technical Specifications
Product Overview
Industrial Vertical Screw Conveyor
This stainless steel vertical screw conveyor is designed for the efficient handling and elevation of various powder and granular items. Engineered with a robust 304 stainless steel structure, it ensures hygienic and contamination-free transport suitable for food, pharmaceutical, and chemical environments. The system features a versatile square hopper design and is available in multiple capacities to suit diverse industrial production requirements.
Technical Specifications
- Material
- 304 Stainless Steel
- Conveying Angle
- 45 degrees
- Electrical Requirements
- 380V50/60Hz3-Phase
Model Comparison
Model Specifications
| Model | Hopper Capacity (L) | Height (m) | Feeding Diameter (mm) |
|---|---|---|---|
| WP-F180 | 180 | 2 | 114 / 102 |
| WP-F350 | 350 | 2.4 | 159 / 141 |
| WP-F700 | 700 | 2.6 | 168 / 159 |
| WP-F1000 | 1,000 | 2.8 | 220 |
