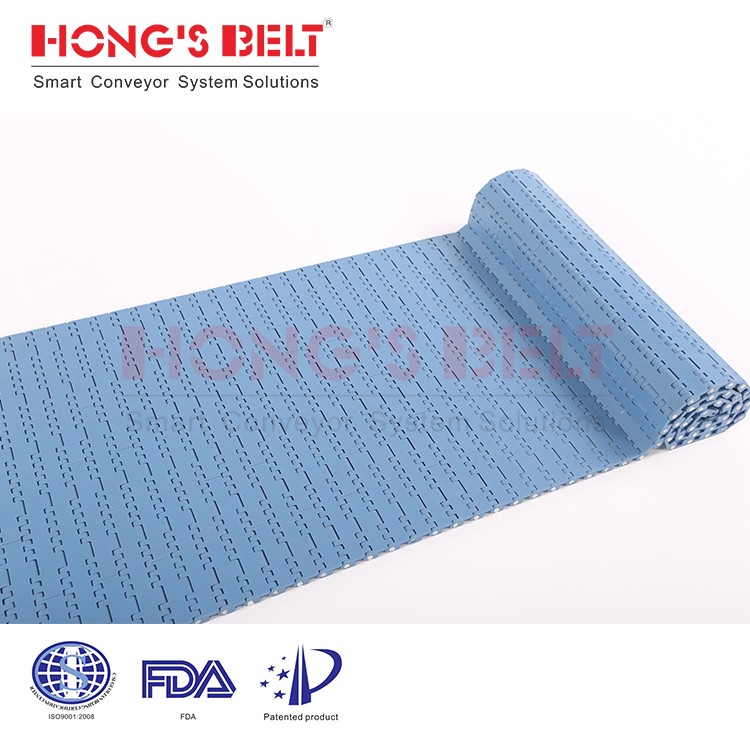

Flat Top Modular Plastic Conveyor Belt
Flat top modular plastic conveyor belts are designed for efficient and reliable material handling. Constructed from durable plastic modules, these belts offer a flat, stable surface for transporting a variety of products.
Technical Specifications
Overview
High-Performance Modular Conveyor Solution
This flat top modular plastic conveyor belt is engineered for versatility and reliability in demanding industrial environments. Featuring a 0% open area design, it provides a stable, continuous surface ideal for food processing, packaging, and general manufacturing applications. Its modular construction allows for easy assembly and maintenance, significantly reducing operational downtime and extending service life compared to traditional belt systems.
Technical Specifications
Maximum Load Capacity
1.2 tons/m²
Max Load
- Pitch
- 25.4 mm
- Thickness
- 12.5 mm
- Minimum Width
- 75 mm
- Rod Diameter
- 5.8 mm
- Open Area
- 0%
- Working Temperature
- -40°C to 260°C
Materials & Compliance
Regulatory Compliance
FDA ApprovedEU Compliant
Available Colors
- White
- Blue
- Gray
- Nature
- Dark-brown
- Available Materials
- PPPOMPEPA
System Compatibility
Sprocket Configuration
| Feature | Specification |
|---|---|
| Sprocket Size | 18T |
| Bore Type | Square and Round |
Configuration Support
| Feature | Supported |
|---|---|
| Flight/Cleat | No |
| Side Guard | No |
| Curve Capability | No |
Applications
Food Industry Applications
- Meat (Beef & Pork)
- Poultry
- Seafood
- Bakery
- Snack Food
- Fruit & Vegetables
Non-Food Industry Applications
- Automotive
- Tire Manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
