Technical Specifications
Product Overview
Split Type LED Tube Light
This high-efficiency split type LED tube light is designed for versatile commercial and residential lighting applications. Featuring a durable T8 form factor and a G13 base, it ensures easy installation and maintenance due to its unique split design. These tubes provide consistent, bright illumination with energy-saving performance and a long operational lifespan of 20,000 hours.

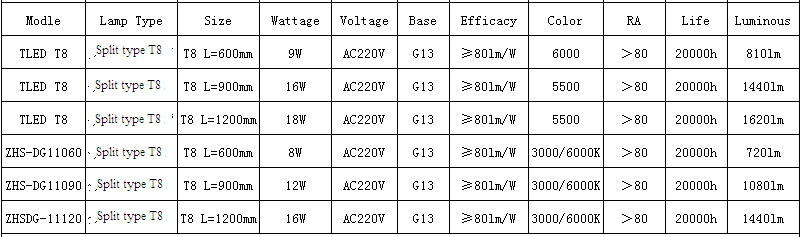

Technical Specifications
Performance Comparison
| Model | Length | Wattage | Luminous Output |
|---|---|---|---|
| TLED T8 | 600mm | 9W | 810lm |
| TLED T8 | 900mm | 16W | 1440lm |
| TLED T8 | 1200mm | 18W | 1620lm |
| ZHS-DG11060 | 600mm | 8W | 720lm |
| ZHS-DG11090 | 900mm | 12W | 1080lm |
| ZHSDG-11120 | 1200mm | 16W | 1440lm |
Electrical Characteristics
220 V
Voltage
80 lm/W
Luminous Efficacy
80 RA
Color Rendering Index
20,000 hours
Lifespan
Key Features
Compatibility
T8 TubeG13 BaseAC220VCommercial/Residential Use
- Product Highlights
- Split DesignEnergy SavingUniform IlluminationEasy Installation
