Six-Side NC Boring Machine
This six-side NC boring machine is designed for precise drilling and boring operations on six sides of a workpiece. It utilizes a numerical control system for automated drilling processes, ensuring accuracy and efficiency in woodworking applications.
Technical Specifications
Overview
High-Efficiency Six-Side NC Boring Center

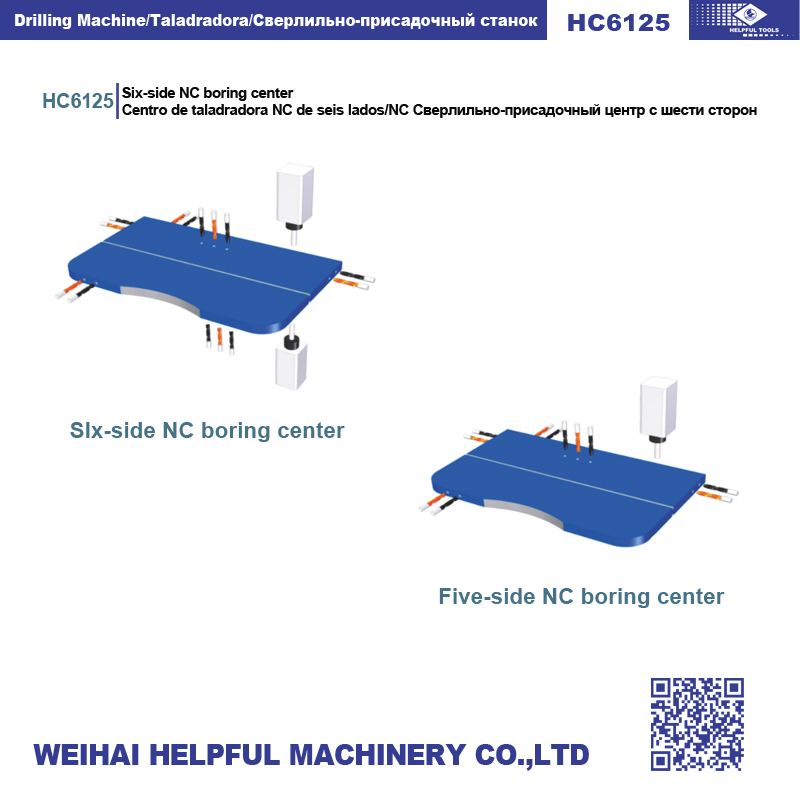

This six-side NC boring center is a precision woodworking machine engineered for high-volume drilling and milling operations. Featuring advanced numerical control technology, it enables efficient multi-sided processing of wooden panels from multiple angles with high accuracy. Designed for industrial applications, the machine provides robust performance for complex drilling and routing tasks.
Performance
Axis Performance
| Axis | Stroke | Max Speed |
|---|---|---|
| X1/X2 | 5900mm | 130m/min |
| Y1/Y2 | 3000mm | 110m/min |
| Y3 | 2000mm | 110m/min |
| Z1/Z2/Z3 | 90mm | 50m/min |
| U | 1500mm | 90m/min |

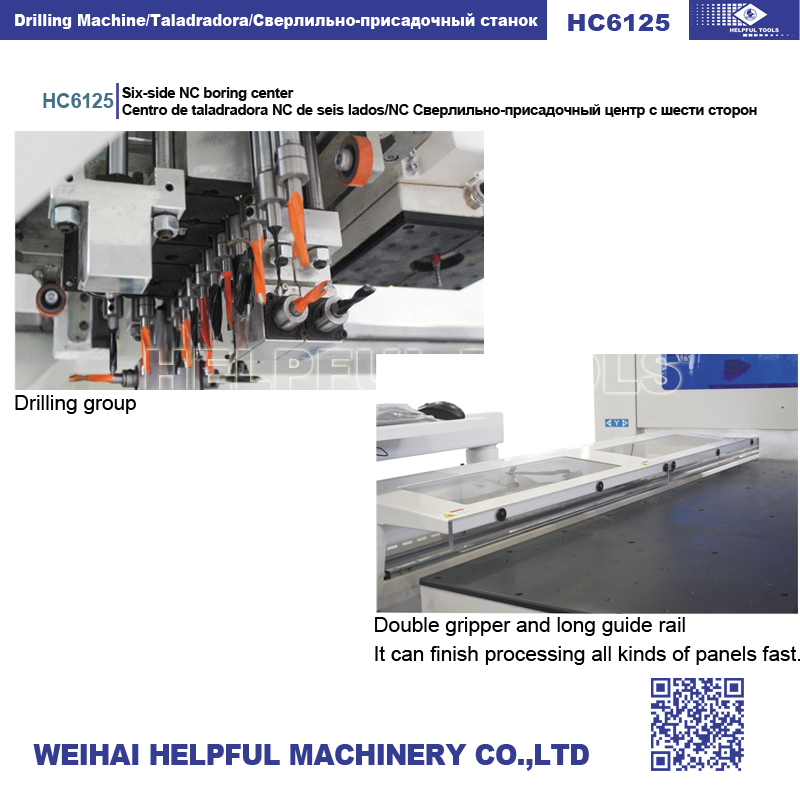

Drilling Unit Configuration
- Up Drilling: 2 chucks, (6X+6Y)*2 vertical spindles, 2.2kw * 2 motors
- Down Drilling: 3*3 vertical spindles, 2.2kw motor
- Horizontal Spindles: (2 left + 2 right + 2 front + 2 back)*2
Router Capabilities
3.5 kw
Motor Power
24,500 rpm
Speed
Specifications
Processing Size Range
- Workpiece Width: 50mm - 1250mm
- Min Workpiece Length: 250mm
- Max Workpiece Thickness: 60mm
Physical Dimensions
6,050 mm
Length
3,160 mm
Width
2,200 mm
Height
900 mm
Table Height
- Utility Requirements
- 380V/50HZ0.6-0.8Mpa Air Pressure26.5kw Total Power
