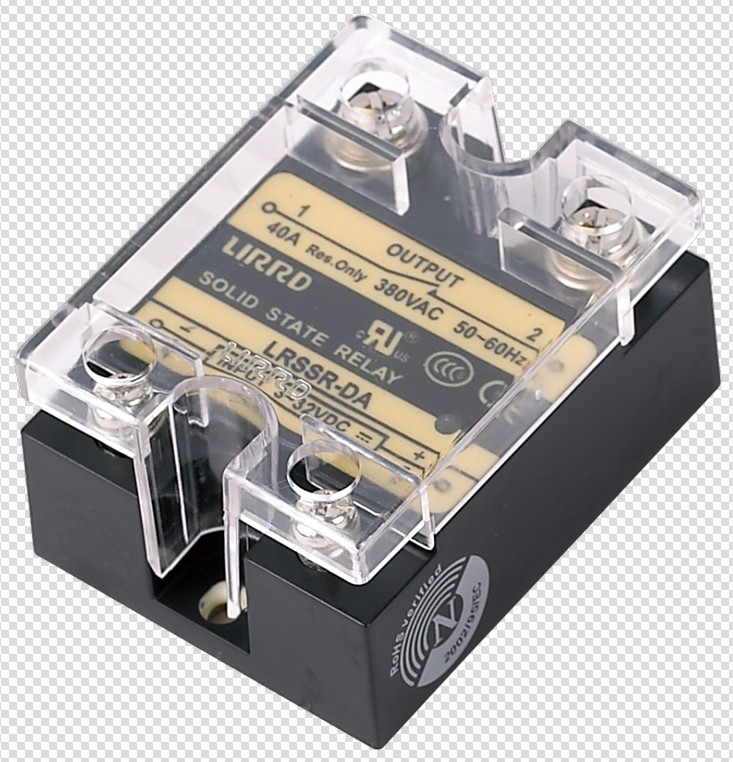

Single Phase Solid State Relay

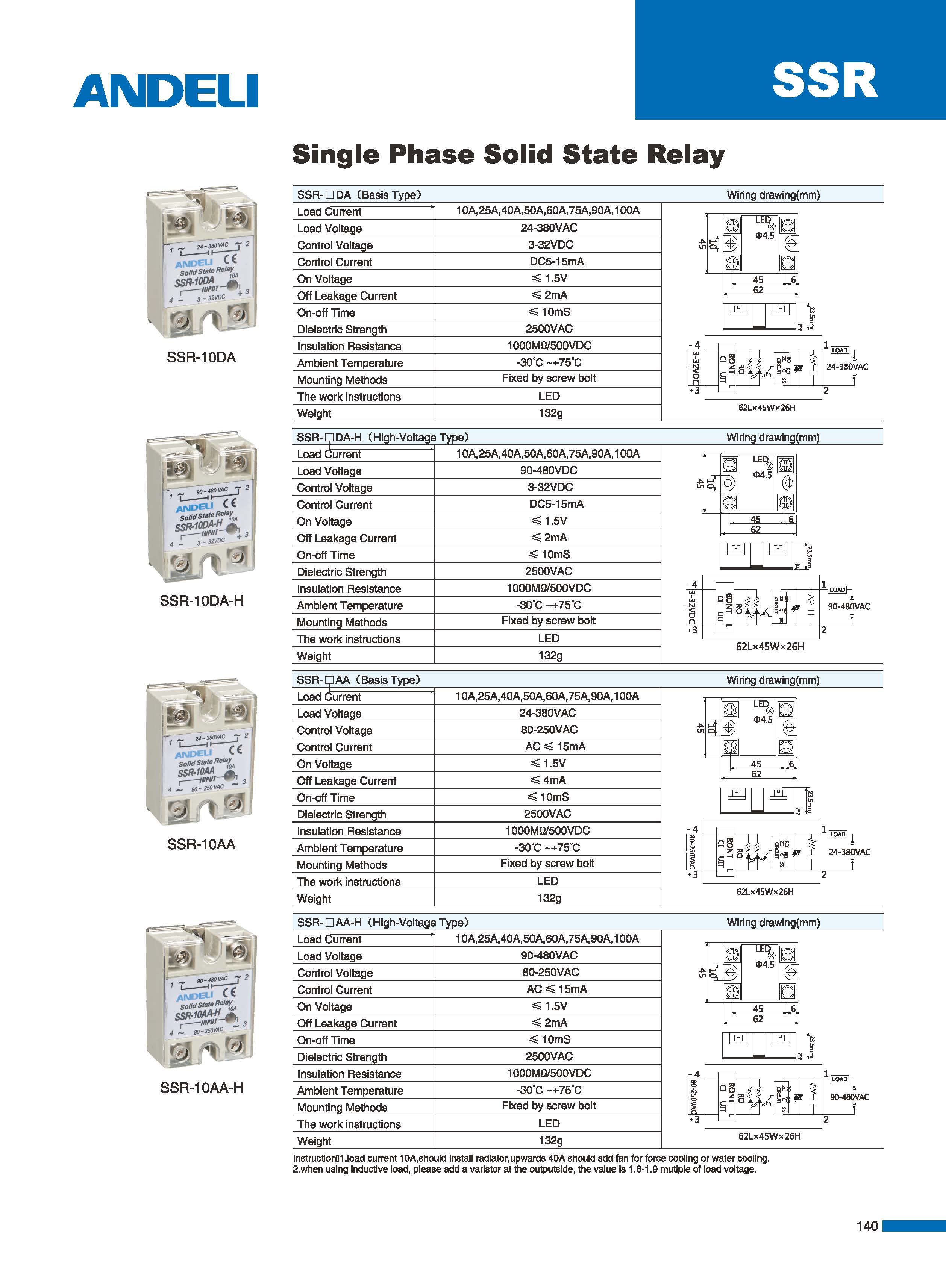

This single-phase solid-state relay is a semiconductor device that uses solid-state components to switch AC loads. It provides efficient switching for resistive, inductive, and capacitive loads.
Technical Specifications
Product Overview
High-Performance Solid State Relay
This single-phase solid-state relay utilizes semiconductor technology to provide high-speed, reliable switching for AC loads. Designed for longevity and reduced electromagnetic interference, it is an efficient alternative to traditional electromechanical relays. The unit features built-in LED status indication and a compact, durable housing suitable for diverse industrial automation applications.
Key Performance Metrics
Core Specifications
50 A
Rated Load Current
2,500 VAC
Dielectric Strength
132 g
Weight
Electrical Ratings
Voltage Specifications
| Parameter | Range |
|---|---|
| Input Control Voltage | 3-32VDC |
| Output Load Voltage (Standard) | 24-380VAC |
| Output Load Voltage (High-Voltage) | 90-480VAC |
Switching Characteristics
- On-off Time: < 10mS
- On Voltage Drop: < 1.5V
- Off Leakage Current: < 2mA
- Control Current: DC 5-15mA
Environmental and Physical
- Operating Environment
- -30°C to +75°CScrew bolt mountingLED indication
- Dimensions
- 62L x 45W x 26H (mm)
Certifications
Standards
CE Certified
