Single Phase Outdoor Disconnect Switch
This single-phase outdoor disconnect switch is used in electrical power transmission and distribution systems. It provides a reliable method for isolating circuits during maintenance or emergencies with robust insulators and corrosion-resistant materials.
Technical Specifications
Product Overview

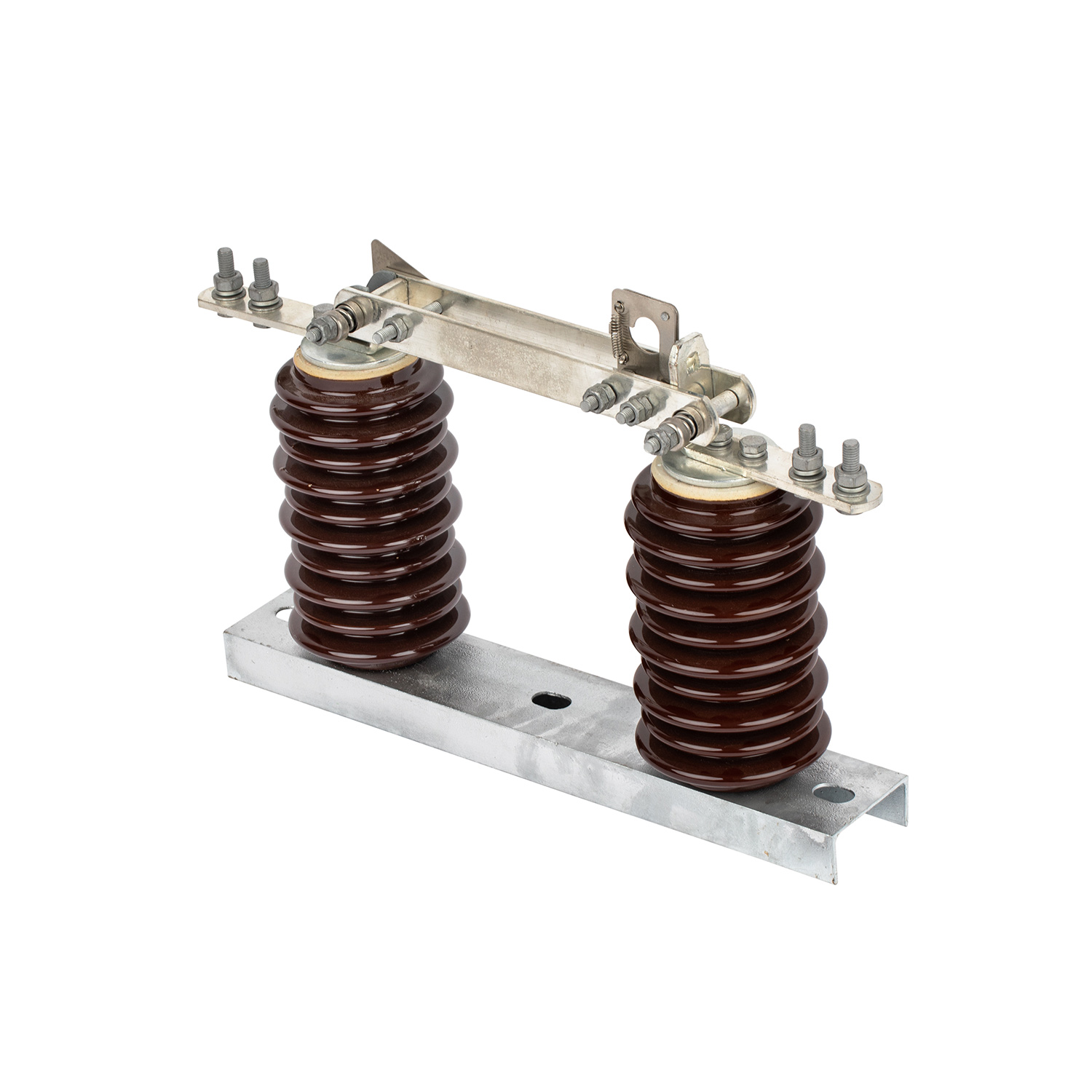

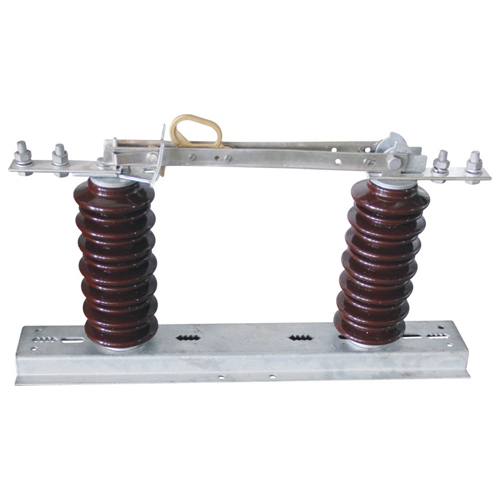

GW9 Series Single Phase Outdoor Disconnect Switch
The GW9 Series is a robust outdoor single-phase disconnect switch engineered for reliable circuit isolation in electrical power transmission and distribution systems. Constructed with a high-strength alloy aluminium body and durable ceramic insulators, this switch ensures long-term performance and high voltage isolation in harsh outdoor environments. It features a manually operated mechanism that provides a clear, visible break for safe maintenance and emergency circuit isolation.
Technical Specifications
Rated Voltage Options
- 10-15 KV
- 20-27 KV
- 30-38 KV
Performance Matrix
| Rated Voltage (KV) | Rated Current (A) | Creepage Distance (mm) |
|---|---|---|
| 10-15 | 400-1250 | 300-400 |
| 20-27 | 400-1250 | 450-580 |
| 30-38 | 400-1250 | 740-900 |
- Rated Current
- 1250 A
Design & Construction
Operational Benefits
Easy installationZero electrical energy lossVisible break isolationManual operation
- Construction Highlights
- High-strength alloy aluminiumGalvanized steel frameCeramic insulatorsCorrosion-resistant hardware
