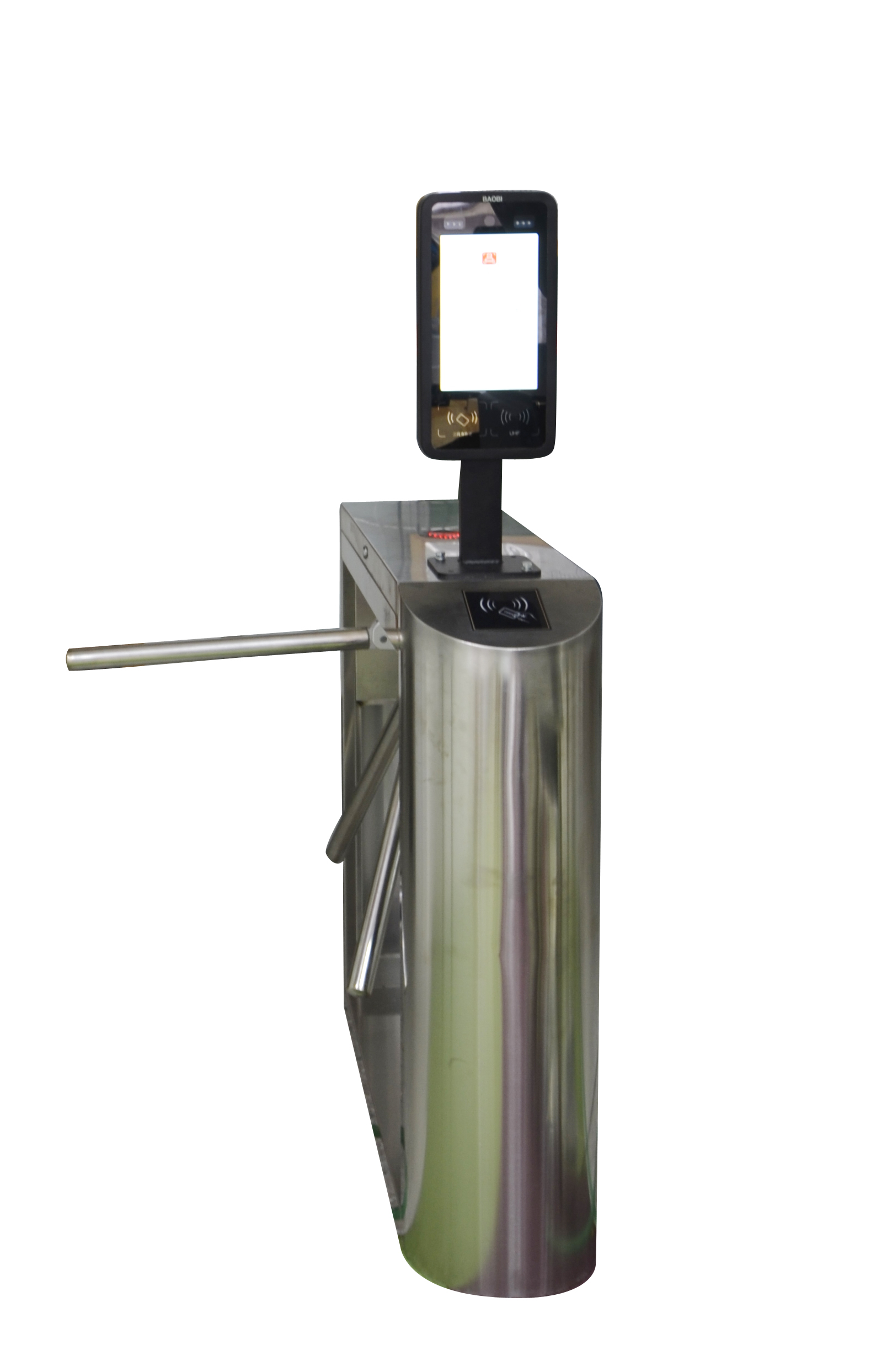

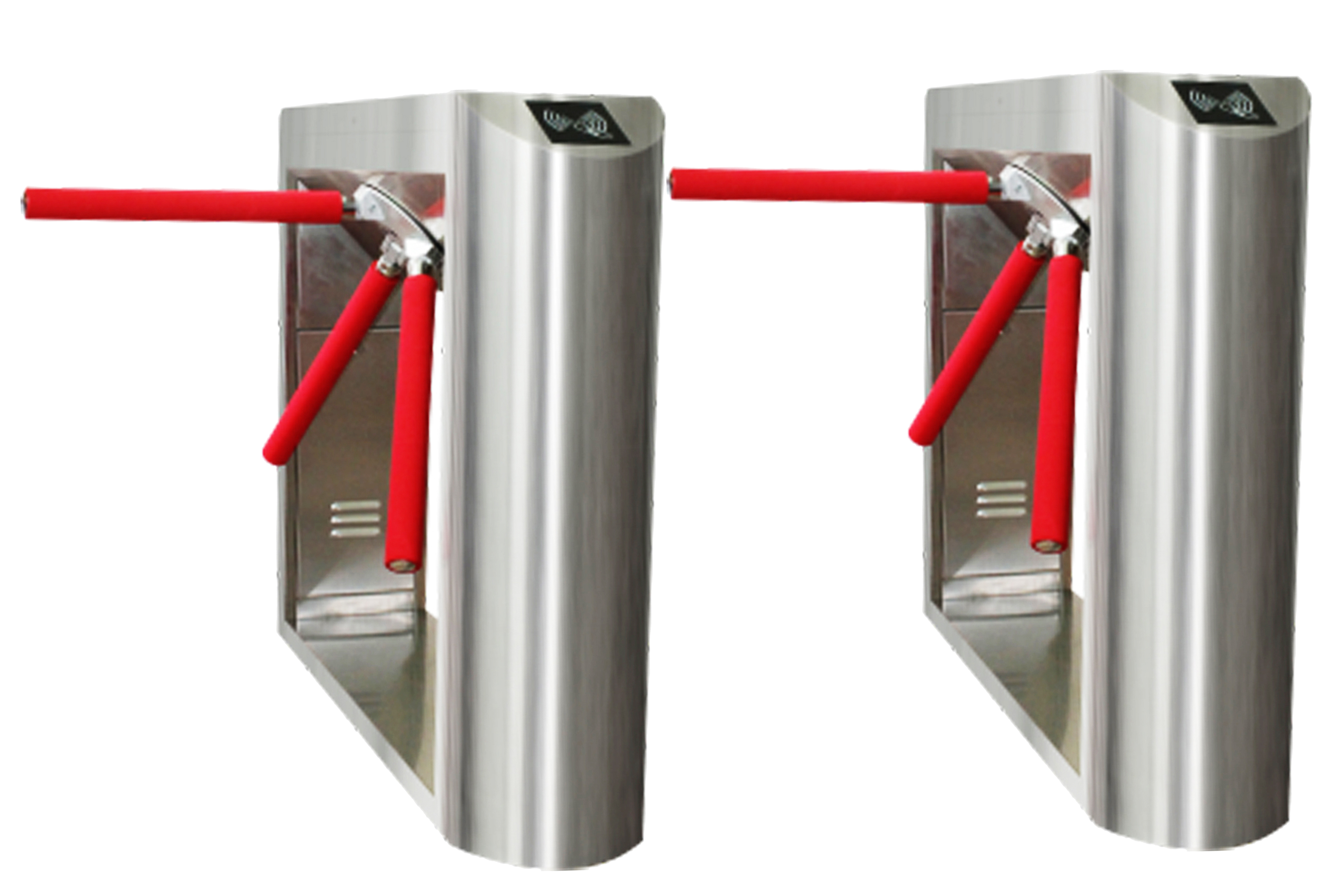

Single Core Tripod Turnstile Gate with Circular Arc Design
This single-core tripod turnstile gate offers controlled pedestrian access in high-traffic areas. Its stainless steel construction and circular arc design ensure smooth, secure, and efficient operation.
Technical Specifications
Overview
Professional Access Control
This circular arc tripod turnstile gate offers a robust and economic solution for pedestrian flow management in high-traffic environments. Featuring a durable 304 stainless steel housing, it ensures long-term reliability and security for facilities ranging from office buildings to transportation hubs. The system integrates advanced safety features, including automatic homing, power-off emergency opening, and intelligent anti-tailing detection to ensure secure and efficient passage.
Physical Dimensions
- Unit Dimensions
- 1200 x 280 x 990 mm
- Packing Dimensions
- 1220 x 310 x 1000 mm
- Housing Material
- 304 Stainless Steel (1.26mm thickness)
- Channel Width
- 700 mm
Performance Metrics
Pass Rate
40 people/min
Max Pass Rate
- Open/Close Time
- 0.8 s
- Mean Time Between Failures
- 3 million cycles
Technical Specifications
Protection Level
IP32
- Power Supply
- 220VAC ±10%/15%, 50HZ ±4%
- Power Consumption
- 40 W
- Drive Mode
- Brush motor
- Operating Temperature
- -25°C to +75°C
Features
Safety & Security Features
- Automatic Homing Function
- Power-off Emergency Open
- Anti-illegal Intrusion Alarm
- Anti-backward Detection
- Anti-tailing Detection
- Supported Authentication
- RFID CardFacial RecognitionFingerprintQR Code
Applications
Suitable Environments
- Hospitals
- Office Buildings
- Government Sectors
- Financial Institutions
- Hotels
- Amusement Parks
