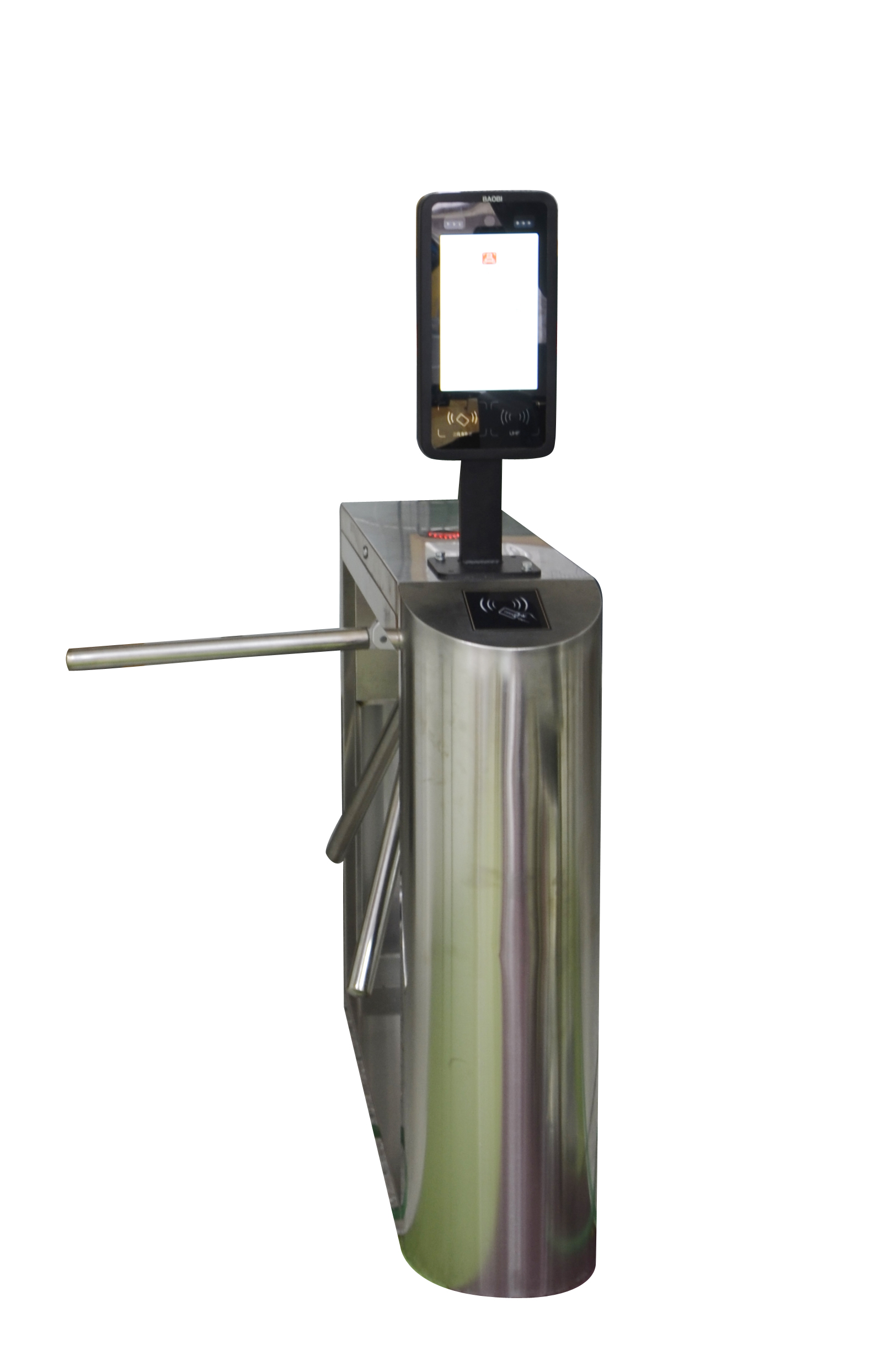

Circular Arc Tripod Turnstile Gate
This tripod turnstile gate manages pedestrian access with a single core mechanism. Its circular arc design enhances safety and aesthetics in stadiums, transit stations, and office buildings.
Technical Specifications
Overview
Circular Arc Tripod Turnstile Gate
The Circular Arc Tripod Turnstile Gate (Model B-GZ02A) is a robust and efficient access control solution designed for high-traffic environments. Constructed from durable 304 stainless steel, it features intelligent safety mechanisms including automatic homing, power-off fail-safe protocols, and anti-tailing detection. This gate is ideal for hospitals, office buildings, and transit hubs, offering seamless integration with various authentication systems.
Technical Specifications
Product Dimensions
1,200 mm
Length
280 mm
Width
990 mm
Height
- Pass Rate
- 40 people/min
- Open/Close Time
- 0.8 s
- Channel Width
- 700 mm
- Housing Material
- 304 Stainless Steel (1.26mm thickness)
Electrical & Environmental
Protection Rating
IP32
- Power Supply
- 220VAC±10%/15%, 50HZ±4%
- Power Consumption
- 40 W
- Working Temperature
- -25°C to +75°C
Features & Functionality
Security Features
- Automatic Homing Function
- Anti-illegal Intrusion Detection
- Anti-backward Detection
- Anti-tailing Detection
- Intelligent Linkage Alarm
- Supported Authentication
- RFID CardFace RecognitionFingerprintQR Code
- Emergency Operation
- Yes
