Overview

Intelligent Access Management

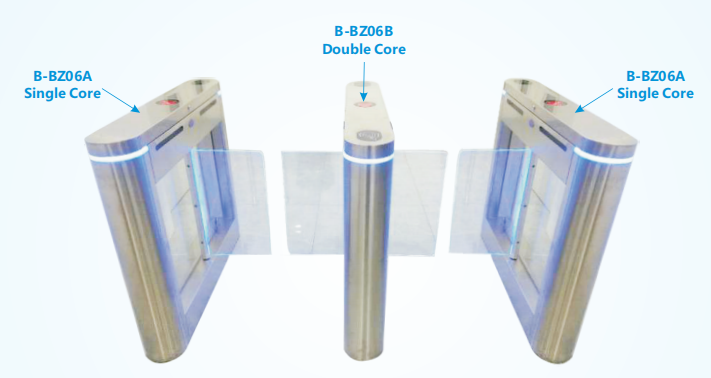

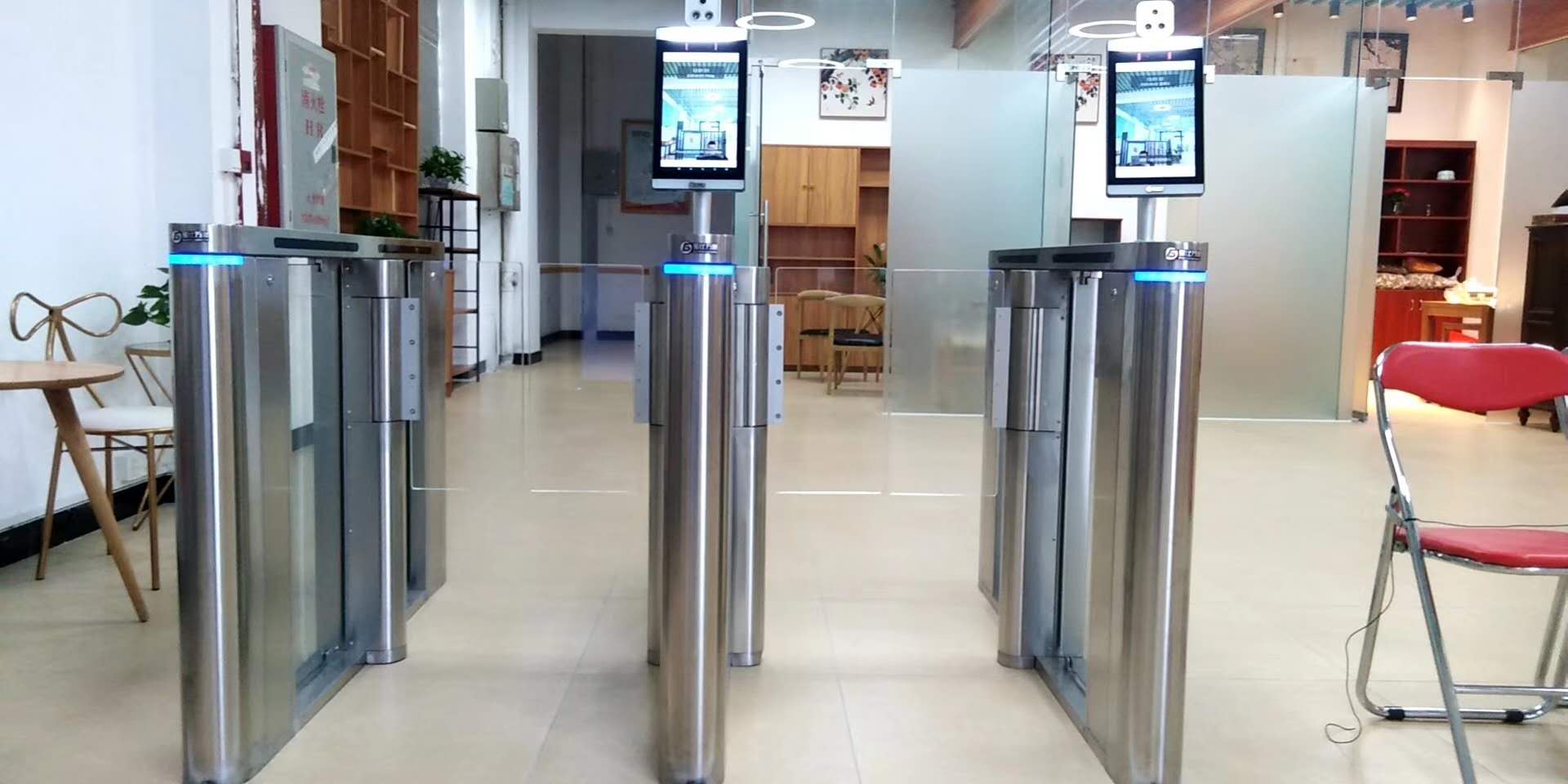

This optical swing turnstile provides a civilized and orderly solution for managing pedestrian traffic in high-end indoor environments. Designed for efficiency and security, it features self-recovery mechanisms, anti-tailing detection, and automatic emergency opening protocols. Suitable for a wide range of applications including office buildings, airports, and financial institutions, it ensures smooth and controlled entry and exit.

Physical Specifications

Housing Material: SUS#304 Stainless Steel
Housing Dimensions (L x W x H): 1200 x 200 x 1000 mm
Weight (Single Core): 50 kg
Weight (Double Core): 58 kg

Performance Metrics

Pass Rate

40 person/min

Open Status

30 person/min

Close Status

Passage Width: 400-780mm (Standard 550mm)
Open/Close Time: 2 s

Technical Features

Security Features: Anti-illegal intrusionAnti-backwardAnti-tailingAnti-collisionFault self-testing
Power Failure Behavior: Automatic open for emergency evacuation
Operating Voltage: AC220V ±10% / 50Hz
Communication: RS485 (distance ≤1200m)
