SF6 Insulated Ring Main Unit
This high-voltage ring network cabinet uses SF6 gas as the arc extinguishing and insulating medium. Its compact design ensures easy installation, operation, and stable performance in 10 kV power supply and distribution systems.
Technical Specifications
Product Overview

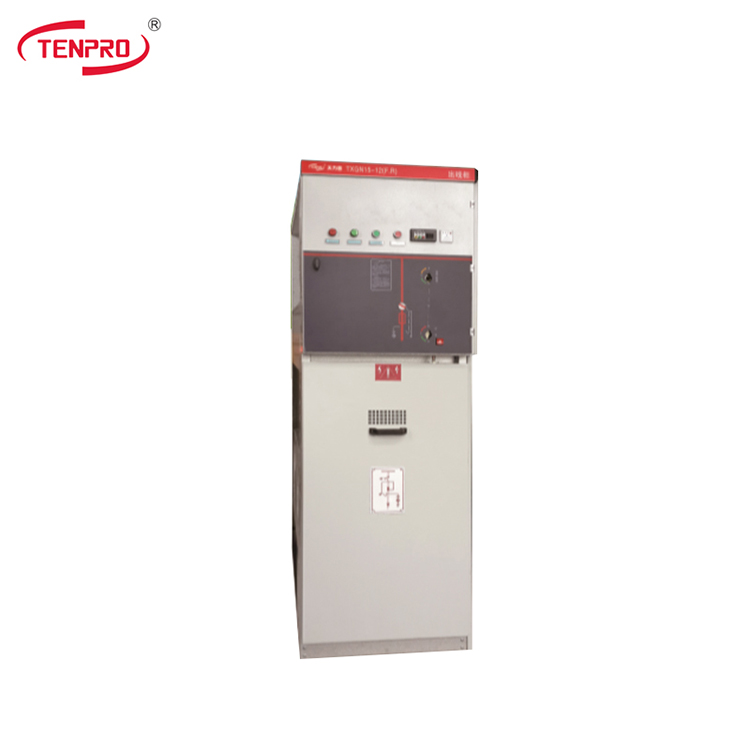

TXGN15-12 SF6 Ring Main Unit
The TXGN15-12 series is a high-performance ring main unit utilizing SF6 gas for superior arc extinguishing and insulation. Featuring a compact, modular design, it offers exceptional reliability for 10kV power distribution systems. With integrated safety interlocks and standardized functional units, this equipment is engineered for safe operation, ease of maintenance, and flexible power network expansion.
Technical Features
Safety Features
- Pressure relief door for internal arc protection
- Main earthing busbar
- Interlocking between load and ground switches
- Automatic cabinet door interlock
- Analog circuit display
- Materials
- Aluminum-zinc platePlastic spray treatmentCopper braided tape
- Insulation
- SF6 Gas
Performance Specifications
Rated Voltage
12 kV
Rated Voltage
- Insulation Intervals
- 4
Installation & Compatibility
Advantages
- Compact volume
- Lightweight construction
- Standardized functional unit design
- Supports intelligent control unit integration
- Easy site modification and extension
