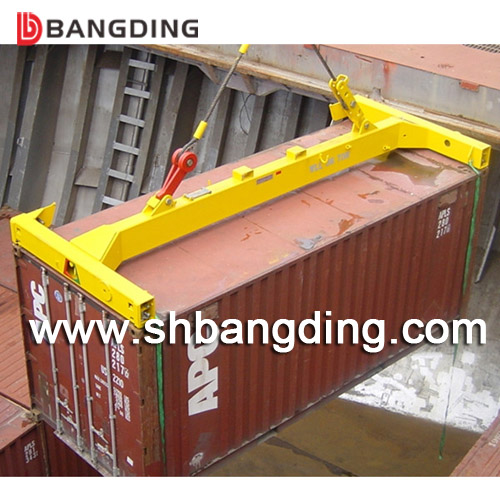

Semi-Automatic Container Spreader
This semi-automatic container spreader is designed for efficient and safe handling of standard shipping containers. Constructed from high-strength steel, it provides a secure and reliable connection for loading and unloading containers from ships, trucks, and railcars.
Technical Specifications
Product Overview
Robust Handling Solutions
This semi-automatic container spreader is designed for the efficient handling of ISO-certified containers in demanding industrial environments. Operating on a gravity-and-lift principle, it simplifies the locking and unlocking process without complex manual intervention. Built from high-strength steel, this I-type mechanical lifter is engineered to withstand rough conditions while ensuring secure operations for both 20ft and 40ft containers.
Technical Specifications
Safe Working Load (S.W.L)
25 tonnes
Minimum Capacity
40 tonnes
Maximum Capacity
- Compatible Container Sizes
- 20ft40ft
- Material
- Steel
- Operation Method
- Semi-automatic (Gravity and Lift)
Features & Compliance
Key Features
- Robust guide arms for precise positioning
- Lower lifting eyes for overheight flat handling
- Gravity-based twistlock locking/unlocking
- Manual operation handles included
Compliance & Testing
ISO CertifiedQuality TestedTest LoadedBV Certificate Available
Ordering Information
- Customization
- Yes
- Minimum Order Quantity
- 1 SET
