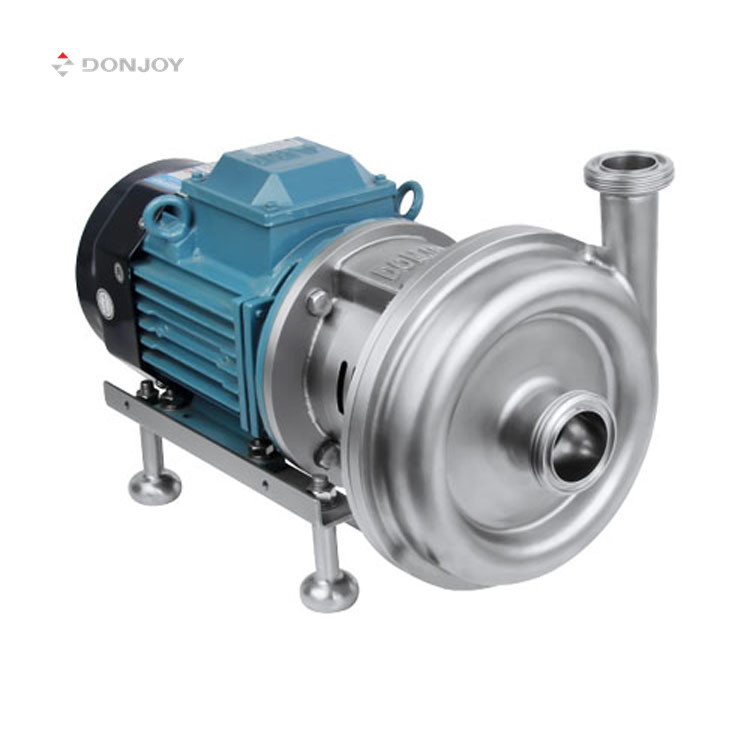

Sanitary Food Grade Centrifugal Pump
This high-clean sanitary centrifugal pump is specifically designed for food-grade applications. Constructed with stainless steel, it ensures hygiene and corrosion resistance.
Technical Specifications
Overview
High-Performance Sanitary Centrifugal Pump
This series of centrifugal pumps is engineered with an optimized internal structure, including advanced impeller design and dead angle treatment to ensure absolute hygiene. Designed to facilitate easy cleaning via CIP and SIP sterilization, these pumps offer exceptional reliability and efficiency for food, beverage, and pharmaceutical processing. The flexible configuration allows for adjustable outlet angles and various connection types to meet diverse industrial requirements.
Performance Metrics
Operating Range
120 m3/h
Max Flow Rate
70 m
Max Head
30 KW
Max Power
- Temperature Range
- -20°C to 140°C
Technical Specifications
Surface Treatment
- ≤ Ra0.8μm
- ≤ Ra0.6μm
- ≤ Ra0.4μm
Mechanical Seal Options
Single machine sealDouble machine seal
Inlet/Outlet Connections
- Thread
- Clamp
- Flange
- Aseptic Flange
- Construction Materials
- 304316L1.4311.4404ASME BPE 316L1.4435 NB2
Compliance & Certification
Industry Certifications
| Certification Standard | Reference |
|---|---|
| 3-A-02-10 | N.O.1579 |
| MD/06/42-EC | N.O.70521616101-00 |
| FDA | 177.2600 |
| USP | CLASS-II |
| EU | EG/VO1935/2004 |
