Technical Specifications
Product Overview

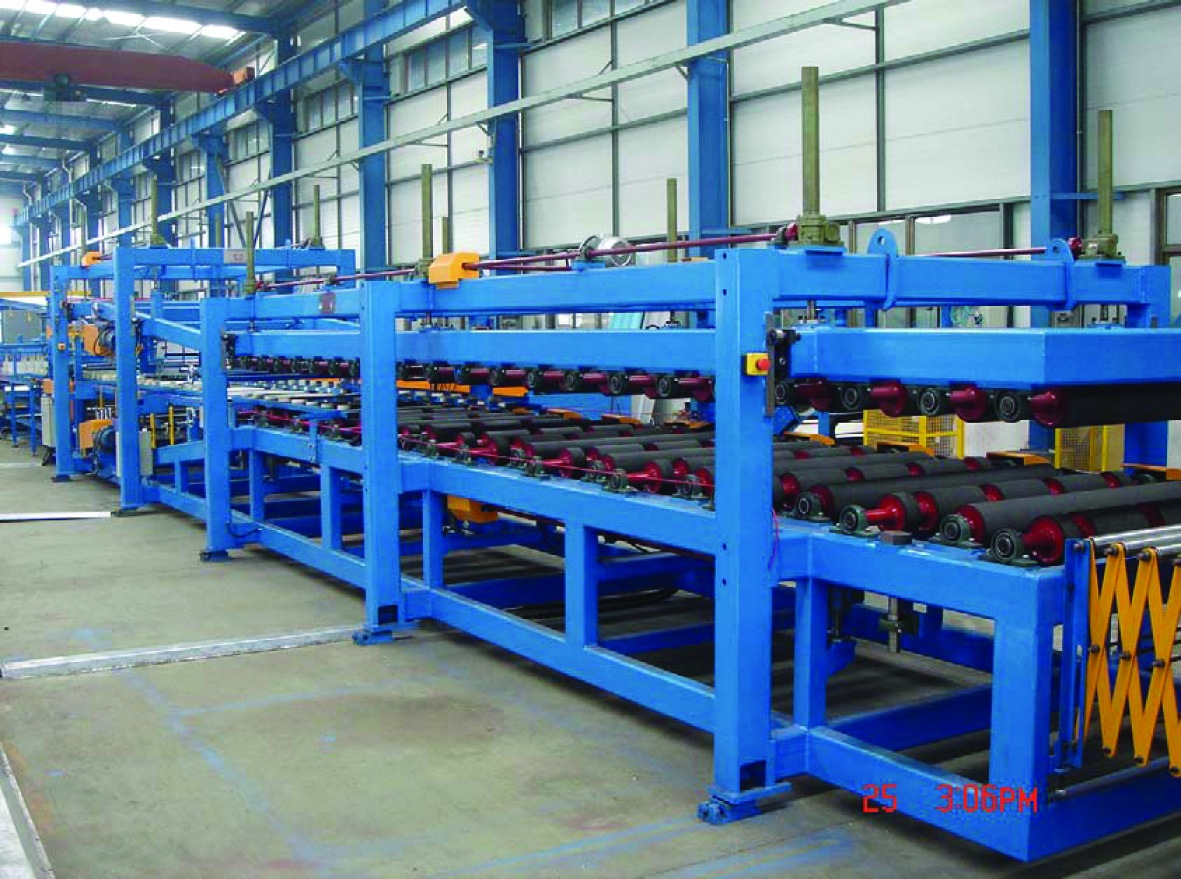

High-Performance Sandwich Panel Lamination Line
This automated production line is designed for the efficient manufacturing of sandwich panels using metallic facings and various insulation materials like polyurethane foam, rock wool, and polystyrene. It delivers a superior combination of physical, mechanical, and construction properties, making it an ideal solution for producing high-quality roof and wall panels. Designed for industrial workshops and warehouses, the system emphasizes modularity, low weight, and cost efficiency to support high-volume production requirements.
Technical Specifications
Model Specifications
| Item | Unit | HIM-SP-5 | HIM-SP-6 | HIM-SP-6L |
|---|---|---|---|---|
| Capacity | m²/h | 100~280 | 100~280 | 100~280 |
| Speed | m/min | 0~4.5 | 0~4.5 | 0~4.5 |
| Power | kw | 30 | 35 | 48 |
| Net Weight | mt | 18 | 22 | 30 |
| Dimensions | m³ | 37x2.3x2.5 | 40x2.3x2.5 | 55x2.3x2.5 |
Capabilities
- Supported Core Materials
- Polyurethane foamRock woolPolystyrene
System Components
Integrated Machinery
- Decoiler

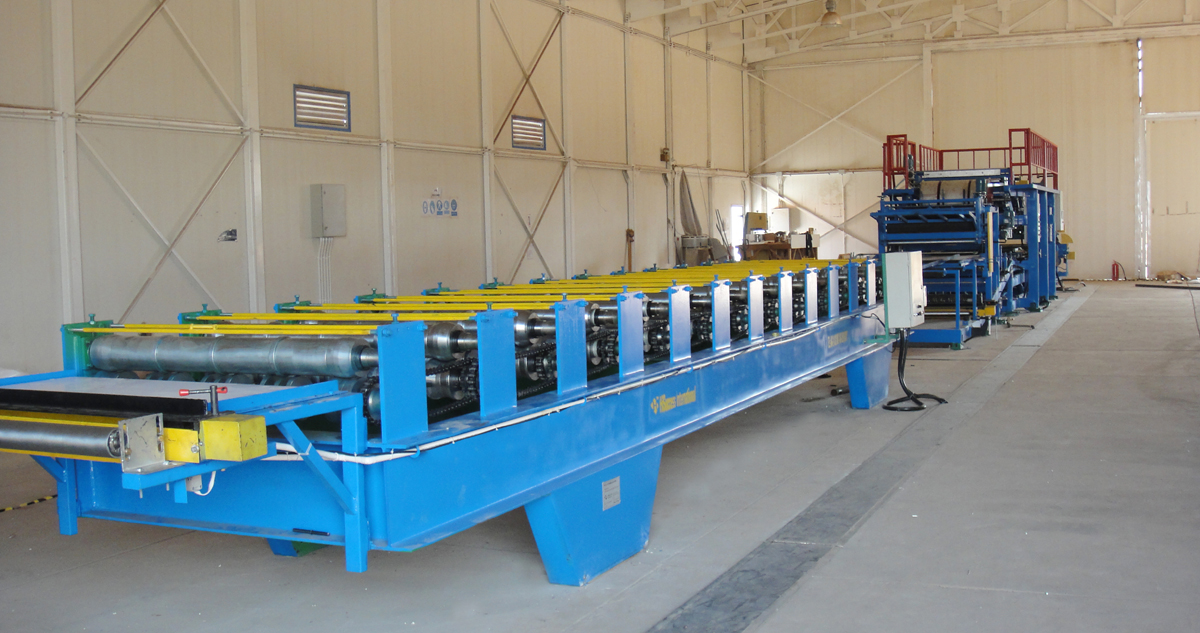

- Roll forming machine
- Glue applicator
- Laminator
- Cutting unit
