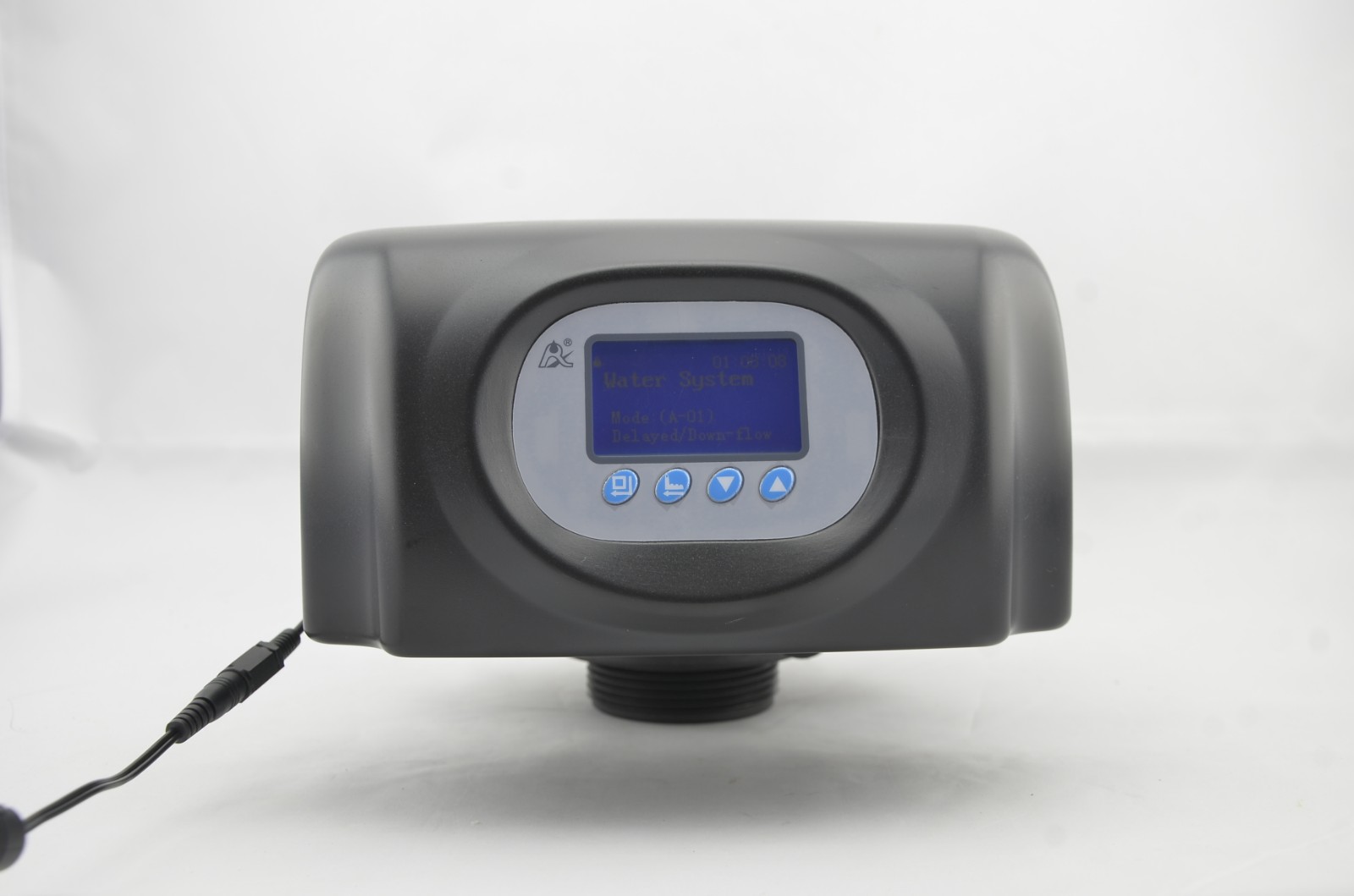

Residential Water Softener Valve
This residential water softener valve is designed for efficient water softening in homes. It features an electronic control system for precise regeneration cycles and supports various regeneration modes.
Technical Specifications
Overview
Residential Water Softener Valve
This advanced residential water softener valve is designed for efficient and reliable water treatment, featuring a comprehensive electronic control system. It supports multiple regeneration stages including service, backwash, brine and slow rinse, brine refill, and fast rinse. Built for durability and ease of use, it ensures consistent water pressure and flow while optimizing salt and water consumption through precise programming.
Technical Specifications
- Flow Rate
- 4 m3/h
- Inlet/Outlet Connection
- 1 inch Male
- Drain Connection
- 1/2 inch Male
- Brine Line Connector
- 3/8 inch Male
- Mounting Base
- 2.5 inch - 8NPSM
- Riser Pipe Outer Diameter
- 1.05 inch
Operating Conditions
Ambient Conditions
50 ℃
Max Ambient Temperature
95 %
Max Relative Humidity
- Water Pressure Range
- 0.15 - 0.6 Mpa
- Water Temperature Range
- 5 - 50 ℃
Regeneration Performance
Turbidity Limits
| Regeneration Type | Max Turbidity |
|---|---|
| Down-flow | < 5 FTU |
| Up-flow | < 2 FTU |
| Filtration | < 20 FTU |
Electrical
Power Adapter Specifications
- Input: AC100~240V / 50~60HZ
- Output: DC12V / 1.5A
