Technical Specifications
Product Overview

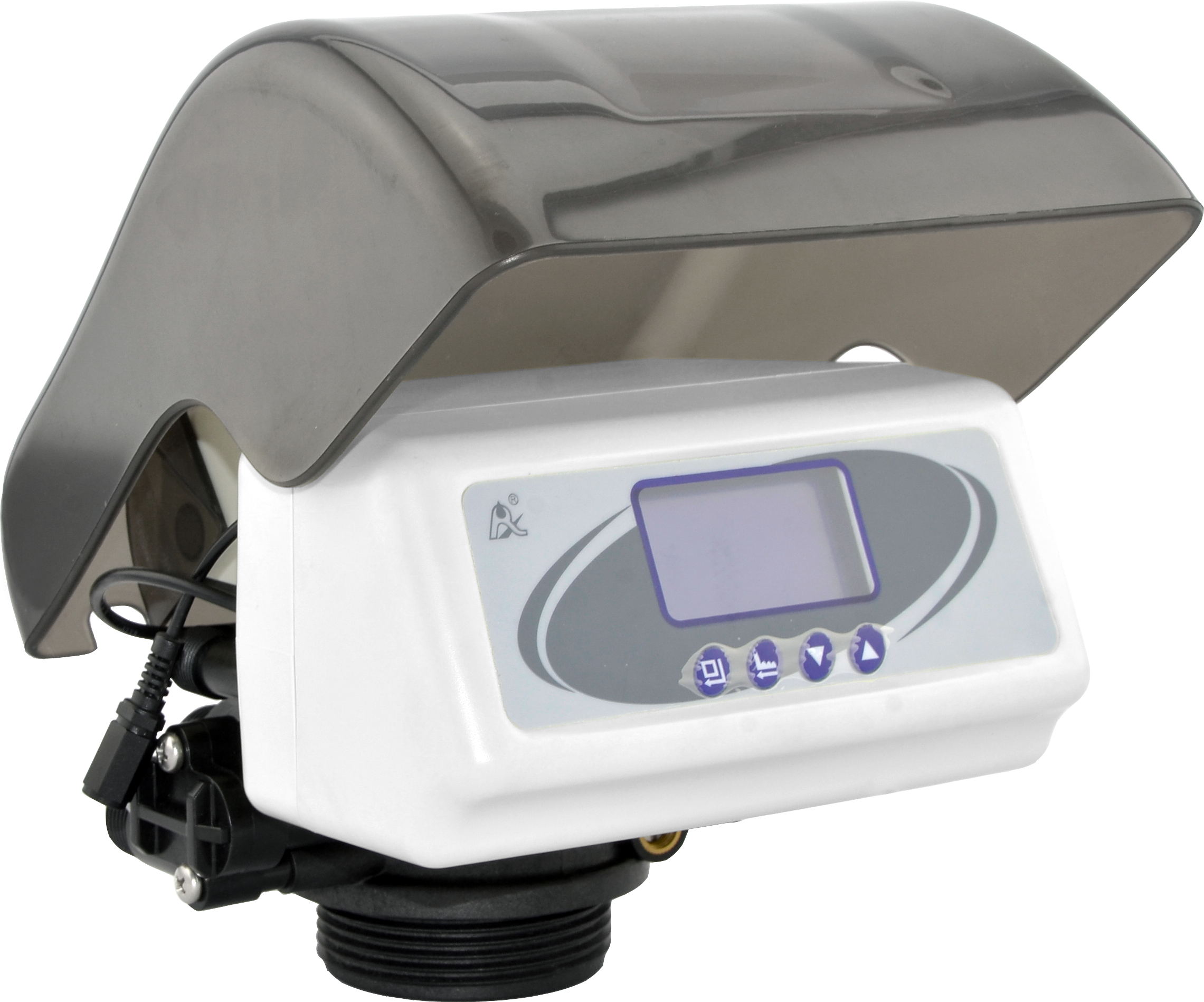

High-Efficiency Residential Water Softener Valve
This residential water softener valve is designed for reliable and efficient water treatment. It features a user-friendly electronic control panel with an intuitive display for easy programming and monitoring. The unit includes a bypass valve, allowing for uninterrupted water flow during the regeneration process, and is constructed from durable materials to ensure long-term performance and corrosion resistance.
Technical Specifications
Flow Rate
2 m³/h
Flow Rate
Connection Sizes
| Port Type | Size |
|---|---|
| Inlet/Outlet | 3/4"M |
| Drain | 1/2"M |
| Brine Line | 3/8"M |
| Mounting Base | 2.5"-8NPSM |
| Riser Pipe | 1.05"OD |
- Available Models
- F79A-LCD/F70DF79B-LCD/F70D
Operating Conditions
Pressure and Temperature
- Water Pressure: 0.15-0.6 MPa
- Water Temperature: 5-50°C
- Ambient Temperature: 5-50°C
- Relative Humidity: ≤95% (at 25°C)
Turbidity Limits
| Regeneration Type | Turbidity Limit |
|---|---|
| Down-flow regeneration | < 5 FTU |
| Up-flow regeneration | < 2 FTU |
| Filtration | < 20 FTU |
Electrical Requirements
- Power Supply
- Input AC100~240V/50~60HZ; Output DC12V/1.5A
Functional Features
Regeneration Cycles
- Service
- Backwash
- Brine & Slow Rinse
- Brine Refill
- Fast Rinse
Key Features
No-hard-water bypassPower outage memoryElectronic control panelCorrosion resistant
