Residential Water Softener Valve
This residential water softener valve efficiently controls water flow during softening stages. Its durable design ensures consistent performance in residential water treatment.
Technical Specifications
Overview

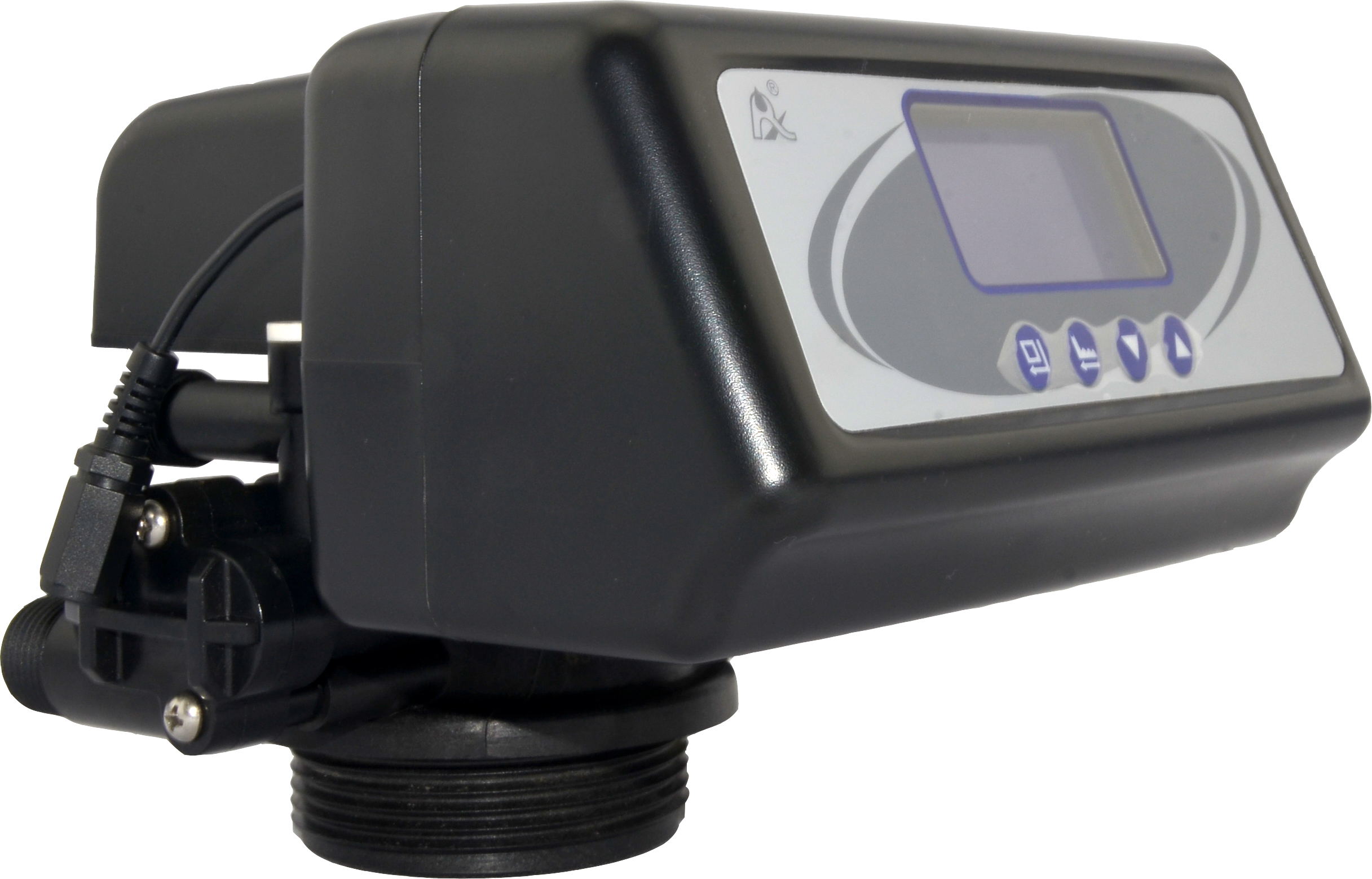

Residential Water Softener Valve
The F65 series residential water softener valve is a versatile component designed for efficient water treatment systems. It provides comprehensive control over essential cycles, including service, backwash, brine draw, slow rinse, brine refill, and fast rinse. Available in both timer clock (F65D1) and meter (F65D3) configurations, this valve ensures reliable performance and consistent water softening for residential applications.
Technical Specifications
Flow Rate
2 m3/h
Flow Rate
Connection Sizes
| Connection Point | Size |
|---|---|
| Inlet/Outlet | 3/4"M |
| Drain | 1/2"M |
| Brine Line | 3/8"M |
| Riser Pipe | 1.05"OD |
Operating Parameters
- Water Pressure: 0.15-0.6 Mpa
- Water Temperature: 5-50°C
- Ambient Temperature: 5-50°C
- Water Turbidity: <2 FTU
- Relative Humidity: ≤95% (25°C)
Configuration
Available Models
F65D1 (Timer Clock)F65D3 (Meter Type)
- Mounting Base
- 2.5"-8NPSM
- Compatible Filter Tank Size
- 6" - 18"
