Product Overview
Professional Residential Water Softening Control

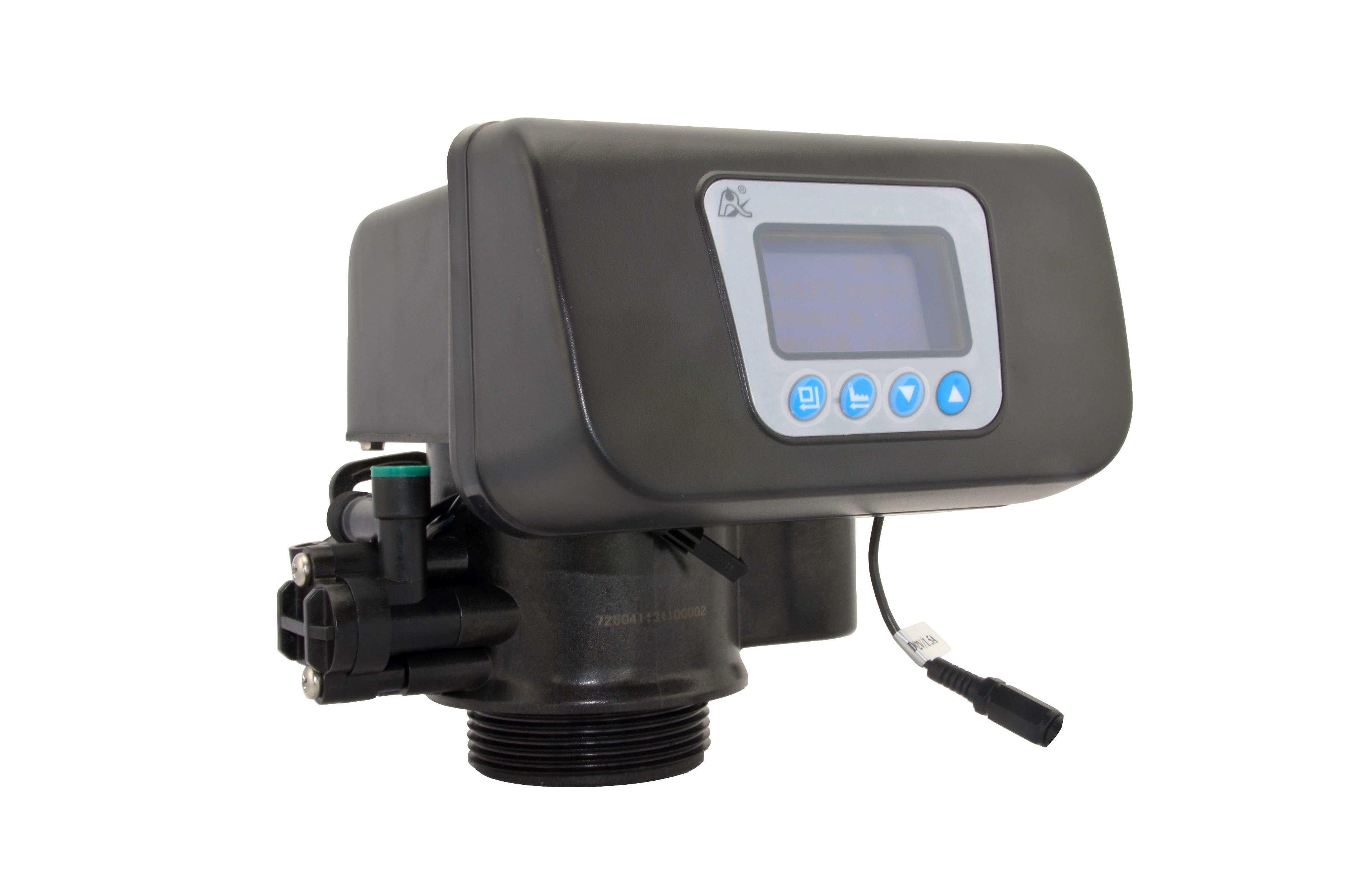

The F68 series automatic water softener valve is engineered for reliable residential water treatment, featuring advanced electronic control for precise regeneration cycles. It offers dual-mode operation—user mode for daily management and kernel mode for secure parameter configuration—to prevent operational errors. With a robust design and flexible connectivity, this valve ensures efficient water softening performance for household systems.
Technical Specifications
Key Performance Metrics
4 m3/h
Flow Rate
0.15 Mpa
Min Water Pressure
0.6 Mpa
Max Water Pressure
Operating Conditions
| Parameter | Specification |
|---|---|
| Water Temperature | 5-50℃ |
| Ambient Temperature | 5-50℃ |
| Relative Humidity | ≤95% (25℃) |
| Turbidity | <2FTU |
- Regeneration Modes
- ServiceBackwashBrine & Slow RinseBrine RefillFast Rinse
Installation & Compatibility
Connection Dimensions
- Inlet/Outlet: 1"M
- Drain: 1/2"M
- Brine Line Connector: 3/8"M
- Mounting Base: 2.5"-8NPSM
- Riser Pipe: 1.05"OD
- Power Requirements
- Input AC100~240V/50~60HZ; Output DC12V/1.5A
Certifications
Compliance
CERoHS
