Reciprocating Wood Incising Saw
The reciprocating wood incising saw is designed for precise and efficient cutting of wood. It features a robust construction and advanced engineering for clean and accurate cuts.
Technical Specifications
Overview

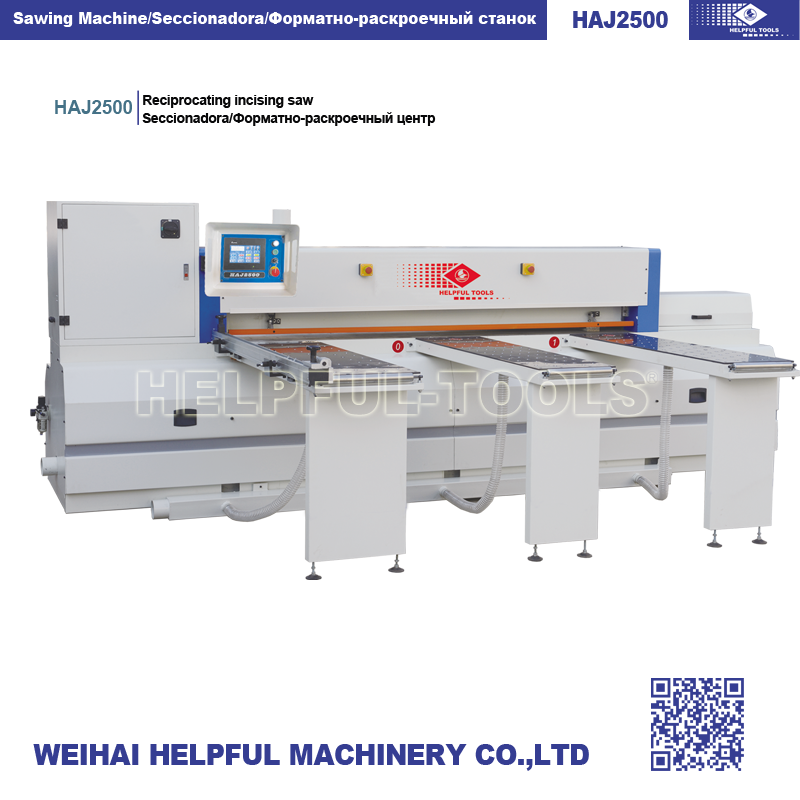

Industrial Reciprocating Incising Saw
This high-precision reciprocating incising saw is engineered for professional woodworking applications, offering robust construction for demanding industrial environments. It features an advanced control system and high-precision cutting mechanisms that deliver consistent, clean, and accurate results. Designed for efficiency, the machine is ideal for furniture manufacturing and cabinet construction, ensuring both high productivity and user safety.
Performance Specifications
Cutting Metrics
60 mm
Max Sawing Thickness
30 m/min
Returning Speed
10.1 kw
Total Power Consumption
Blade Configuration
| Component | Dimensions | Speed |
|---|---|---|
| Main Saw Blade | Ø300*30mm | 5600 r/min |
| Scoring Saw Blade | Ø130*30mm | 7200 r/min |
Technical Details
Motor Power Ratings
- Main saw motor: 7.5kw
- Scoring saw blade motor: 0.75kw
- Turbine reducer: 1.1kw
- Physical Dimensions & Weight
- 4255-6020 x 4456 x 1230 mm
- Air Pressure
- 0.7 Mpa
Features
- Key Highlights
- Industrial GradePrecision CuttingAutomated Control PanelHigh-Stability Frame
