Technical Specifications
Overview

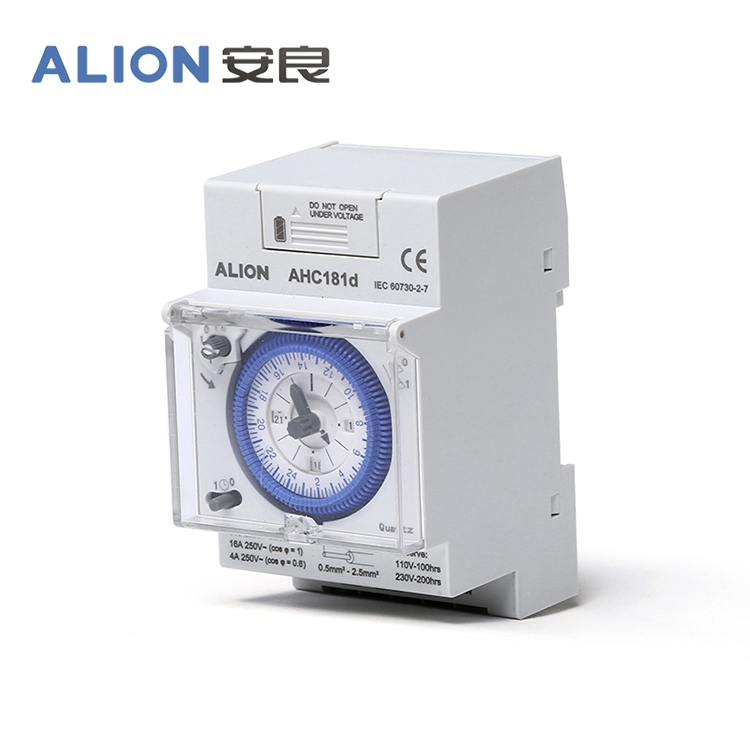

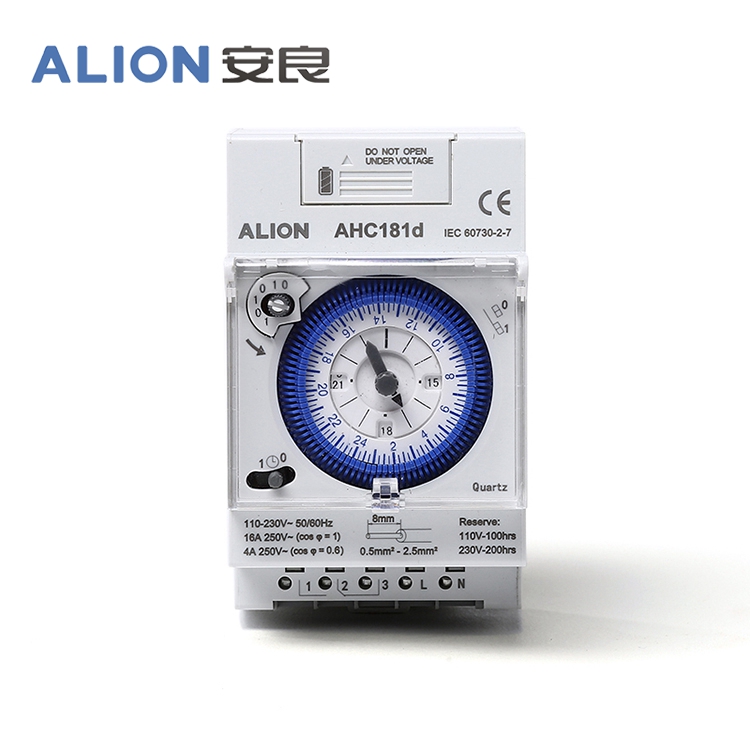

Daily Analogue Time Switch
This daily analogue time switch is designed for precise, reliable time-based control of electrical circuits. Featuring 96 switching segments, it allows for a minimum switching time of 15 minutes and includes manual override options for continuous ON/AUTO/OFF operation. Built with a quartz-controlled mechanism and a rechargeable NiMH battery for power reserve, it ensures accurate scheduling even during power interruptions.
Technical Specifications
- Time Accuracy
- 2 Sek./day
- Power Reserve
- 7 days
- Switching Segments
- 96
- Minimum Switching Time
- 15 min
- Protection Class
- IP 20
- Operating Temperature
- -10 to +50 °C
Electrical Ratings
- Switching Capacity
- 16 A
- Voltage
- 230Vac
- Frequency
- 50/60Hz
- Power Consumption
- 1.5 VA
Load Capacity
Maximum Recommended Load
| Load Type | Rating |
|---|---|
| Filament / Halogen lamp 230V | 1100 W |
| LED lamp 230V < 2 W | 20 W |
| LED lamp 230V > 2 W | 180 W |
Certifications
- Approvals
- CE
