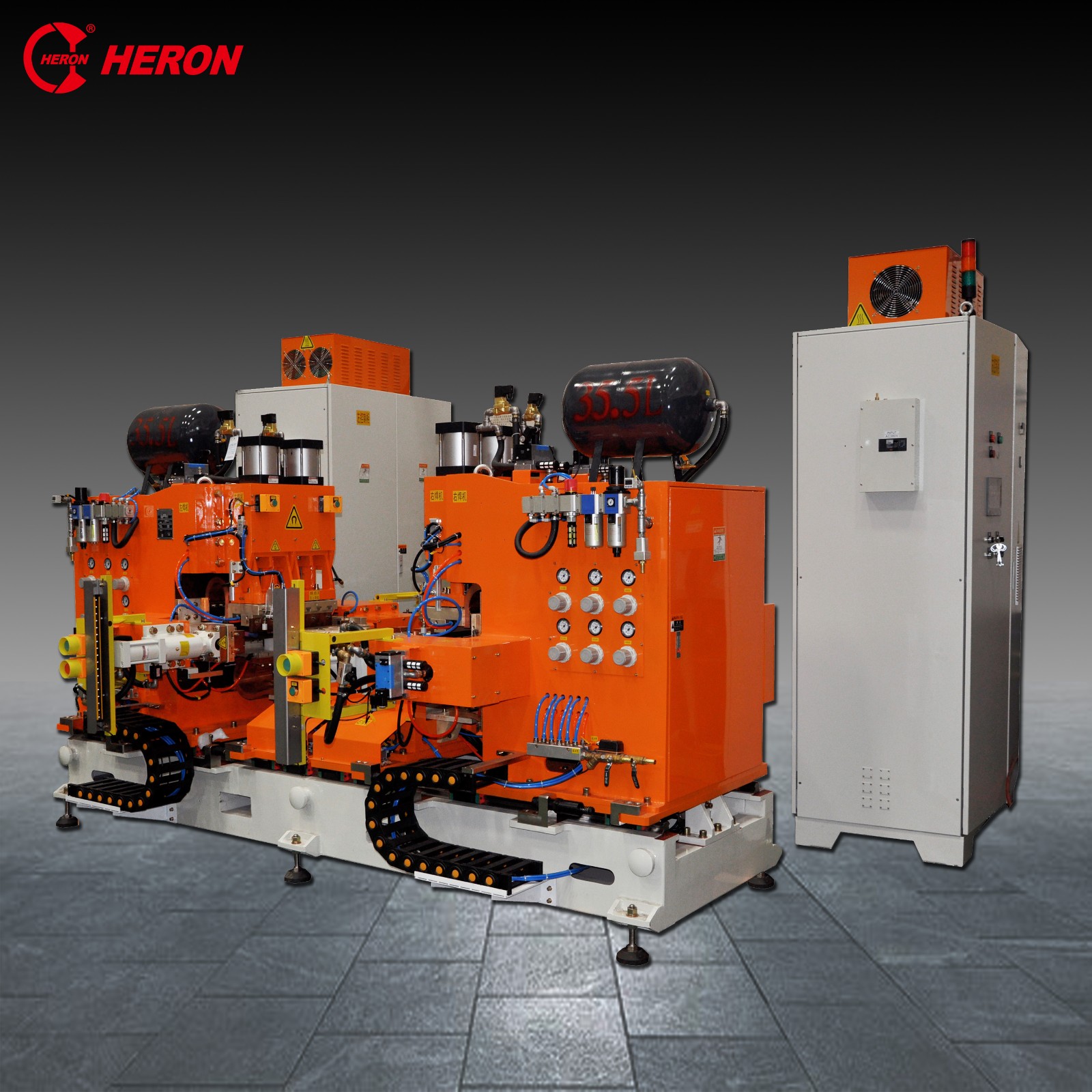

Range Hood Capacitor Discharge Welder with Two Heads
This capacitor discharge welder is designed for range hood manufacturing. Featuring a two-head configuration, it allows for simultaneous welding, increasing production efficiency.
Technical Specifications
Product Overview
High-Efficiency Welding Solution
This 30KJ Capacitor Discharge (CD) welder is precision-engineered specifically for the household appliance industry, particularly for range hood manufacturing. Featuring a dual-head configuration, it enables simultaneous welding operations to significantly enhance production throughput. The system is designed for robust performance, offering precise energy delivery, modular maintenance, and integrated safety features like overload protection and emergency stops.

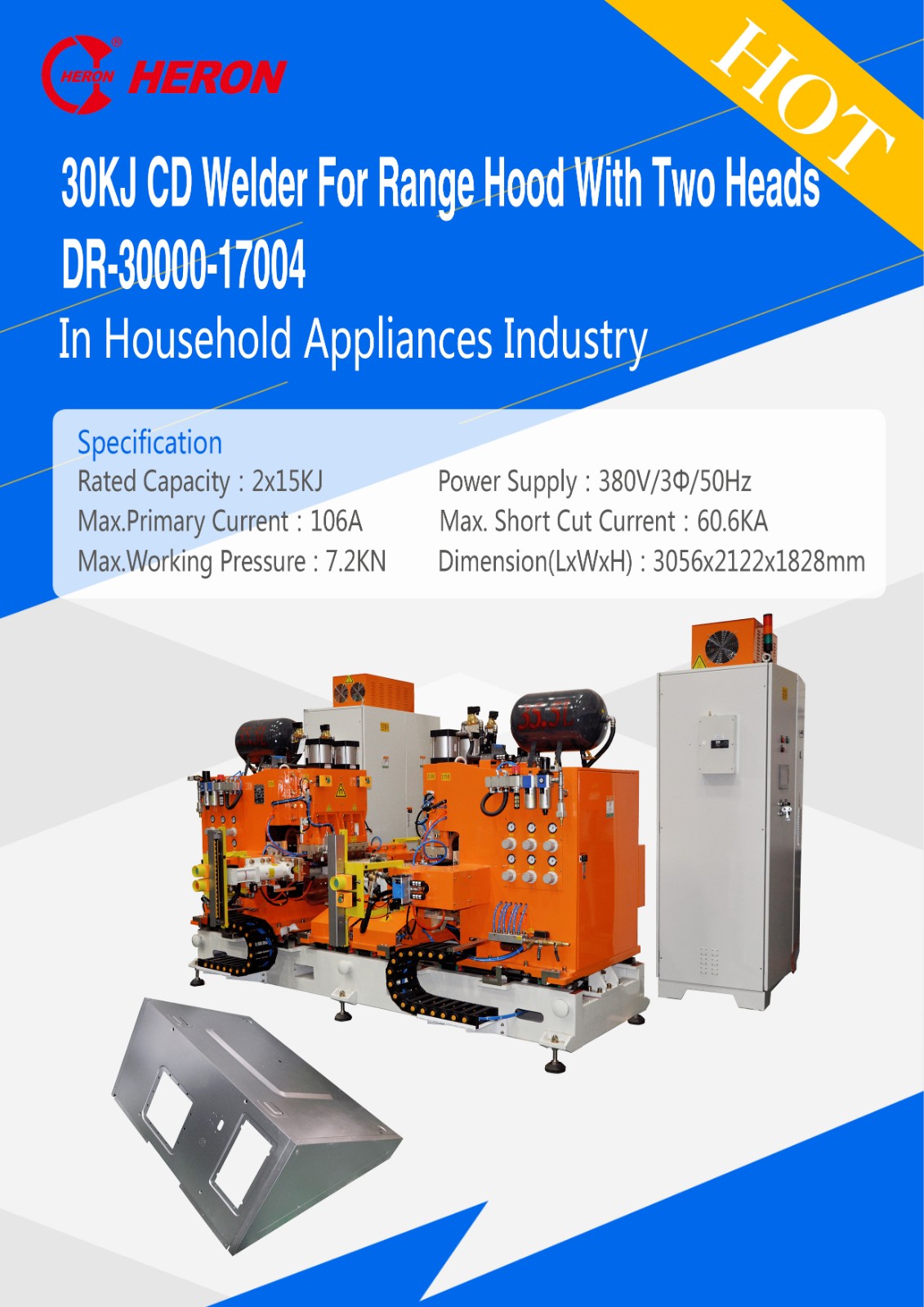

Technical Specifications
Rated Capacity
30 KJ
Total Capacity
15 KJ
Per Head Capacity
- Max Primary Current
- 106 A
- Max Short Circuit Current
- 60.6 KA
- Max Working Pressure
- 7.2 KN
- Power Supply
- 380V/3Φ/50Hz
Physical Dimensions
- Dimensions (LxWxH)
- 3056 x 2122 x 1828 mm
Features
Key Features
- Two-head configuration for simultaneous welding
- Optimized for range hood construction
- Robust control system for precise energy delivery
- Modular design for easy maintenance
- Integrated overload protection
- Emergency stop mechanisms
- Industry Application
- Household AppliancesRange Hood ManufacturingIndustrial Assembly
