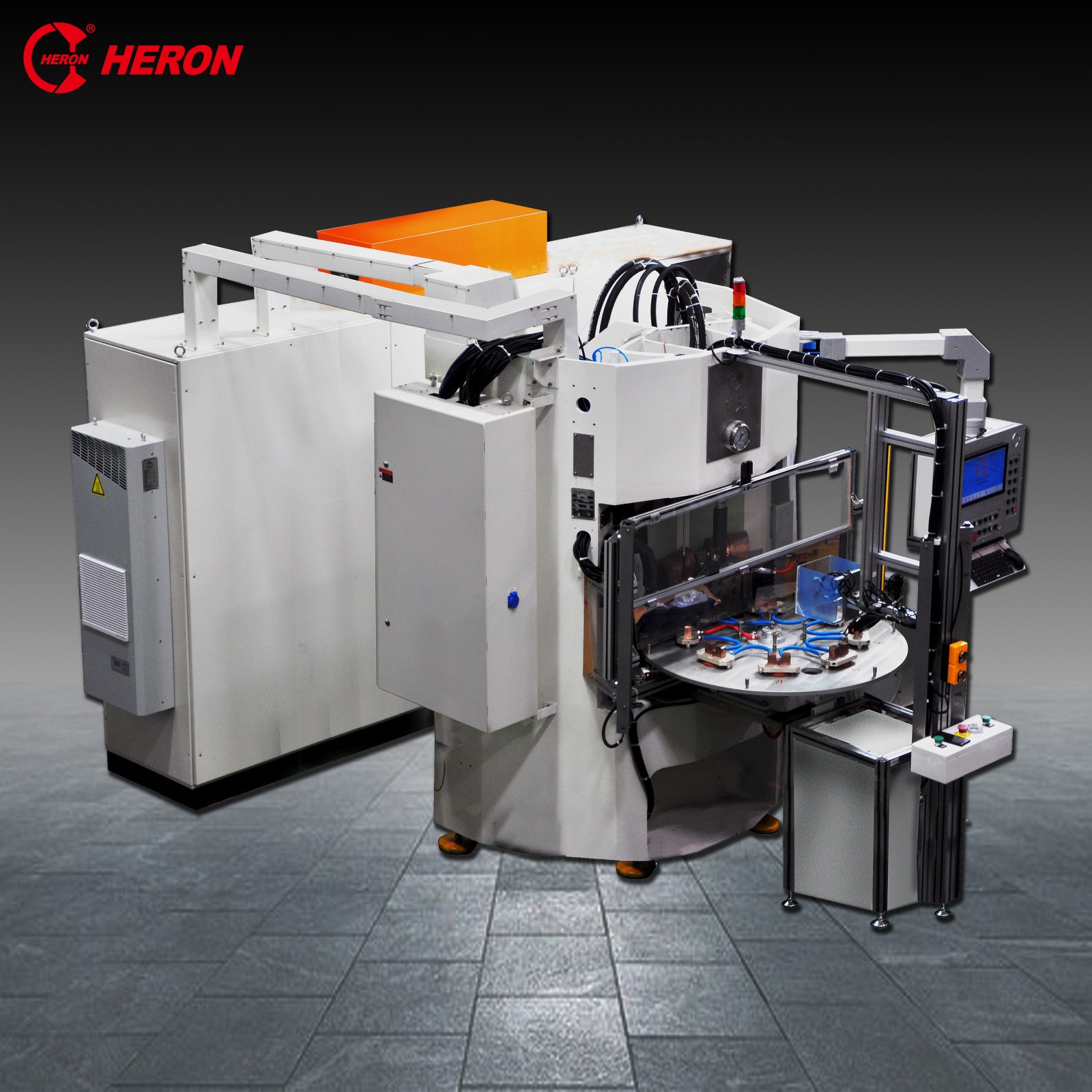

Capacitor Discharge Spot and Press Welder
This capacitor discharge spot and press welder is designed for precision welding applications. It utilizes capacitor discharge technology to provide rapid and controlled energy, ensuring high-quality spot and press welds.
Technical Specifications
Overview
High-Precision Capacitor Discharge Welding
This industrial-grade Capacitor Discharge (CD) Spot and Press Welder is engineered for high-quality precision welding in demanding environments like auto parts manufacturing. Utilizing rapid energy pulses, it ensures consistent weld quality for small components and electrical contacts while offering customizable configurations for both standalone and automated production lines. The system features a user-friendly interface with adjustable parameters for energy, pressure, and timing to meet specific production requirements.
Key Performance Metrics
Performance Highlights
60 KJ
Energy Capacity
100 KVA
Rated Capacity
118 KN
Max Working Pressure
371 KA
Max Short Cut Current
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Power Supply | 380V / 3 Phase / 50Hz |
| Max Primary Current | 178A |
| Model Number | DR-60000-15001 |
Physical Characteristics
- Machine Dimensions
- 5400 x 3900 x 2550 mm
Features & Safety
Key Features
- Rapid and controlled energy pulses
- Adjustable weld energy and timing
- Enclosed welding area for operator safety
- Emergency stop mechanisms

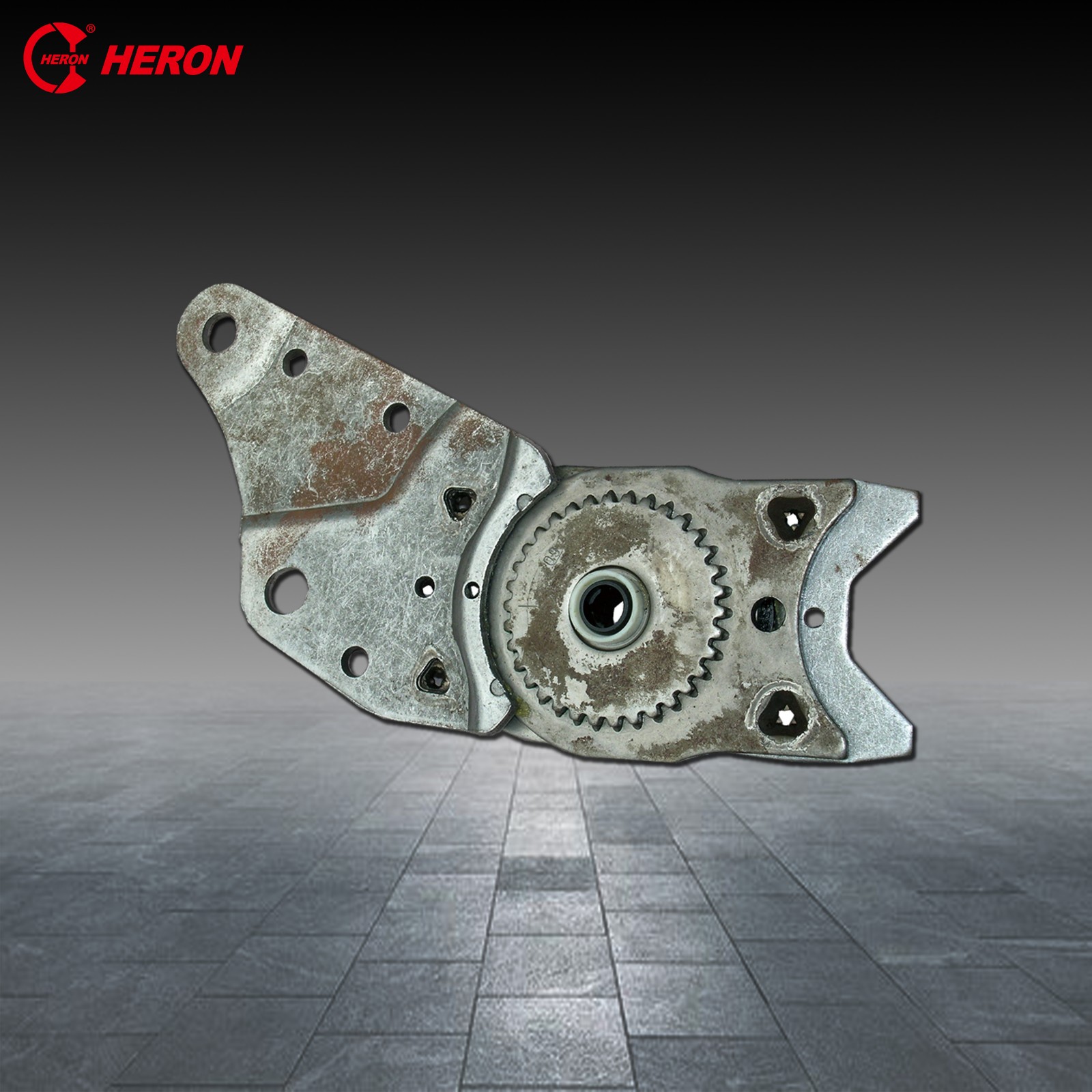

- Robust metal construction with gear mechanism
Applications
- Target Applications
- Auto Parts ManufacturingElectrical ContactsPrecision ComponentsAutomated Production Lines
