Ram Type Blowout Preventer
The TU Ram Style Blowout Preventer is forged from special alloy high strength steel. Each component is rigorously tested for forging deficiencies, and the body is heat treated and ultrasonic tested for resilience.
Technical Specifications
Product Overview

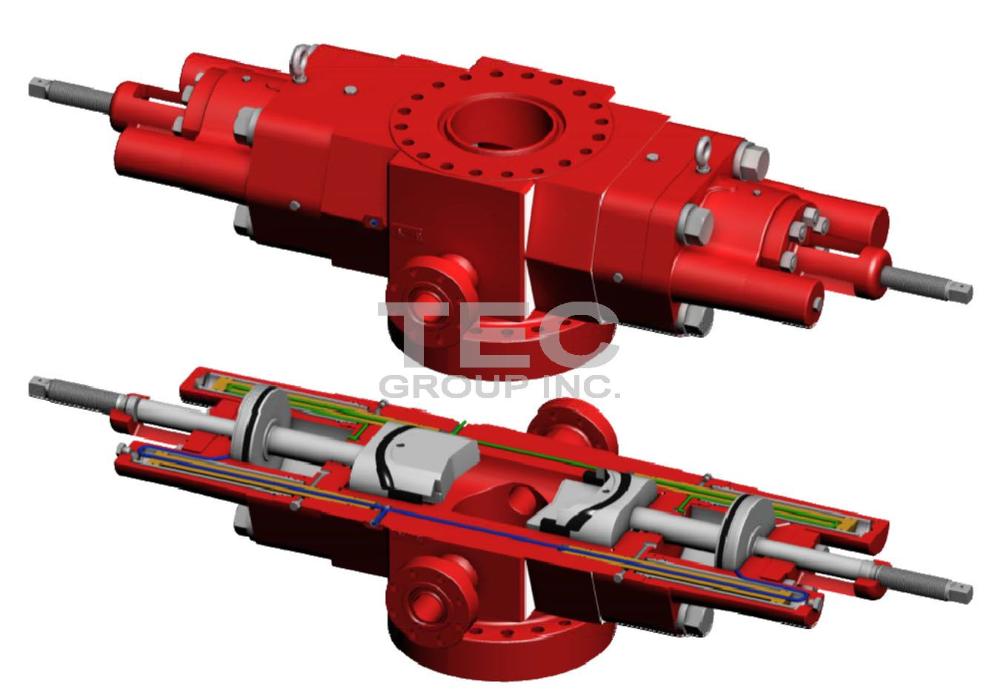

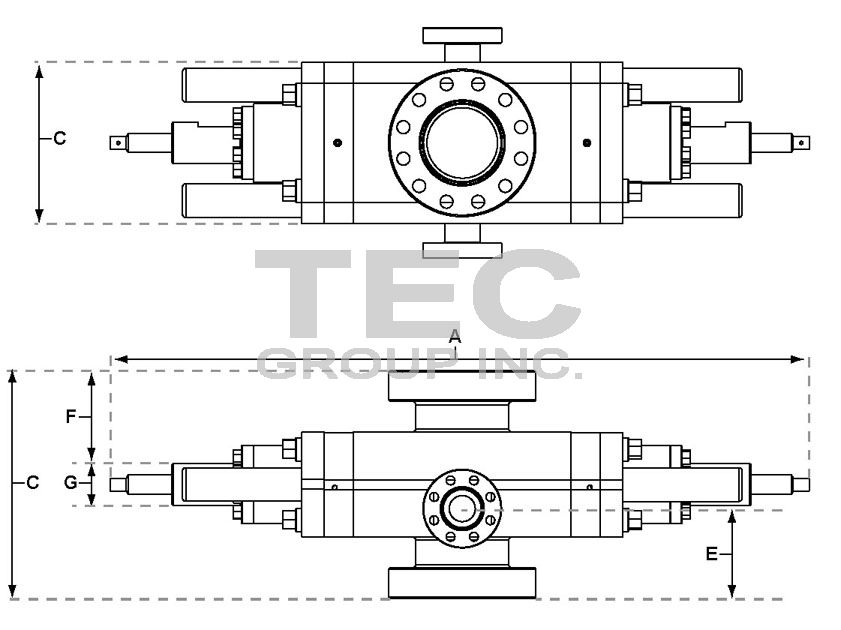

TU Ram Type Blowout Preventer
The TU Ram Type Blowout Preventer is an essential safety device designed for reliable well control during drilling and intervention operations. Engineered from high-strength alloy steel, this unit features a robust, hydraulically operated system that provides quick, secure sealing of the wellbore to prevent uncontrolled fluid releases. The design supports various ram configurations and is fully compliant with API standards, ensuring performance in high-pressure and harsh drilling environments.
Operational Specifications
Compatible Ram Types
- Blind Rams
- Shearing/Blind Rams
- Pipe Rams
- Casing Rams
- Tubing Rams
- Variable Bore Rams
- Service Suitability
- H2S Service Ready
Technical Standards
Working Pressures
10,000 psi
Working Pressure
15,000 psi
Working Pressure
- Standards Compliance
- API 6AAPI 16A
Connections & Interfaces
Hydraulic Control Connections
| Connection Type | Size |
|---|---|
| Ram & Bonnet Operation | 1" NPT |
| Wedgelock Connections | 1/2" NPT |
