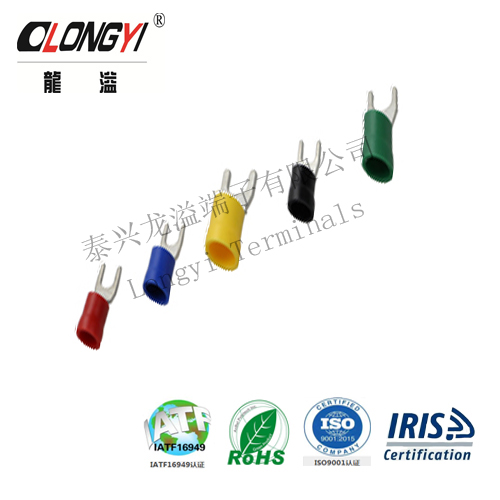

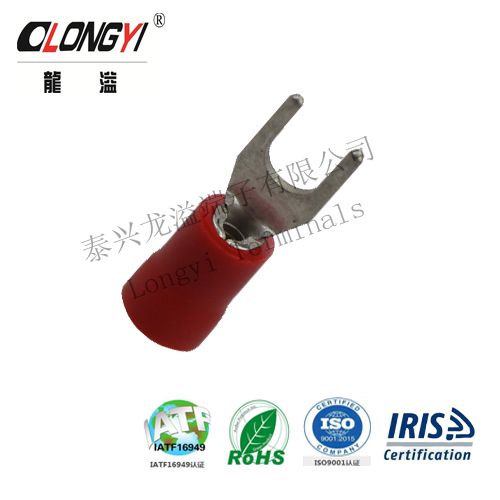

PVC Insulated Spade Cable Lug Terminal
These PVC insulated spade cable lug terminals connect copper conductors in power cables to electronic equipment. They feature tin-plated surfaces and PVC or nylon insulation for reliable performance across a working temperature range of -55°C to 150°C.
Technical Specifications
Product Overview
Cold-Pressing PVC Insulated Spade Terminals
These pre-insulated spade cable terminals are engineered for high-conductivity connections in professional power and electronic equipment. Manufactured from 99.99% pure T2 copper with a tin-plated finish, they offer excellent electrical performance and corrosion resistance. The integrated PVC and nylon insulation ensures safety and protection against environmental factors in demanding industrial conditions.
Technical Specifications
- Operating Temperature Range
- -55°C to 150°C
- Insulation Material
- PVCNylon
- Surface Treatment
- Tin-plated
- Base Material
- 99.99% Pure Copper (T2)
Certifications
Compliance and Standards
CEULJISDINAWGRoHSISO 9001:2015IATF16949
Performance Metrics
Wire Compatibility
0.25 mm2
Minimum Conductor Cross-Section
10.52 mm2
Maximum Conductor Cross-Section
Dimensions and Sizing
Detailed Specifications
| Item No | Wire Range (mm2) | Color |
|---|---|---|
| VF1.25-3YS | 0.25-1.65 | Red |
| VF2-3YS | 1.04-2.63 | Blue |
| VF3.5-4Y | 2.63-4.60 | Yellow |
| VF5.5-3Y | 4.60-6.64 | Yellow |
| VF8-5Y | 6.64-10.52 | Red |
