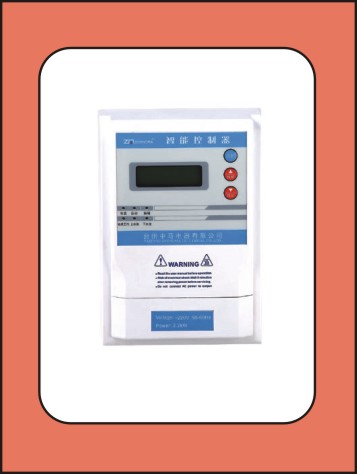

Pump Controller for Submersible and Pipeline Pumps
This pump controller is designed for efficient and reliable pump operation. It is suitable for liquid level and pressure control in submersible and pipeline pump applications.
Technical Specifications
Product Overview
Intelligent Pump Control Solution
This advanced pump controller is engineered for the automatic liquid level and pressure management of deep-well submersible and pipeline pumps. Featuring probe-free dry-running protection and integrated industrial-grade control modules, it provides a reliable and maintenance-free operation. The unit supports versatile control methods including manual-auto switching and intelligent memory functions for protective parameters.
Key Performance Metrics
30 min
Automatic Recovery Time
Technical Specifications
IP Rating
IP20
- Rated Output Power
- 2.2 kW
- Rated Working Voltage
- 100-250V / 50-60Hz
Protection Features
Protection Actuation Times
| Fault Type | Actuation Time |
|---|---|
| Short Circuit | <0.1s |
| Dry-Running | 6s |
| Overcurrent | 5s-5min |
Environmental Requirements
Operational Conditions
- Temperature range: -25℃ to +55℃
- Humidity: 20%-90% RH (no drips)
- Vibration: Under 0.6G
- Altitude: Up to 3000m above sea level
