Projector Motorized Positioning Module
This precision-engineered module is designed for business automation equipment, specifically projectors. It incorporates both mechanical and electrical components for precise movement or positioning within the projector's optical system.
Technical Specifications
Product Overview
Precision Positioning Module

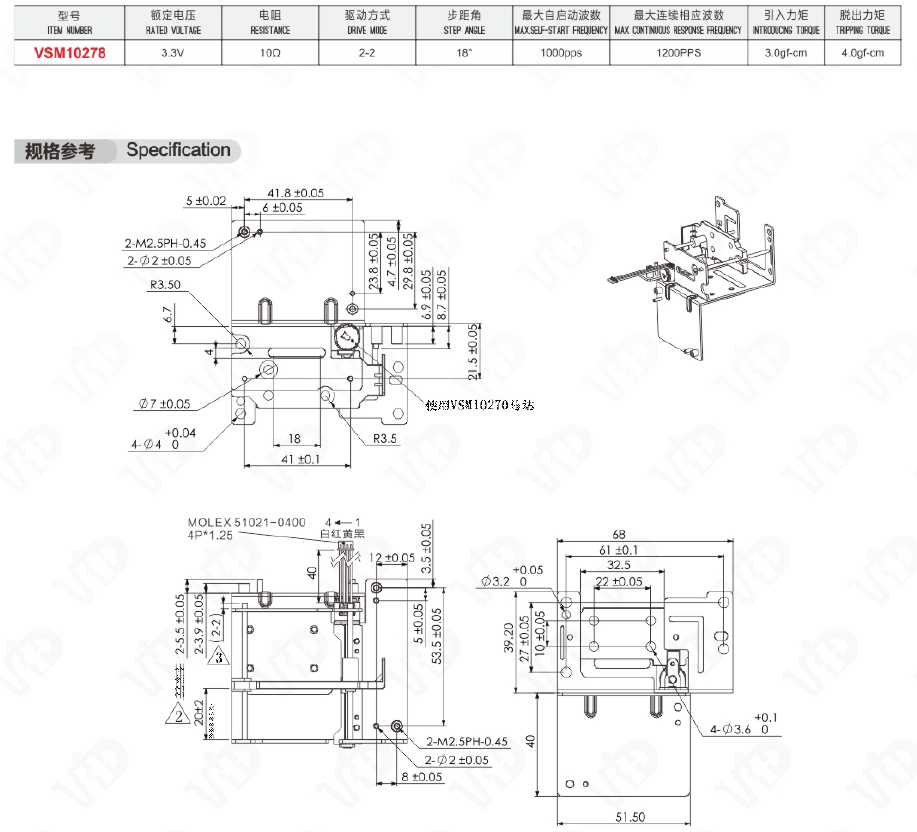

The VSM10278 is a precision-engineered motorized positioning module designed specifically for business automation equipment, such as projectors. It features a robust metal frame construction that ensures long-term durability and stability within complex optical systems. This compact unit integrates electrical and mechanical components, including a motor and wiring, to facilitate accurate movement and alignment.
Electrical Specifications
- Rated Voltage
- 3.3 V
- Resistance
- 100 Ω
- Drive Mode
- 2-2
Performance Metrics
Key Performance Metrics
18 °
Step Angle
1,000 pps
Max Self-Start Frequency
1,200 PPS
Max Continuous Response Frequency
Torque Specifications
Torque Performance
| Metric | Value |
|---|---|
| Introducing Torque | 3.0 gf-cm |
| Tripping Torque | 4.0 gf-cm |
Connectivity and Integration
- Connector Type
- MOLEX 51021-0400 4P*1.25
- Wiring Colors
- WhiteRedYellowBlack
