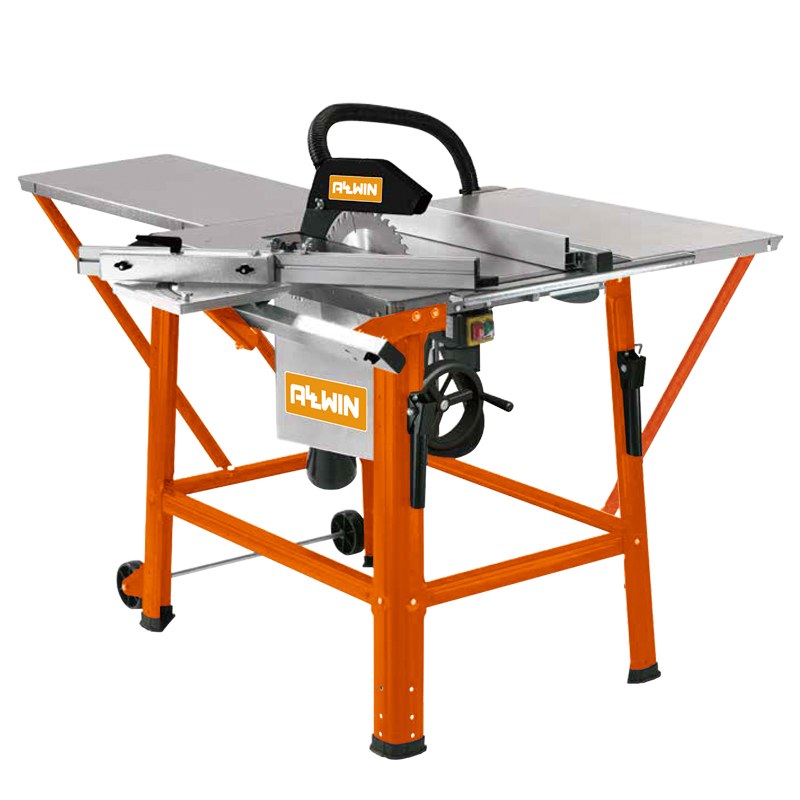

Precision Woodworking Table Saw with Adjustable Blade
This table saw is designed for precision cutting of wood and other materials. It features a robust construction with a sturdy frame and a large table surface for supporting workpieces.
Technical Specifications
Product Overview
Professional Woodworking Precision
This precision woodworking table saw is engineered for durability and versatile cutting performance in professional environments. Featuring a powerful induction motor and a robust, powder-coated sheet steel frame, it ensures stability and long-term reliability. The system includes a sliding table carriage, an adjustable ripping fence, and continuously adjustable blade height for highly accurate cuts in wood and composite materials.
Performance Metrics
Performance Highlights
83 mm
Max Cutting Depth (90°)
49 mm
Max Cutting Depth (45°)
2,800 W
Max Motor Power
2,800 RPM
Motor Speed
Technical Specifications
Power Configurations
| Voltage | Power (W) | Net Weight | Gross Weight |
|---|---|---|---|
| 230V/50Hz | 2,000 | 57 | 63 |
| 400V/50Hz | 2,800 | 60 | 65 |
Table Configuration
- Main Table: 800 x 550 mm
- Extension Table: 800 x 400 mm
- Table Height: 800 mm
- Saw Blade
- 315 x 30 x 2.5 mm TCT Long Life Blade
Product Features
- Standard Features
- Sliding Table CarriageAdjustable Tilting (0-45°)Suction GuardIntegrated Transport WheelsParallel Ripping Fence
Logistics
Container Load Capacity
- 20GP: 110 units
- 40GP: 225 units
- 40HP: 225 units
