Technical Specifications
Product Overview
Precision Drilling Solution

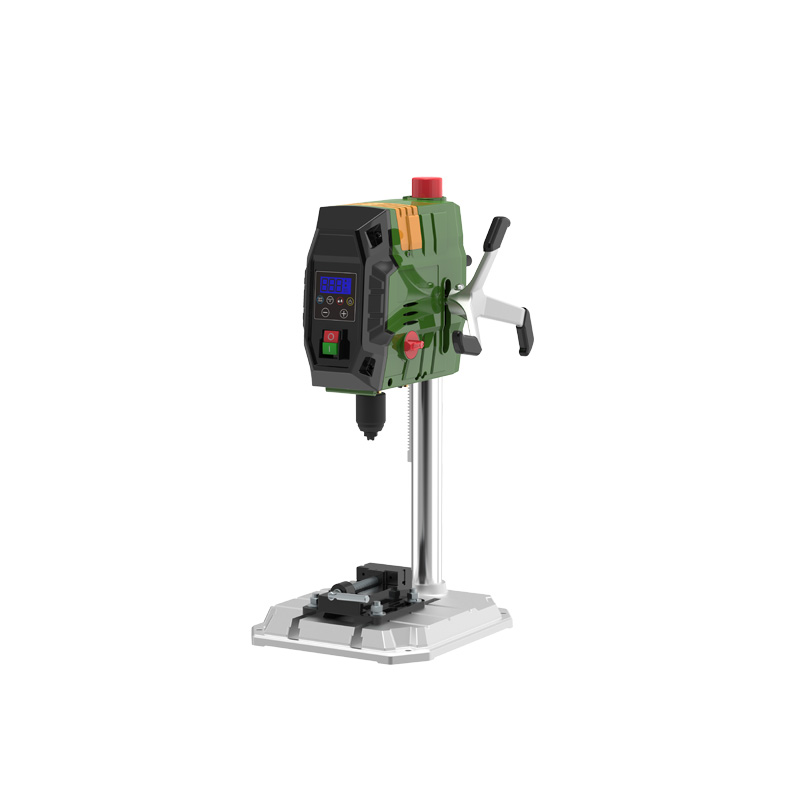

This 720W Precision Drill Press is engineered for professional and DIY applications requiring high accuracy and repeatable results. Featuring a digital speed control system with a real-time display, it allows for precise adjustments across a range of 220 to 2550 RPM to suit various materials. The robust construction, paired with a stable 340x300mm base and integrated work-holding vise, ensures maximum stability during demanding woodworking and metalworking projects.
Performance
Performance Highlights
720 W
Rated Power
13 mm
Max Chuck Capacity
80 mm
Spindle Travel
Technical Specifications
- Power Supply
- 230 V / 50 Hz
- Spindle Speed Range
- 220 ~ 2550 /min
- Swing
- 270 mm
Physical Dimensions
Weight Information
| Type | Weight (kg) |
|---|---|
| Net Weight (N.W.) | 8 |
| Gross Weight (G.W.) | 9.4 |
- Base Dimensions
- 340 x 300 mm
- Column Diameter
- 46 mm
- Machine Height
- 660 mm
Features & Safety
Core Features
- Digital speed control with LED display
- Variable speed settings for material versatility
- Adjustable worktable for precise positioning
- Transparent safety guard for debris protection
- Power switch with integrated overload protection
- Robust construction for vibration reduction
Logistics
Container Loading Capacity
| Container Type | Quantity (PCS) |
|---|---|
| 20G | 446 |
| 40GP | 912 |
| 40HQ | 1,160 |
- Packaging Dimensions
- 620 x 356 x 255 mm
