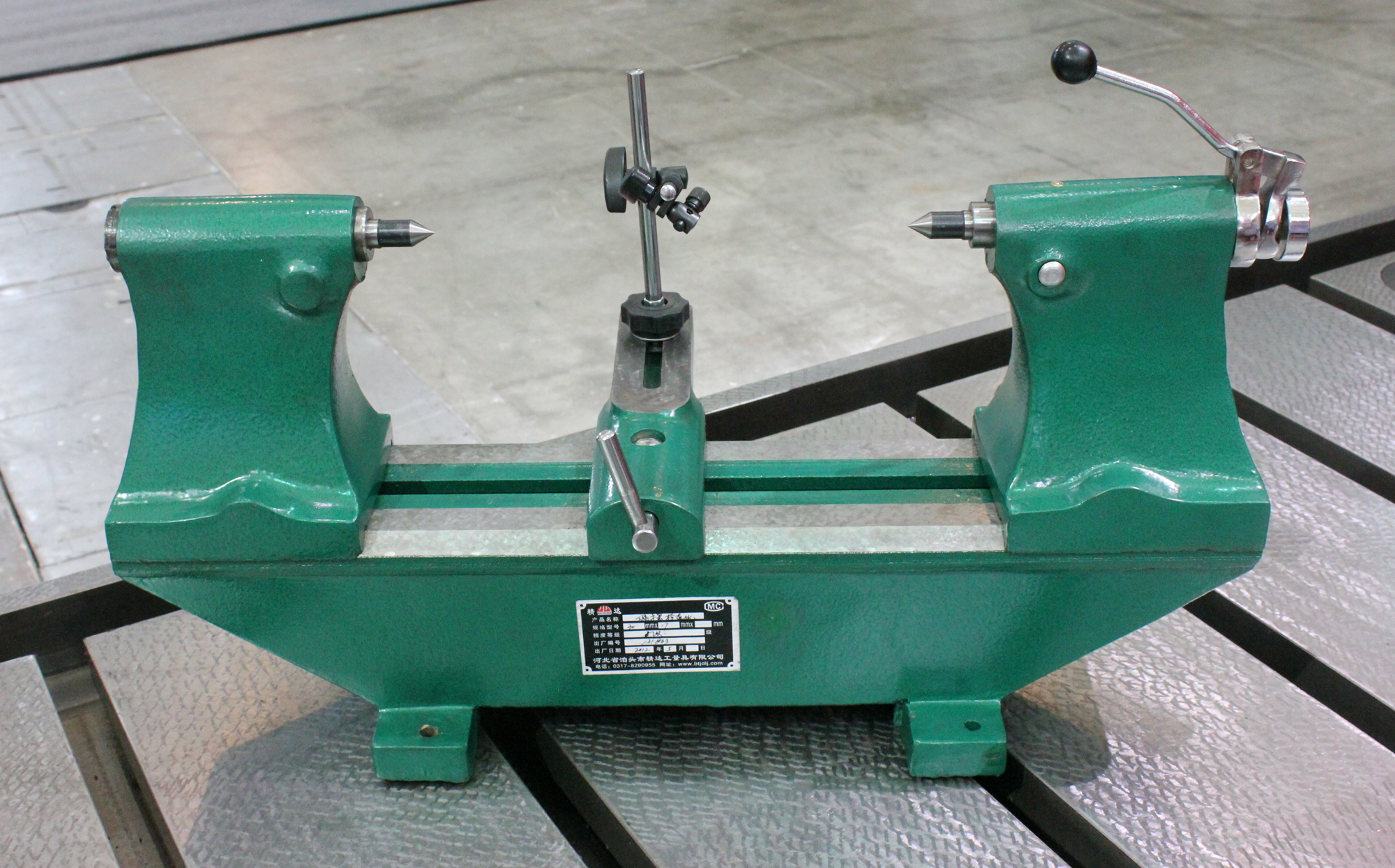

Precision Bench Center for Concentricity Measurement
This bench center is used to inspect axles, machine parts, and plate-type products. It can inspect ovality, radial runout, and accuracy error of the end face.
Technical Specifications
Product Overview
Precision Measurement Capabilities
This precision bench center is engineered for the rigorous inspection and measurement of cylindrical workpieces. It provides a stable and highly accurate platform for verifying concentricity and trueness during quality control or machining tasks. With its hardened centers and adjustable design, this tool is an essential asset for professional machinists and toolmakers seeking consistent, high-tolerance results.
Technical Specifications
Measuring Length Options
- 300
- 500
- 1,000
- 1,500
- Max Diameter of Tested Part
- 270 mm
- Conformity
- Morse No.2 FinialHigh Precision
Performance Metrics
Key Precision Metrics
0.005 mm
Radial Circular Bound (Morse No.2)
0.004 mm
Axle Parallelism (within 100mm)
