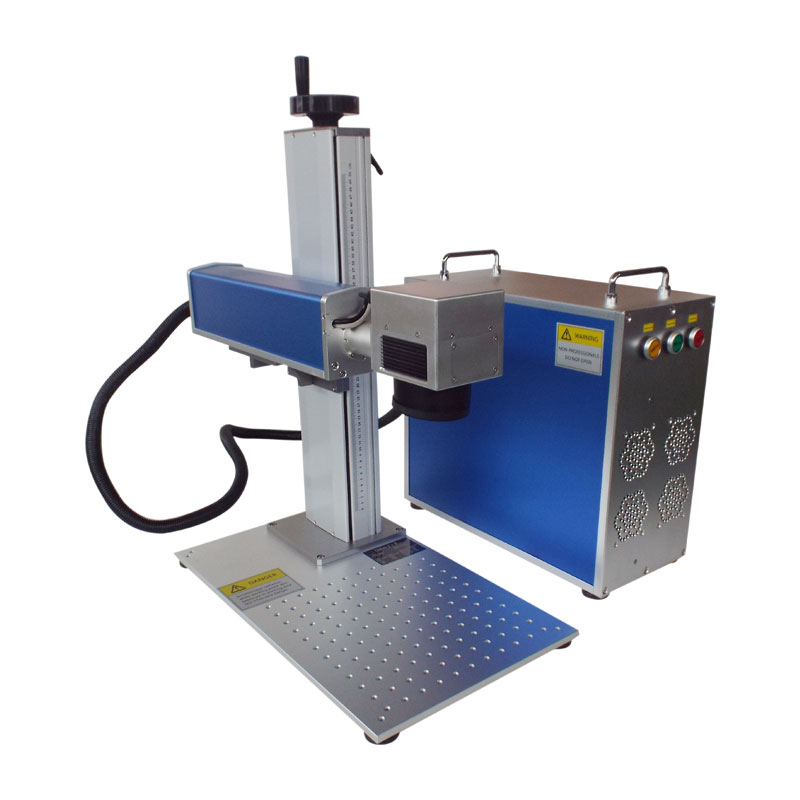

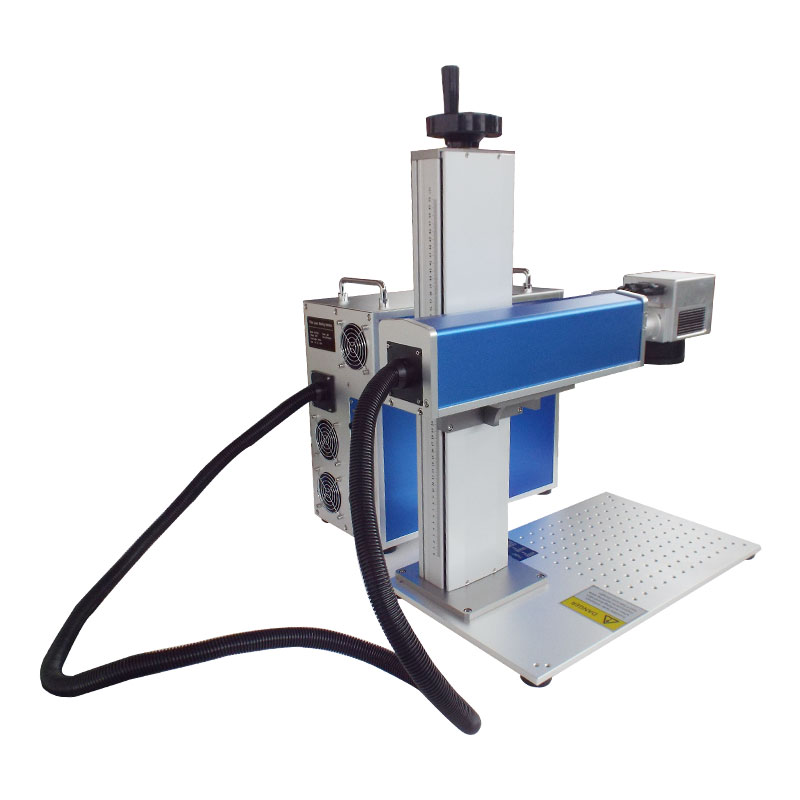

Portable Split Fiber Laser Marker

This portable split fiber laser marker is designed for precision marking on a variety of materials. Its split design allows for flexible integration into different production environments.

Request a Quote Download PDFPDF

Portable Split Fiber Laser Marking Machine - Image 1

Technical Specifications

Overview

Precision Portable Laser Marking

This portable split fiber laser marking machine is designed for high-precision, permanent marking on a wide range of materials including metals and non-transparent plastics. Its compact, split design allows for flexible integration into various production environments, from small workshops to industrial assembly lines. Featuring a high-speed scanning system and user-friendly software, this machine delivers consistent, high-quality results for logos, serial numbers, barcodes, and intricate designs.

Technical Specifications

Performance Metrics

7,000 mm/s

Marking Speed

100,000 hours

Laser Source Lifetime

0.001 mm

Repeatable Accuracy

Machine Specifications

Parameter	Value
Laser Power	20W
Wavelength	1064nm
Cooling System	Air Cooling
Modulation Frequency	20kHz - 200kHz
Line Width	0.01 - 0.1mm
Working Voltage	AC220V (110V optional)

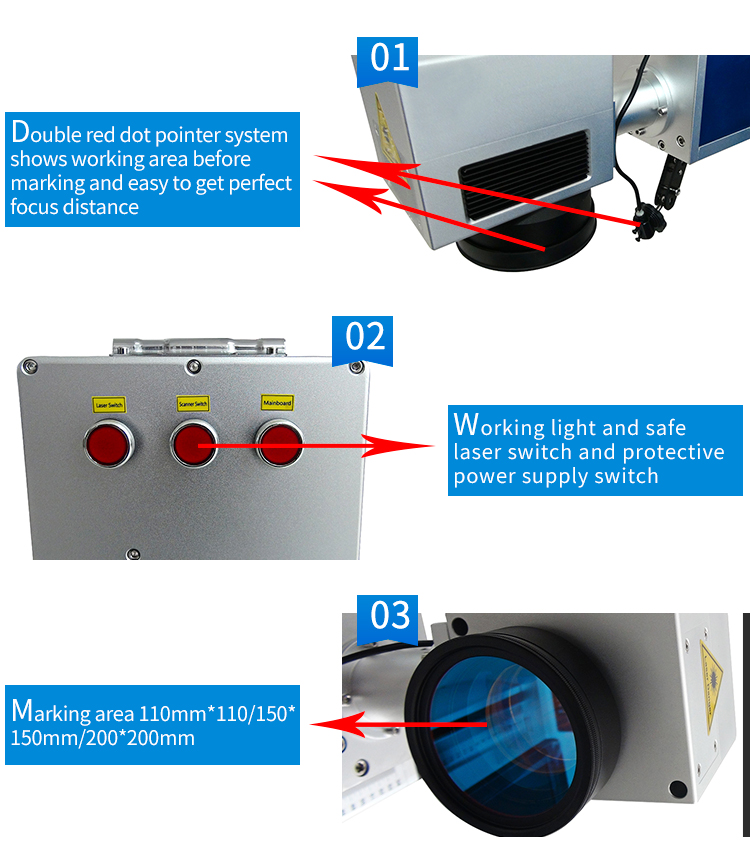

Double red dot pointer system for marking area preview — Features a double red dot pointer system for easy marking area preview and perfect focus distance adjustment.

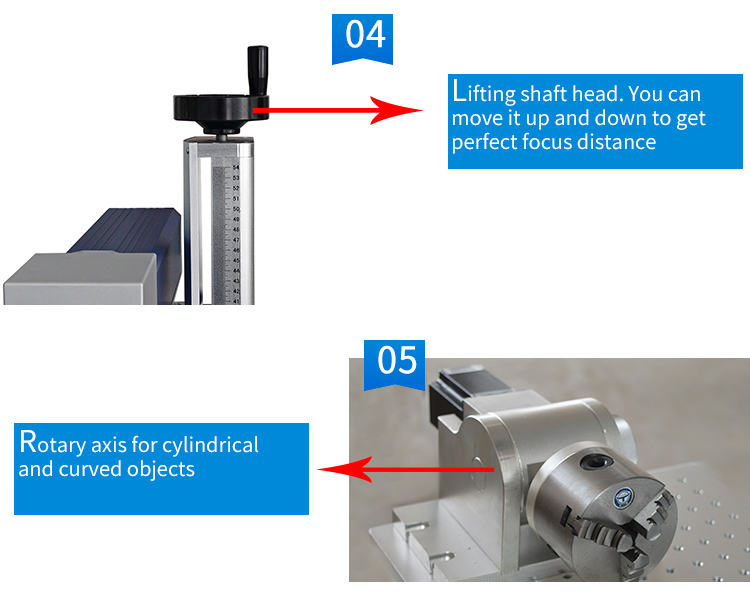

Lifting shaft and rotary axis attachment — The lifting shaft allows for precise vertical adjustment, while the rotary axis enables marking on cylindrical and curved objects.

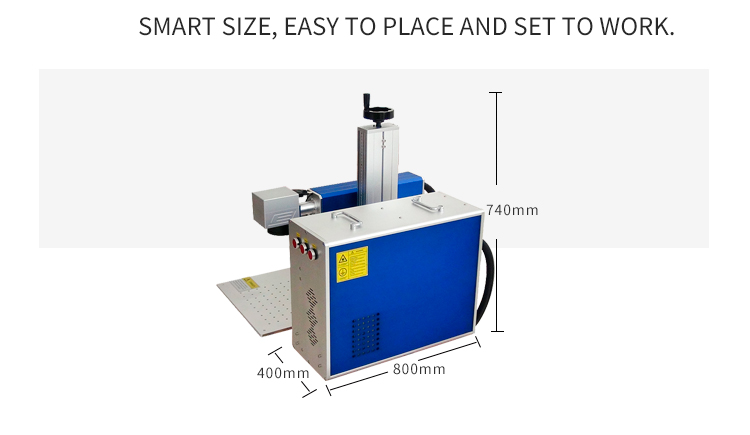

Machine dimensions diagram — Compact design with dimensions of 800mm x 400mm x 740mm, ideal for space-constrained environments.

Applicable Materials & Industry

Common Industry Applications

Industrial Bearings & Gears
Auto Parts
Hardware Tools
Aerospace Components
Integrated Circuit Chips
Computer Accessories
Watches & Jewelry
Electronics & Communication
Food Packaging
Wire & Cable

Compatible Materials: CopperAluminumStainless SteelIronHard AlloyChromeTitaniumGoldSilverPlasticsNon-transparent Non-metals

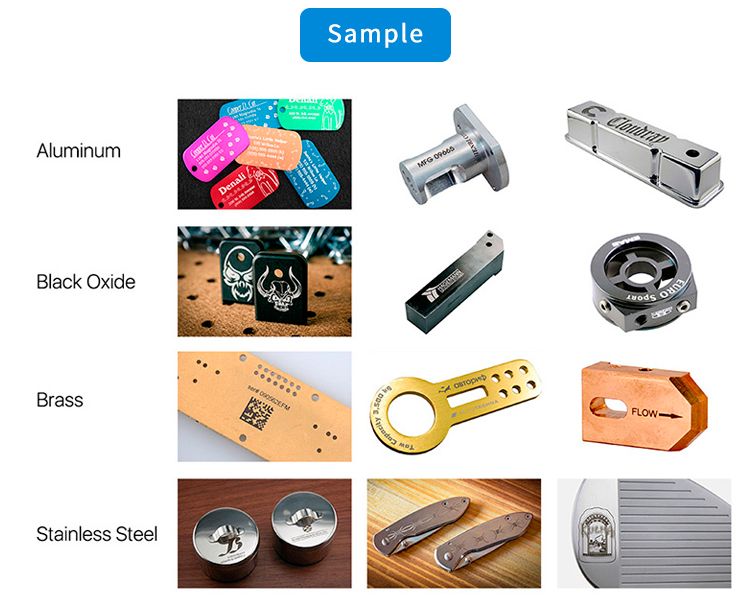

Examples of laser marked materials — Showcasing high-precision marking on various materials including aluminum, brass, and stainless steel.

Software & Operation

Advanced Control Interface

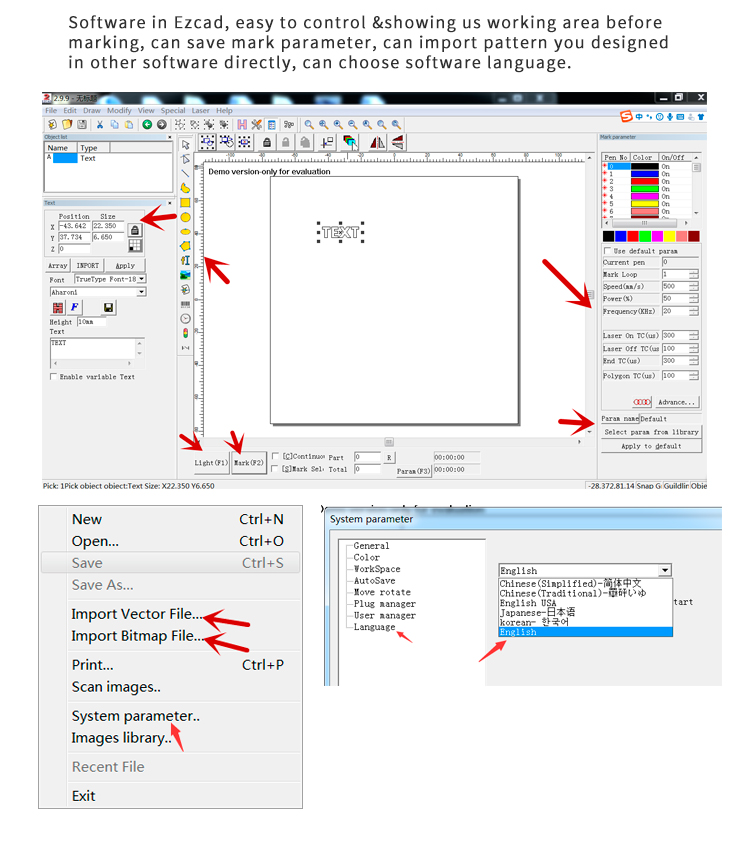

The system utilizes professional marking software that allows for easy control and visualization of the working area before marking. Users can import patterns designed in other software, save custom marking parameters, and adjust settings such as speed, power, and frequency. The interface supports multiple languages including English, Chinese, Japanese, and Korean.
