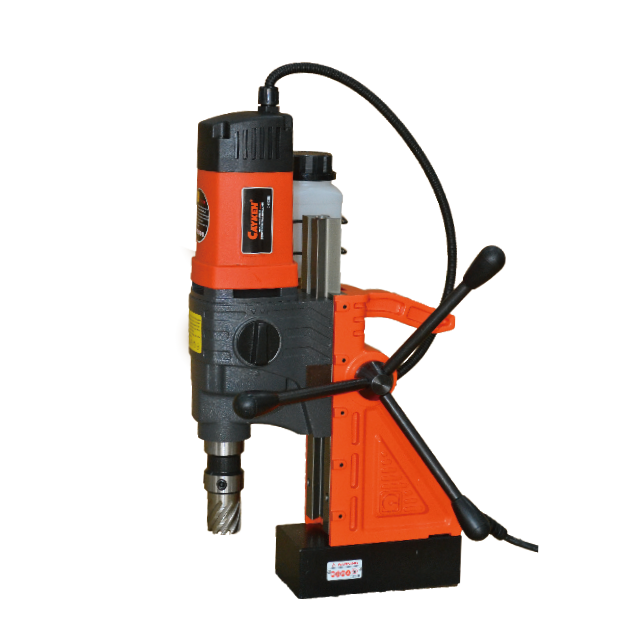

Portable Magnetic Drill Press
This portable drilling machine is designed for drilling large diameter holes in steel. It features a powerful motor and a strong magnetic base that provides excellent stability and holding power.
Technical Specifications
Overview
Professional Magnetic Drilling Solution
This portable magnetic drill press is engineered for heavy-duty steel fabrication and on-site drilling tasks. Featuring a powerful 1650W motor and a high-adhesion magnetic base, it provides the stability and performance required for precise hole drilling in various metal thicknesses. Designed for efficiency and operator comfort, it is an essential tool for construction, bridge building, and shipbuilding industries.
Performance Metrics
Motor Power
1,650 W
Power
Magnet Adhesion
16,500 N
Adhesion Force
Drilling Capabilities
- Max Annular Cutter
- 50 mm
- Cutting Depth
- 45 mm
- Stroke
- 230 mm
Technical Specifications
- No-load Speed
- 280 / 510 RPM
- Supported Voltages
- 110V220V230V240V
- Frequency
- 50-60Hz
Logistics
Weight Details
| Type | Weight |
|---|---|
| Gross Weight | 17.8 kg |
| Net Weight | 14.8 kg |
- Package Size
- 58 x 38 x 18 cm
