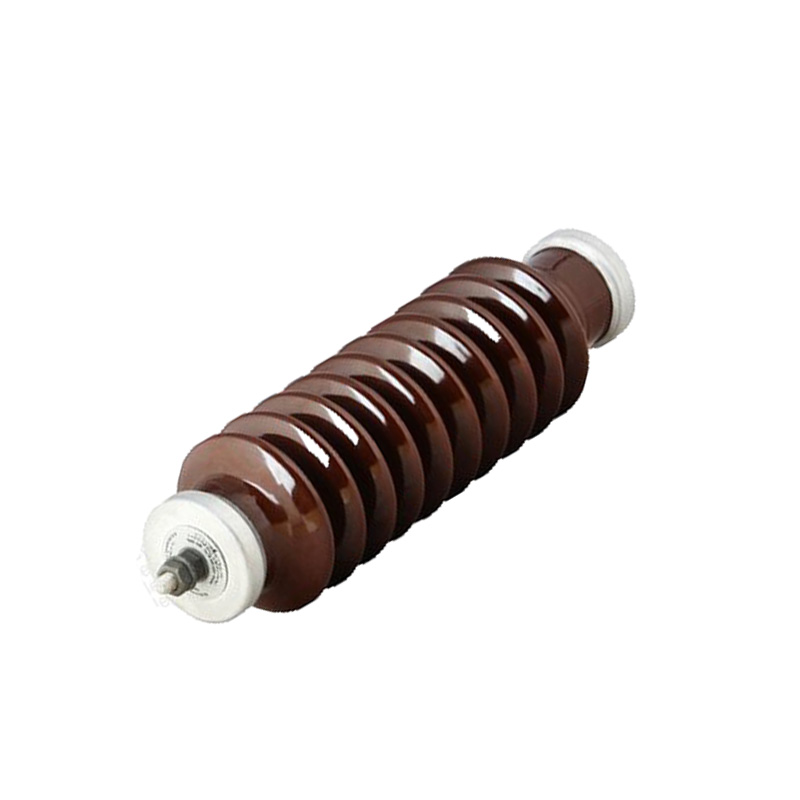

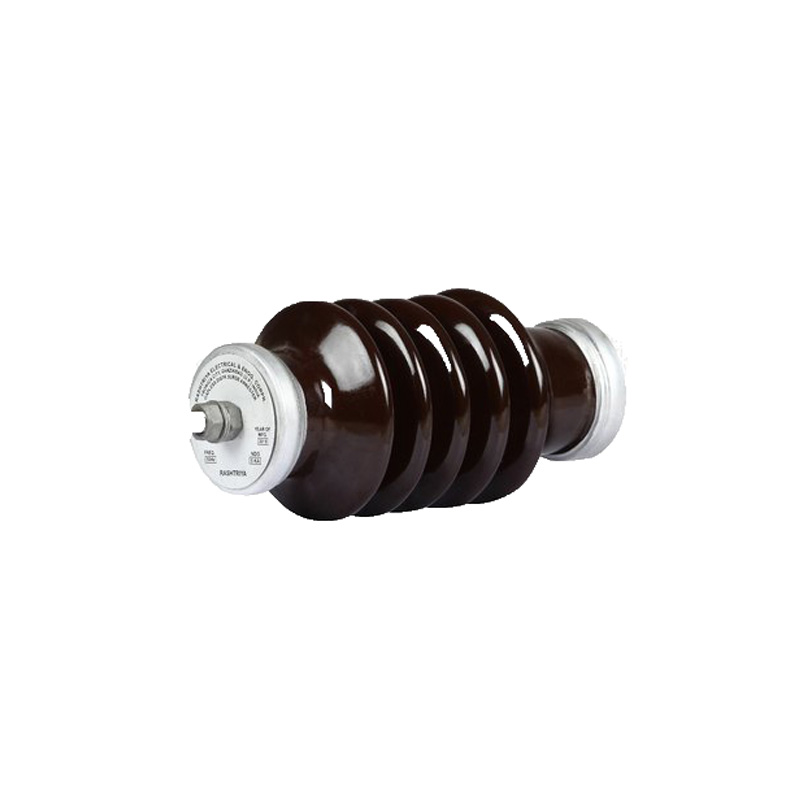

Porcelain Housing Surge Arrester
This surge arrester protects equipment by limiting voltage during surge events. It diverts surge current to ground, preventing continued flow and damage to parallel-installed equipment.
![[copy]Porcelain Surge Arrester - Image 1](https://cdn.merheinflare.com/public-site/products/copyporcelain-surge-arrester/2.jpg)
![[copy]Porcelain Surge Arrester - Image 2](https://cdn.merheinflare.com/public-site/products/copyporcelain-surge-arrester/1.jpg)
![[copy]Porcelain Surge Arrester - Image 3](https://cdn.merheinflare.com/public-site/products/copyporcelain-surge-arrester/0.jpg)
Technical Specifications
Product Overview
High-Voltage Overvoltage Protection
This porcelain housing surge arrester is a critical protective device designed to limit voltage on electrical equipment by discharging or bypassing surge currents. It effectively diverts lightning strikes and switching surges to the ground, protecting parallel-installed equipment in utility substations and distribution networks. Built to meet rigorous international standards, it ensures system stability and prevents continued follow current flow.
Technical Standards
- Compliance Standards
- ANSI C62.11IEEE C62.11IEC 60099-4
Key Performance Metrics
Performance Highlights
150 Hz
Frequency
Design & Construction
Environmental Resistance
Weather ResistantHarsh Environment SuitableOutdoor Rated
- Housing Material
- High-grade ribbed porcelain for superior insulation and arc quenching
Applications
Typical Installation Sites
- Utility Substations
- Padmounted Transformers
- Pole-mounted Riser Poles
- Transmission and Distribution Lines
- Circuit Breakers
Certifications
- Quality & Safety Certifications
- ISO 9001CERoHSCCCIAF
Commercial Terms
- Accepted Payment Methods
- T/TL/CPayPalWestern Union
- Sample Availability
- Free samples available for most items; specific items subject to discussion.

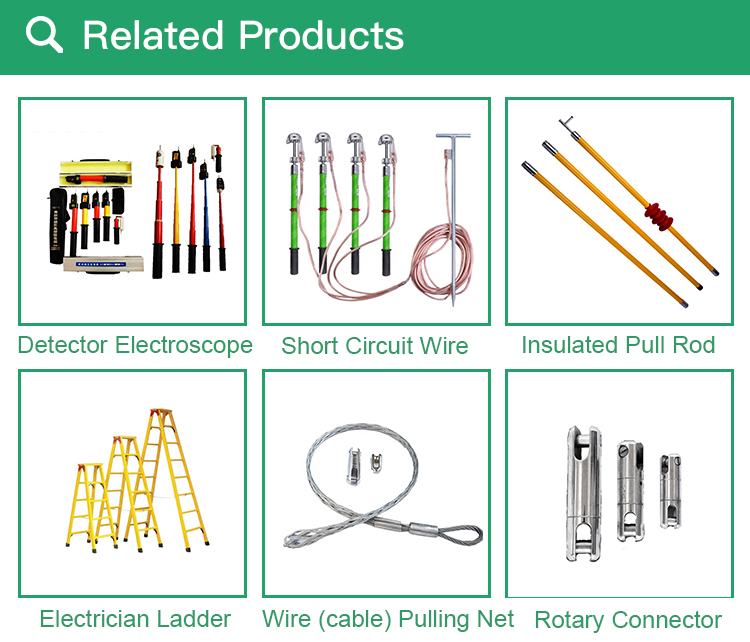

Related Equipment
Complementary Maintenance Tools
- Detector Electroscope
- Short Circuit Wire
- Insulated Pull Rod
- Electrician Ladder
- Wire Pulling Net
- Rotary Connector
