Polyester Webbing Sling with Eyes
This sling is constructed from high-strength polyester webbing. It features reinforced eyes for secure and reliable lifting in various industrial applications.
Technical Specifications
Product Overview
Professional Grade Polyester Webbing Slings
These high-strength 100% polyester webbing slings are engineered for heavy-duty lifting and secure cargo handling. Available in single-ply through four-ply configurations, they offer exceptional durability, flexibility, and resistance to abrasion and UV degradation. Designed with reinforced eyes and optional metal fittings, these slings provide reliable performance for industrial, construction, and rigging applications.
- Certifications
- CEGSTÜV Rheinland Certified
Construction & Design
Available Ply Layers
- Single-ply
- Double-ply
- Three-ply
- Four-ply
Eye Configurations
- Flat eye
- Reverse eye
- Eye folded 1/2 from one side
- Eye folded 1/2 from two sides
- Eye folded 1/3
- Material

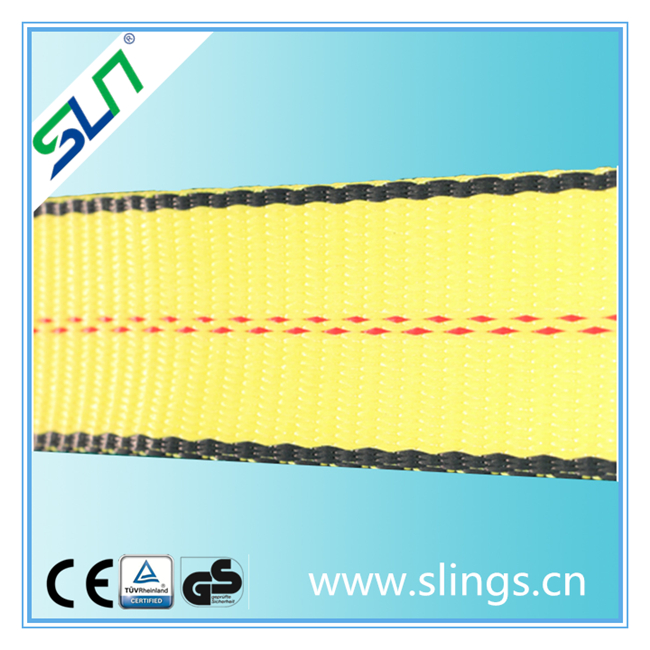

- 100% High-strength Polyester
Technical Specifications
Performance Metrics (Model W01-01)
1,000 kg
Working Load Limit
7.5 mm
Approx. Thickness
350 mm
Eye Length
Model Specifications Comparison
| Art No. | WLL (kg) | Thickness (mm) | Width (mm) | Min Length (m) | Max Length (m) |
|---|---|---|---|---|---|
| W01-01 | 1,000 | 7.5 | 25 | 1.1 | 100 |
| W01-02 | 2,000 | 7.5 | 50 | 1.1 | 100 |
Safety & Application
Safety Factors Available
5:16:17:1
Key Features
- Reinforced edges with durable stitching
- Resistance to water absorption
- UV degradation resistance
- High flexibility for load contouring
- Optional metal end fittings
