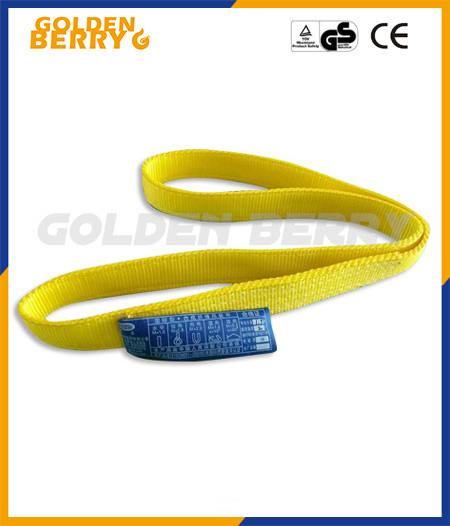

Polyester Webbing Sling
This flat lifting belt is made of 100% PES and can be used with ring eye or metal parts to improve strength. It provides a broad, smooth bearing surface, especially beneficial when lifting soft surfaces where contact with metal is undesirable.
Technical Specifications
Overview
High-Strength Polyester Webbing Sling
This flat lifting belt is crafted from 100% high-strength polyester (PES) for exceptional durability and load-bearing performance. Designed for industrial lifting, it features a flat, wide surface that provides stability and reduces the risk of surface damage to delicate loads. The sling is available in a wide range of capacities from 0 to 50 tons and lengths from 1 to 100 meters, featuring reinforced lifting eyes for secure and reliable attachment.
Technical Specifications
Construction Layers
Single LayerDouble Layer
- Material
- 100% High-Strength Polyester (PES)
- Load Capacity Range
- 0 - 50 tons
- Length Range
- 1 - 100 meters
- Available Safety Factors
- 5:16:17:1
Performance Data
Standard Load Capacity Table (EB-B Series)
| Model | Straight Lift (kg) | Width (mm) |
|---|---|---|
| EB-B-01 | 1,000 | 25 |
| EB-B-02 | 2,000 | 50 |
| EB-B-03 | 3,000 | 75 |
| EB-B-04 | 4,000 | 100 |
| EB-B-05 | 5,000 | 125 |
| EB-B-06 | 6,000 | 150 |
| EB-B-08 | 8,000 | 200 |
| EB-B-10 | 10,000 | 250 |
| EB-B-12 | 12,000 | 300 |
Key Features
Why Choose This Sling
- Non-damaging to painted or delicate surfaces

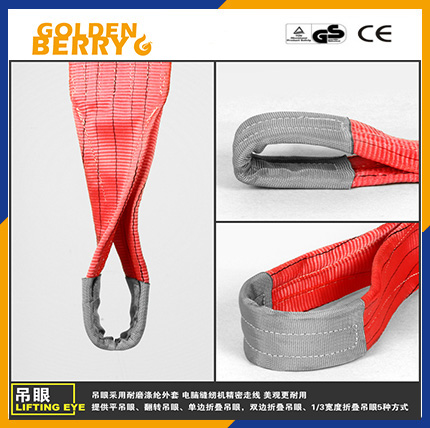

- Reinforced lifting eyes for improved strength
- Wide, smooth bearing surface for stability
- Color-coded for easy capacity identification
- Available with various eye folding methods
