Technical Specifications
Product Overview

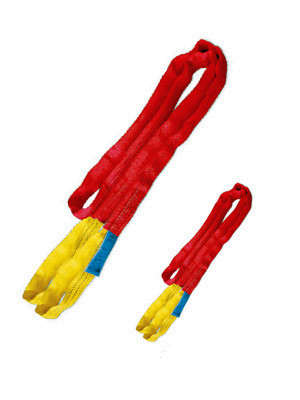

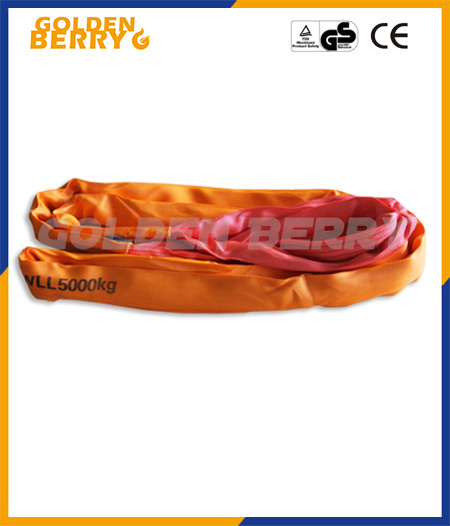

High-Performance Polyester Round Lifting Sling
These circular lifting slings are engineered for safe, reliable heavy load management in construction and industrial environments. Designed with high-tenacity polyester, they offer an exceptional strength-to-weight ratio while remaining soft and flexible for easy handling in tight spaces. The slings feature color-coded identification for quick capacity verification and are fully compliant with international safety standards, ensuring non-conductive and damage-free lifting operations.
Key Features
- Key Advantages
- Non-conductiveAbrasion-resistantColor-coded capacityHigh strength-to-weight ratioSoft and flexibleProtective sleeve compatible
Compliance & Standards
Industry Standards
EN1492-2:2000JB/T8521-2007
Technical Specifications
Load Capacity and Dimensions
| Model | Straight Load (kg) | Knot Load (kg) | Width (mm) |
|---|---|---|---|
| EA-A-01 | 1,000 | 800 | 50 |
| EA-A-02 | 2,000 | 1,600 | 60 |
| EA-A-03 | 3,000 | 2,400 | 70 |
| EA-A-04 | 4,000 | 3,200 | 75 |
| EA-A-05 | 5,000 | 4,000 | 80 |
| EA-A-06 | 6,000 | 4,800 | 90 |
