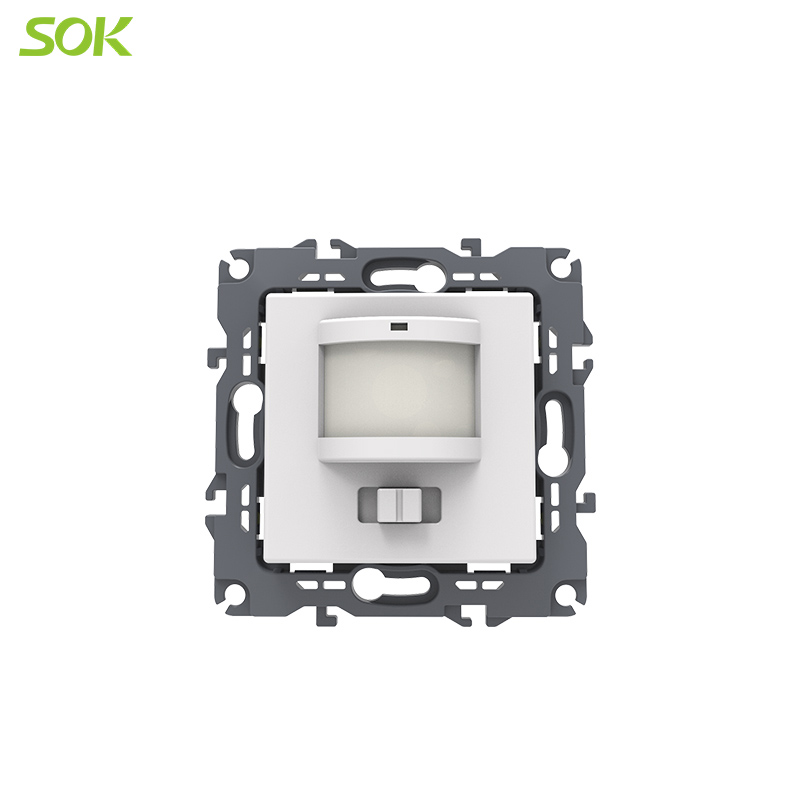

PIR Motion Sensor Light Switch
This motion detector features a 3-line modular design and a wide detection angle. It is suitable for use in corridors, warehouses, garages, and basements to save energy.
Technical Specifications
Product Overview
Intelligent Motion Sensing
This 3-line modular PIR motion detector is designed to optimize energy efficiency in corridors, warehouses, garages, and basements. Featuring advanced pyroelectric infrared technology with a customized IC chip, it delivers high sensitivity and excellent interference resistance. The switch offers three operational modes—ON, OFF, and PIR—allowing for flexible lighting control tailored to your specific environment.
Technical Specifications
Electrical Ratings
250 V
Max Voltage
400 W
Max Load (Incandescent)
50 Hz
Frequency
Detection Parameters
- Detection Angle: 110°
- Detection Distance: 5-7 meters (at 25°C)
- Light Sensitivity: 3-7 LUX (adjustable)
- Time-Delay: 30-260 seconds (adjustable)
Output Power Compatibility
| Lamp Type | 3-Line Model | 2-Line Model |
|---|---|---|
| Incandescent | 0-400W | 5-200W |
| Fluorescent | 0-60VA | 5-50VA |
| LED | 0-40VA | 5-30VA |
Installation & Design
Physical Characteristics
- Dimensions: 82 x 82 x 50 mm
- Material: Polycarbonate (PC)
- Connection: Screw terminal
- Installation: Indoor
Available Colors
WhiteRose GoldChampagneBronzePlatinumLuxury Gold
Environmental Conditions
Operating Environment
50 °C
Max Temp
-20 °C
Min Temp
90 %RH
Max Humidity
