Photovoltaic Surge Protection Device
This surge protection device is designed to protect photovoltaic systems from surge events. It features a Ucpv of 1500VDC, an In of 20kA, an Imax of 40kA, and an Up of 5.0kV.
Technical Specifications
Product Overview
Professional PV Surge Protection

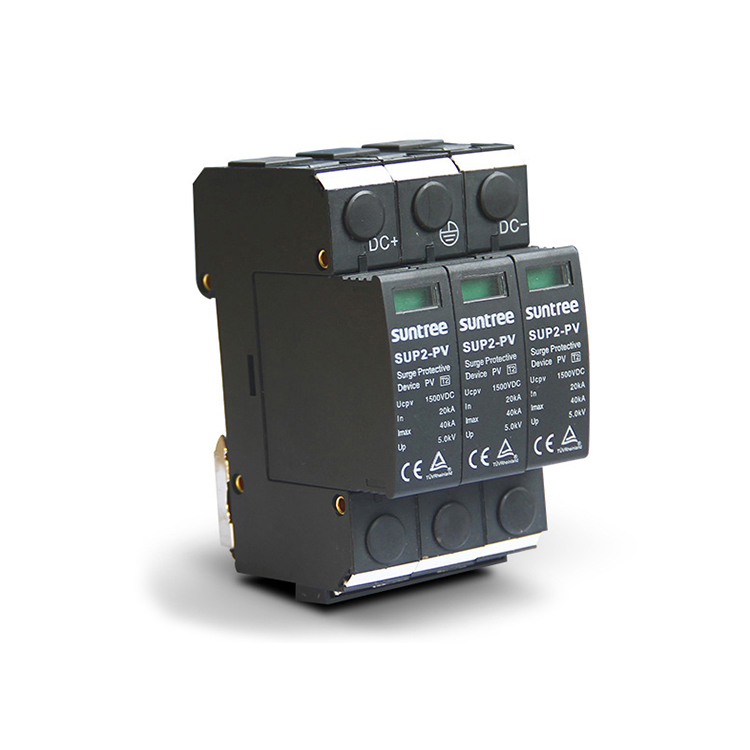

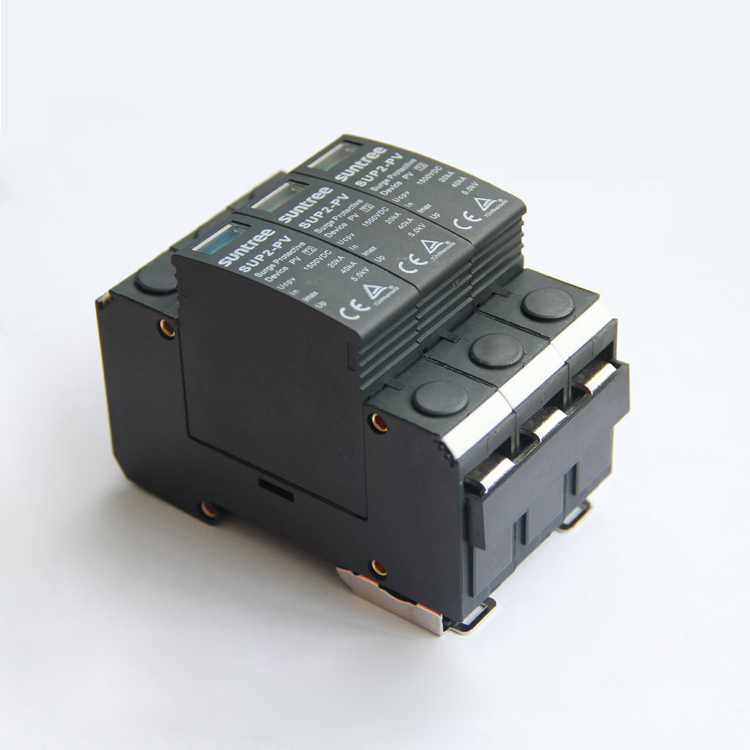

The SUP2-PV surge protective device is engineered specifically for high-capacity photovoltaic systems operating at 1500VDC. It provides robust protection against transient overvoltages and lightning strikes, utilizing advanced arc extinction and integrated thermal protection technology. Designed for reliability and safety, this modular device ensures the longevity of critical solar power infrastructure.
Technical Specifications
Performance Metrics
1,500 VDC
Maximum Operating Voltage (Ucpv)
20 kA
Nominal Discharge Current (In)
40 kA
Max Discharge Current (Imax)
5 kV
Voltage Protection Level (Up)
- Certifications
- CETUV
Physical Features
Key Functional Features
- Modular design for easy element replacement
- Built-in thermal protection circuit
- Advanced arc extinction technology
- Power status visual indicator
- Mounting Style
- DIN rail mounting
