Technical Specifications
Overview
Reliable Solar Power Management

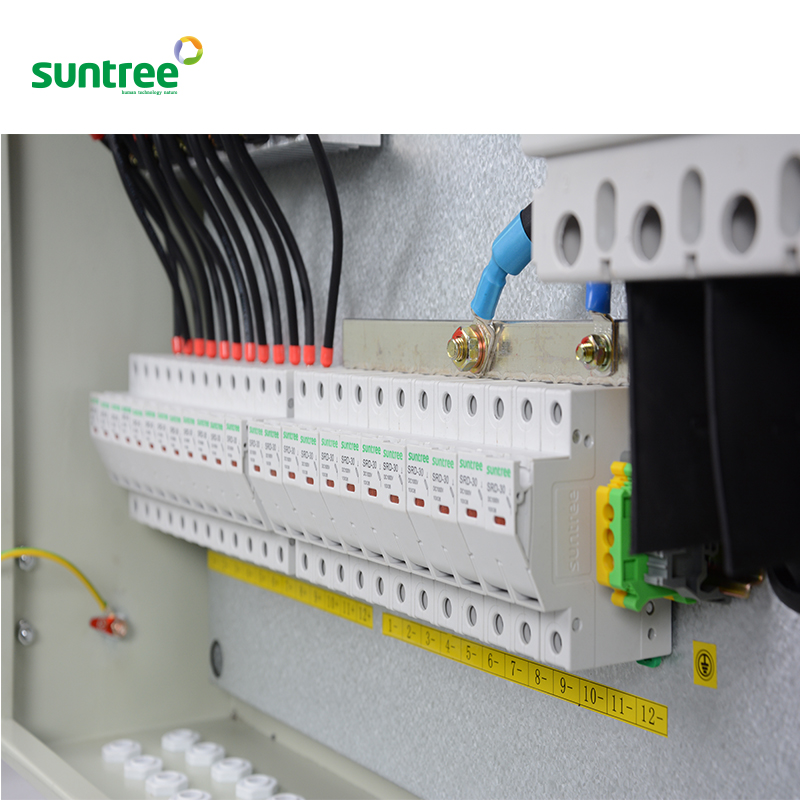

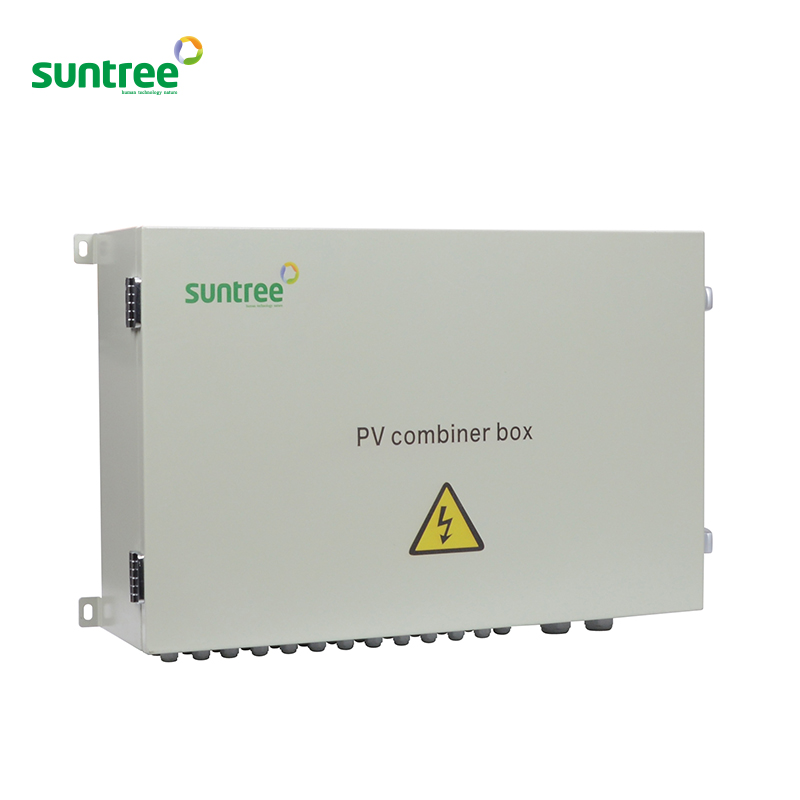

This photovoltaic DC combiner box is engineered for robust solar system integration, offering efficient circuit consolidation and essential overcurrent protection. Constructed with a durable, weather-resistant enclosure, it ensures long-term performance in demanding outdoor environments. The unit simplifies system wiring and maintenance, providing a safe and organized connection point for your solar arrays.
Technical Specifications
Ingress Protection
IP65WaterproofAnti-dustAnti-ultraviolet
Surge Protection Performance
1,000 VDC
Max Voltage
40 kA
Max Surge Current (Imax)
20 kA
Nominal Discharge Current (In)
3.3 kV
Voltage Protection Level (Up)
- Enclosure Material
- Cold rolled steel and metal
Compliance & Standards
Standards Compliance
- IEC62109-1:2010
- IEC61439-1:2011
- IEC61439-2:2011
- EN62109-1
- CGC/GF 037:2014
- Certifications
- TUVCEISO9001
Service & Ordering
Service Capabilities
| Service Type | Availability |
|---|---|
| ODM Services | Accepted |
| Trial Orders | Supported |
