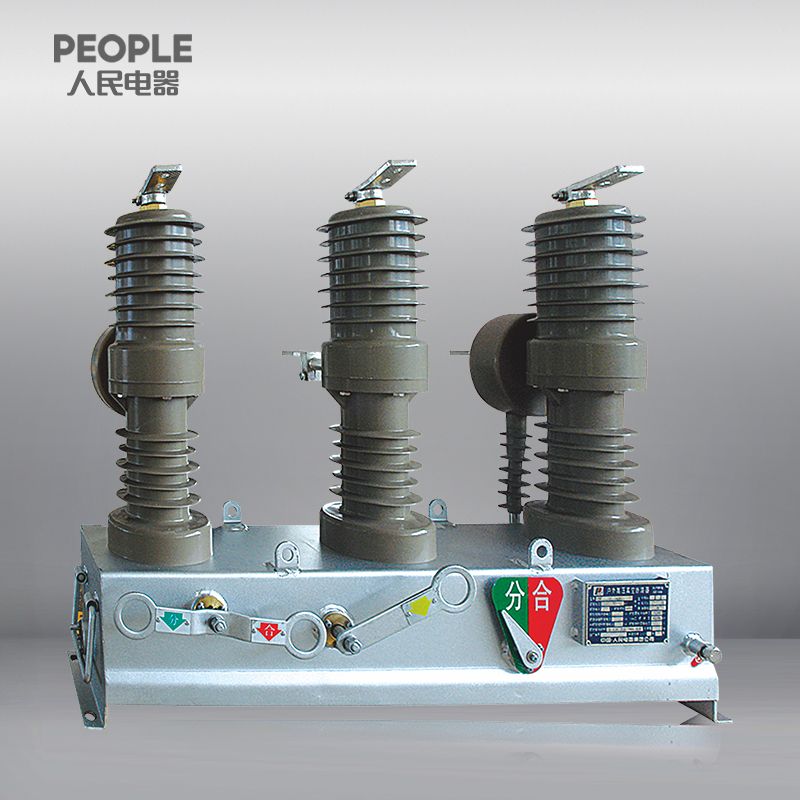

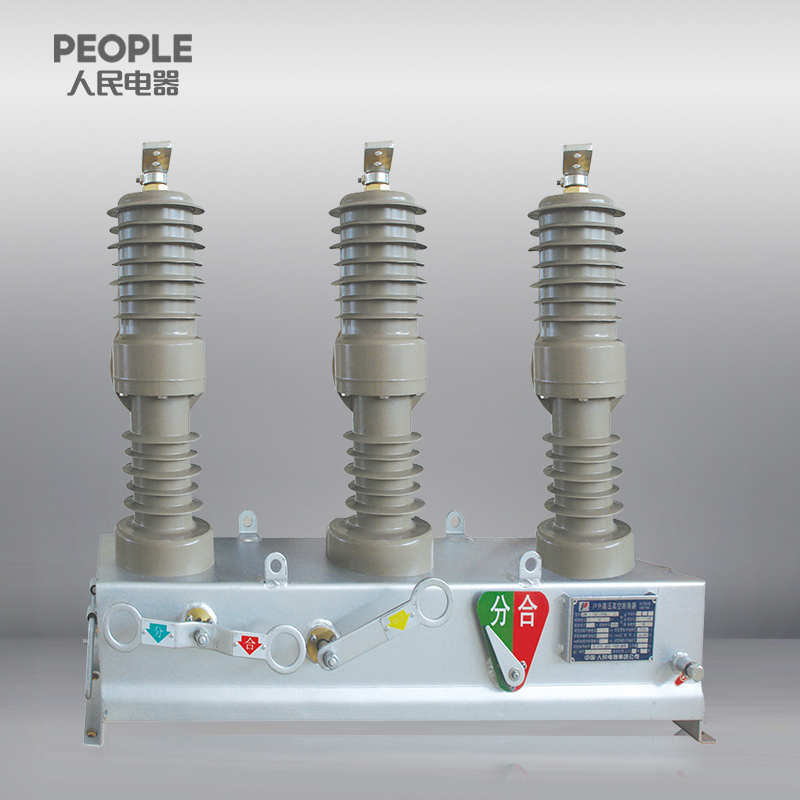

Outdoor High Voltage AC Vacuum Circuit Breaker
The outdoor high voltage AC vacuum circuit breaker is designed for reliable protection and control of electrical distribution systems. It features robust construction for outdoor environments, providing stable performance under various weather conditions.
Technical Specifications
Product Overview
Robust Outdoor Power Distribution Protection
The ZW32 series is an outdoor high-voltage AC vacuum circuit breaker designed for reliable operation in 12kV power distribution networks. It integrates advanced vacuum interrupter technology for efficient arc quenching and minimal maintenance. The system includes a sophisticated controller with digital display capabilities, allowing for local control, remote monitoring, and seamless integration with communication systems like GPRS and GSM.
Electrical Ratings
Rated Voltage
12 kV
Rated Voltage
- Rated Current
- 630 A
- Rated Short-Circuit Breaking Current
- 20 kA
Technical Specifications
Integrated System Parts
- Circuit breaker (with operation mechanism)
- Controller
- Control power source
- Operating Frequency
- 50Hz
- Key Features
- Overload protectionShort-circuit protectionMicro-processor controlDigital display panelGPRS/GSM connectivityRemote data communication
Compliance and Standards
Standards Met
IEC CompliantANSI Compliant
