Technical Specifications
Product Overview

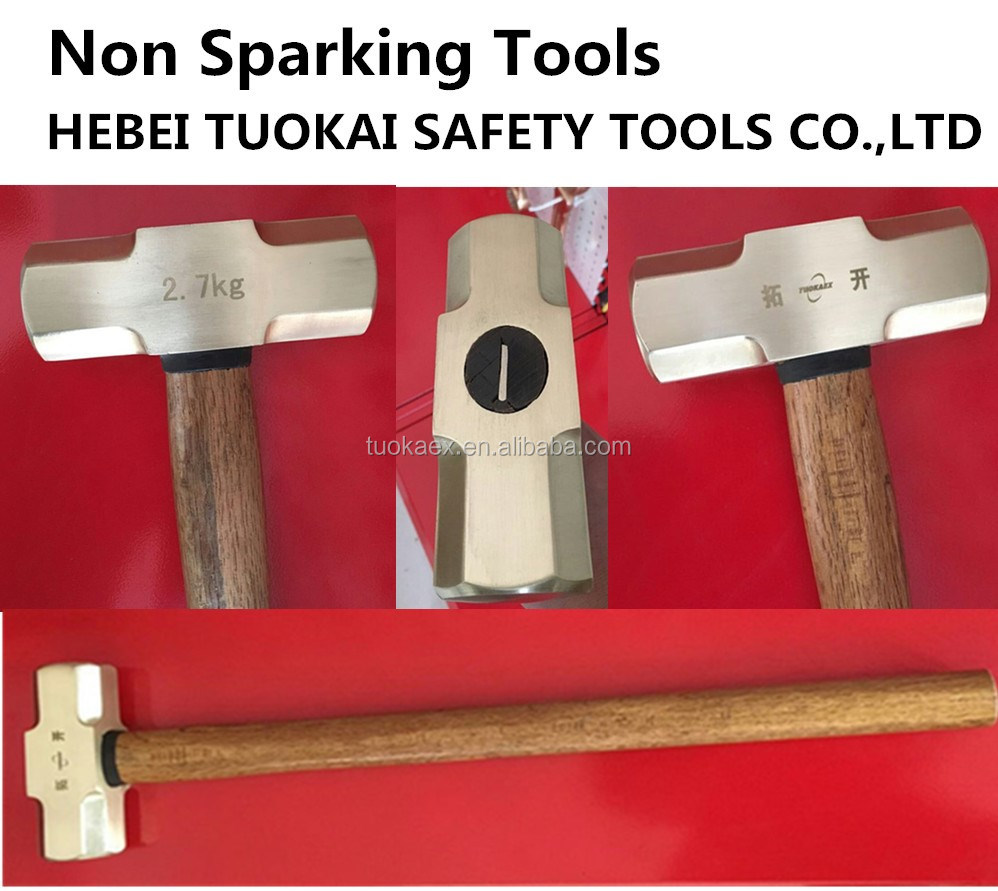

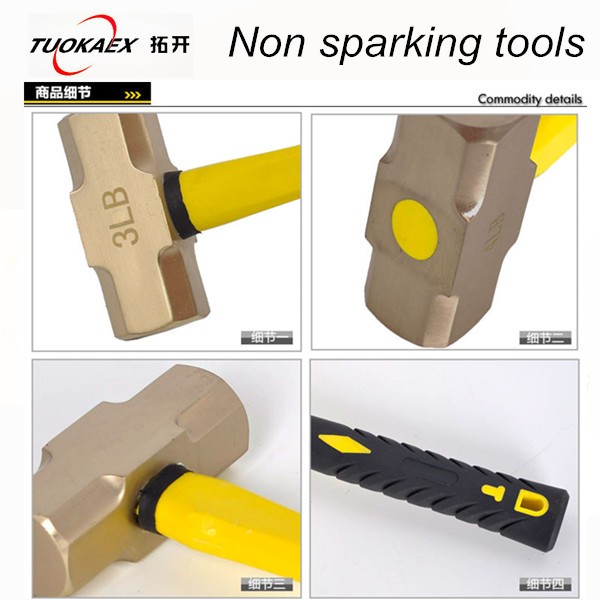

Explosion-Proof Sledge Hammers
These non-sparking sledge hammers are engineered specifically for high-risk industrial environments where flammable vapors, liquids, dusts, or residues are present. Constructed from high-quality non-ferrous alloys such as aluminum bronze or beryllium copper, these tools effectively eliminate the risk of mechanical sparks during impact. They are an essential safety requirement for professionals in the oil and gas, mining, and chemical processing sectors.
Technical Specifications
Certifications
ISO 9001:2008
- Material Composition
- Aluminum BronzeBeryllium Copper
- Manufacturing Process
- Precision casting
- Handle Material
- Wood
Dimensions and Weight
Size and Weight Specifications
| Model | Head Weight (g) | Length (mm) | Total Weight (g) |
|---|---|---|---|
| TK191-02 | 450 | 310 | 610 |
| TK191-04 | 1,000 | 400 | 1,300 |
| TK191-06 | 1,400 | 400 | 1,700 |
| TK191-08 | 1,500 | 400 | 1,800 |
| TK191-10 | 1,800 | 400 | 2,100 |
| TK191-12 | 2,000 | 400 | 2,300 |
| TK191-14 | 2,200 | 400 | 2,500 |
| TK191-16 | 2,500 | 700 | 3,210 |
| TK191-18 | 2,700 | 700 | 3,410 |
| TK191-20 | 3,000 | 700 | 3,710 |
| TK191-22 | 3,600 | 700 | 4,310 |
| TK191-24 | 4,000 | 900 | 4,910 |
| TK191-26 | 4,500 | 900 | 5,410 |
| TK191-28 | 5,000 | 900 | 5,910 |
| TK191-30 | 5,400 | 900 | 6,310 |
| TK191-32 | 6,400 | 900 | 7,310 |
| TK191-34 | 7,200 | 900 | 8,110 |
| TK191-36 | 8,000 | 900 | 8,910 |
| TK191-38 | 8,200 | 900 | 9,110 |
| TK191-40 | 9,100 | 900 | 10,010 |
| TK191-42 | 9,900 | 900 | 10,810 |
