Technical Specifications
Overview
Compact Automation Control

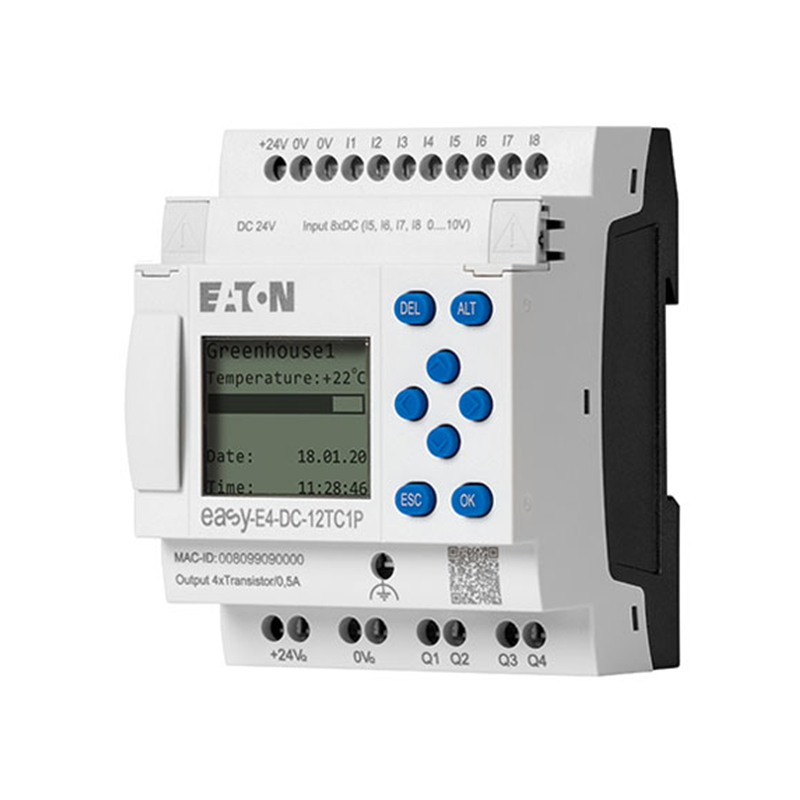

This nano programmable logic controller is designed for efficient and flexible control systems in both industrial and building applications. It offers a compact footprint while supporting significant expansion capabilities, allowing for up to 188 inputs/outputs within a single system. Users benefit from a user-friendly programming environment with support for four languages, including function block diagrams and structured text, making it ideal for a wide range of automation tasks.
Technical Specifications
- Digital Inputs
- 8 inputs
- Transistor Outputs
- 4 outputs
- Output Current Rating
- 0.5 A
- Input Voltage Range
- 5V to 30V
- Analog Input Support
- 0-10V on specific inputs (I5-I8)
Programming & Connectivity
- Supported Programming Languages
- FBDSTLDEDP
- Communication Interface
- Integrated Ethernet
System Capabilities
Expansion Capacity
11 modules
Max Expansion Modules
188 I/O
Max Total I/O
Mounting
DIN Rail
