Technical Specifications
Overview
Versatile Woodworking Solution

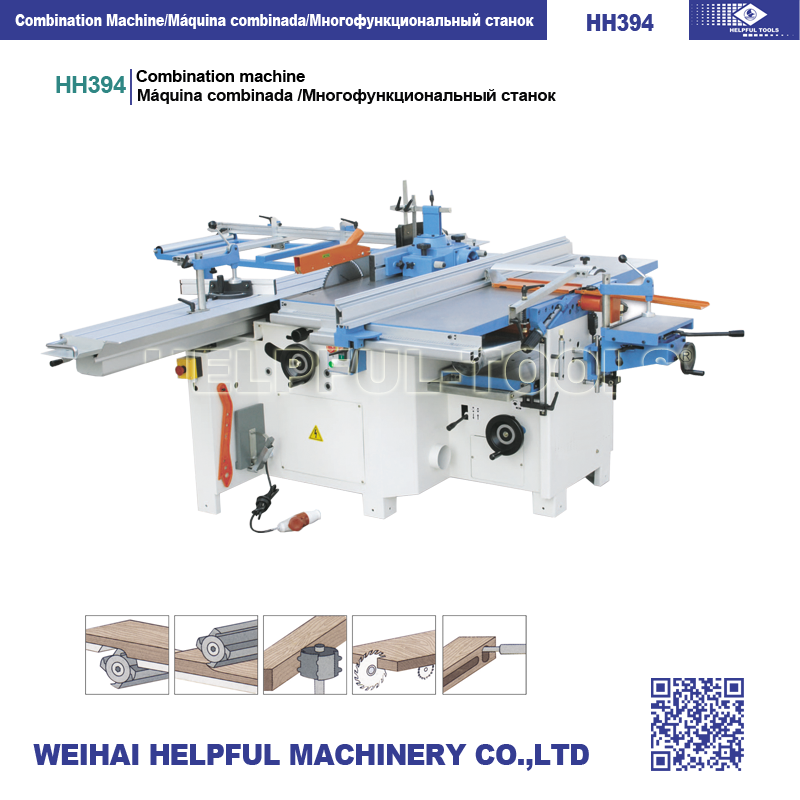

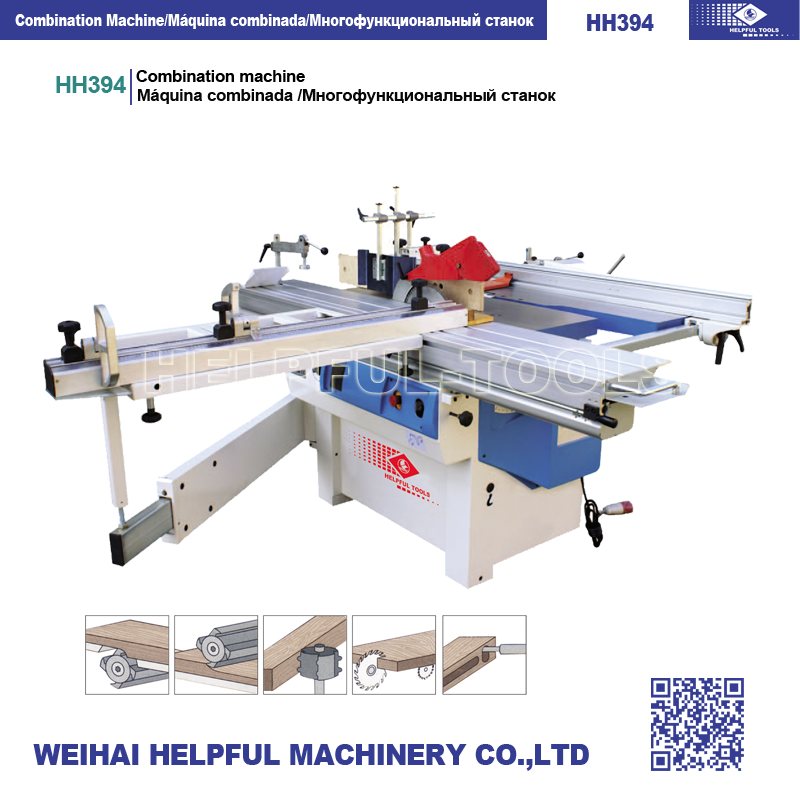

This multifunctional combination machine is designed to optimize workspace by integrating several essential woodworking functions into a single, robust unit. It offers professional-grade capabilities for sawing, planing, jointing, and routing, making it an ideal choice for small to medium-sized workshops. Engineered for precision and stability, this machine ensures accurate results across various wood processing tasks while maintaining a focus on user safety and efficiency.
- Model Number
- HH394
- Core Functions

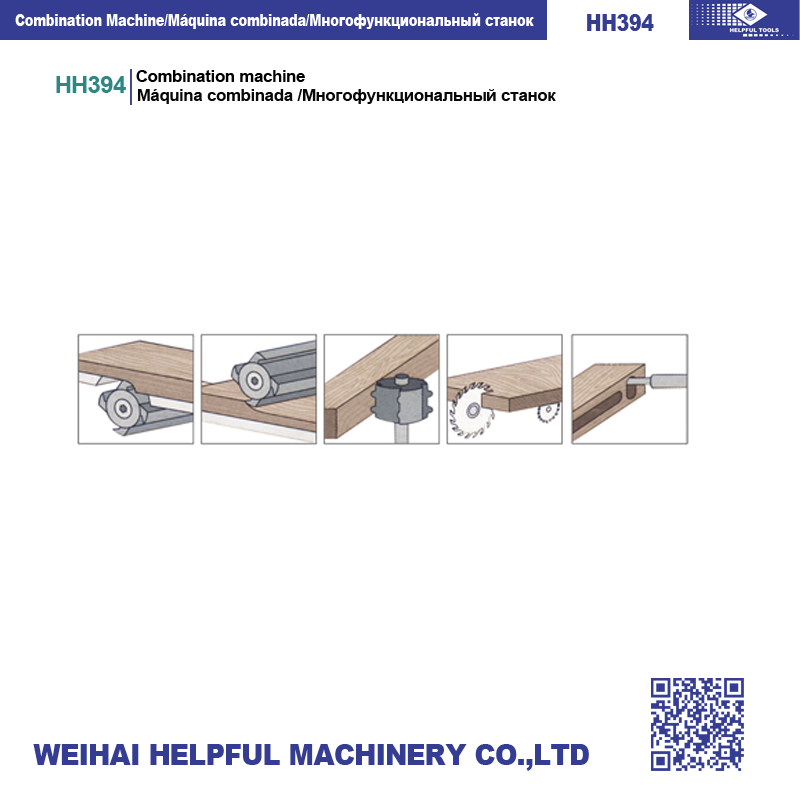

- SawingPlaningJointingRoutingMillingDrillingSlotting
Sawing Capabilities
Sawing Performance
2,200 mm
Max Cross-cut Width
880 mm
Rip Fence Cut Width
90 mm
Max Cut Height
- Saw Blade Diameter
- 305 mm
- Blade Tilt Range
- 0° to 45°
- Cut Height at 45°
- 45 mm
Planing & Thicknessing
- Thicknessing Range
- 6mm to 240mm
Spindle & Milling
Spindle Speed Options
- 1,750
- 3,500
- 6,700
Spindle Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 30 mm |
| Useful Length | 85 mm |
| Max Drilling Diameter | 16 mm |
Technical Specifications
Dust Hood Suction Diameters
| Operation | Hood Diameter |
|---|---|
| Planing/Thicknessing | 120 mm |
| Sawing/Milling | 100 mm |
Packing Size
- 2150 * 1560 * 1050 mm
- 2700 * 350 * 220 mm
- Total Motor Power
- 3.0 + 2.2 * 2 kw
- Net Weight
- 780 kgs
